Stihl MS 200 - Special Accessories; Cutting Attachment

57MS 200, MS 200 T

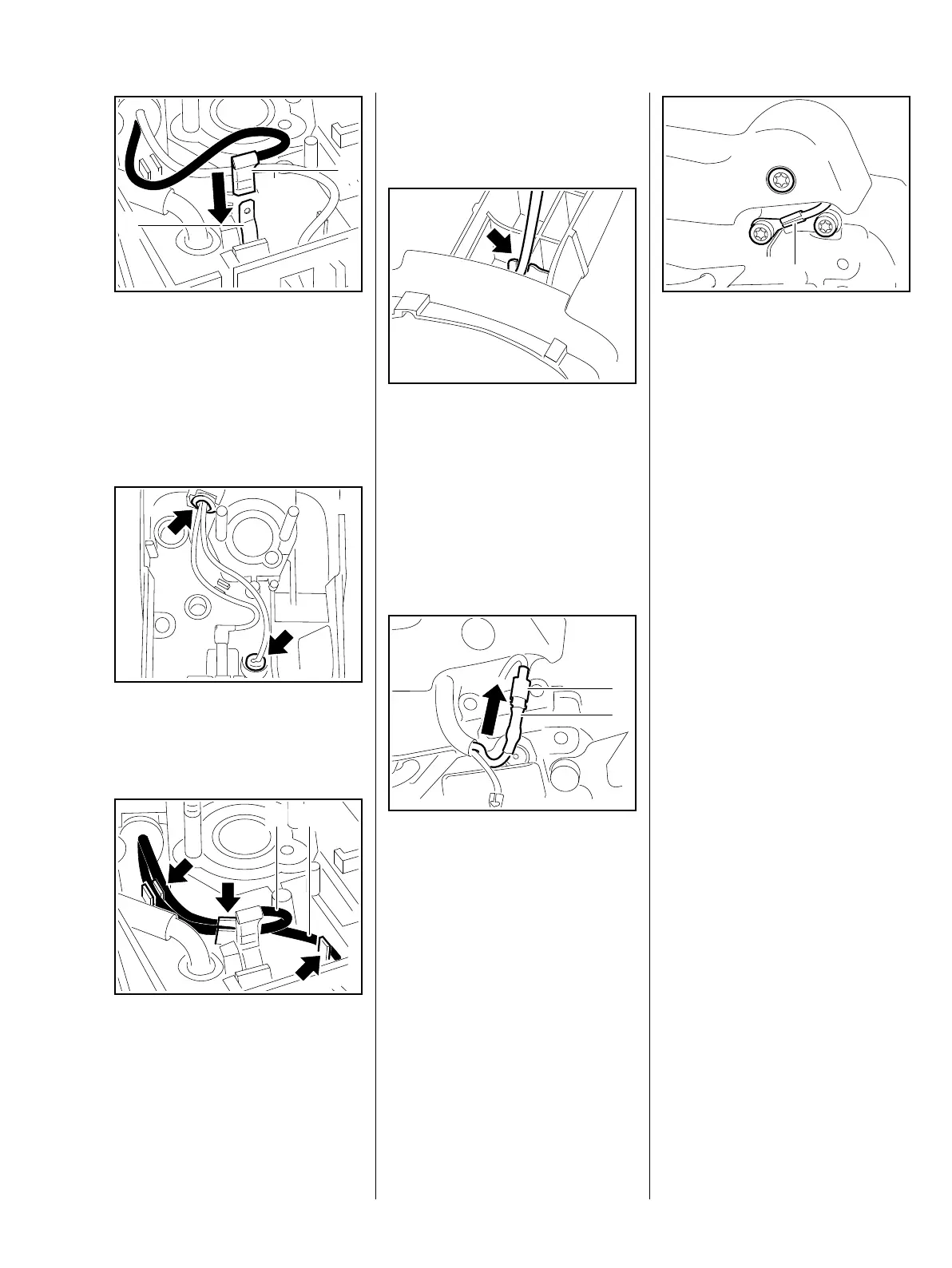

: Push the ground wire (1) on to
the contact spring (2) as far as
stop.
– Pull the short circuit wire into the
switch shaft and install the switch
shaft, b 12.1.1
: Fit the grommets (arrows) in the
holes and make sure they are
properly seated.
: Fit the short circuit wire (1) and
ground wire (2) in the guides
(arrows).
1
2
161RA190 TG161RA191 TG161RA192 TG
2 1
The wires must be pressed firmly
into the guies and fit snugly against
the handle housing.
: Press the wiring harness into the
guide (arrow) on the underside of
the housing.
– Install the handle housing,
b 12.4
The impulse hose must be fitted on
the nipple on the handle housing.
: Connect the wiring harness (1) to
the short circuit wire (2).
– Push the wiring harness into the
handle housing.
161RA193 TG161RA179 TG
1
2
The short circuit and ground wires
must be routed over the annular
buffer to ensure they are not
pinched between the annular buffer
and handle housing.
: Lift the handle housing slightly
and place annular buffer in
position. Fit the ground wire (1)
and insert the screws, b 11.2
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
– Check operation.
161RA194 TG
1
