92 MS 200, MS 200 T

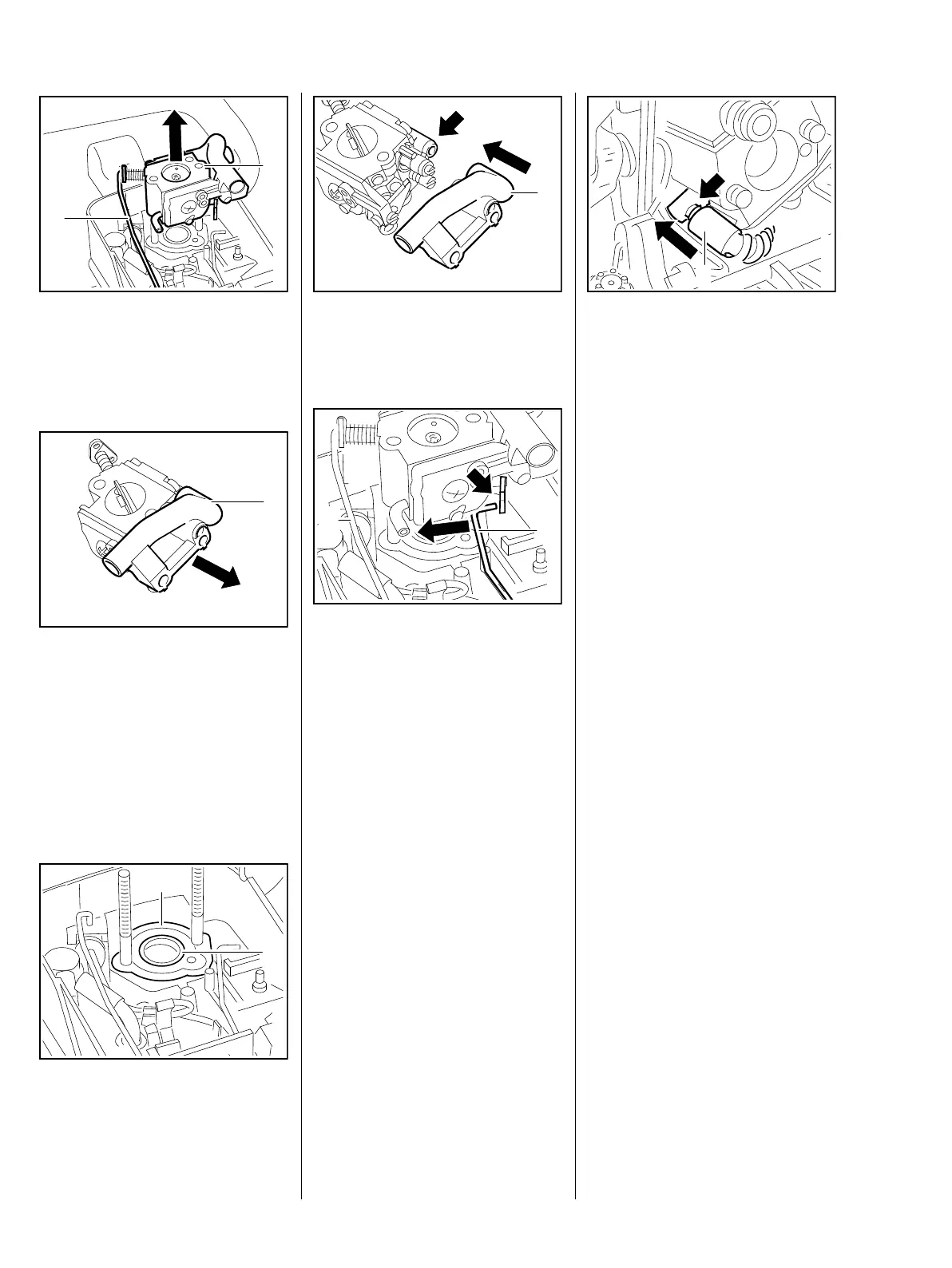

: Pull out the carburetor (1).
– Disconnect the choke rod (2)
from the carburetor.
: Pull off the grommet (1), check it
and replace if necessary.
– Check the carburetor and service
or replace if necessary.
– Check the choke and throttle rods
and replace if necessary,
b 12.3.1
Check that the sleeve (1) and
washer (2) are in place.
161RA309 TG
1
2
161RA310 TG
1
161RA068 TG
1
2
: Push the grommet (1) on to the
stub (arrow) and adjusting
screws as far as stop.
– Attach the choke rod (1) to the
carburetor, b 12.3.1
– Push the carburetor into position.
: Push the throttle rod (2) in
direction of tank vent and connect
it to the throttle lever (arrow).
161RA311 TG
1
161RA312 TG
2
1
: Push the fuel hose (1) on to the
stub (arrow).
– Install the filter base, b 14.1.1
Always use new self-locking nuts.
– Check operation.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
165RA332 TG
1
