Special equipment 7
Tilt barrier

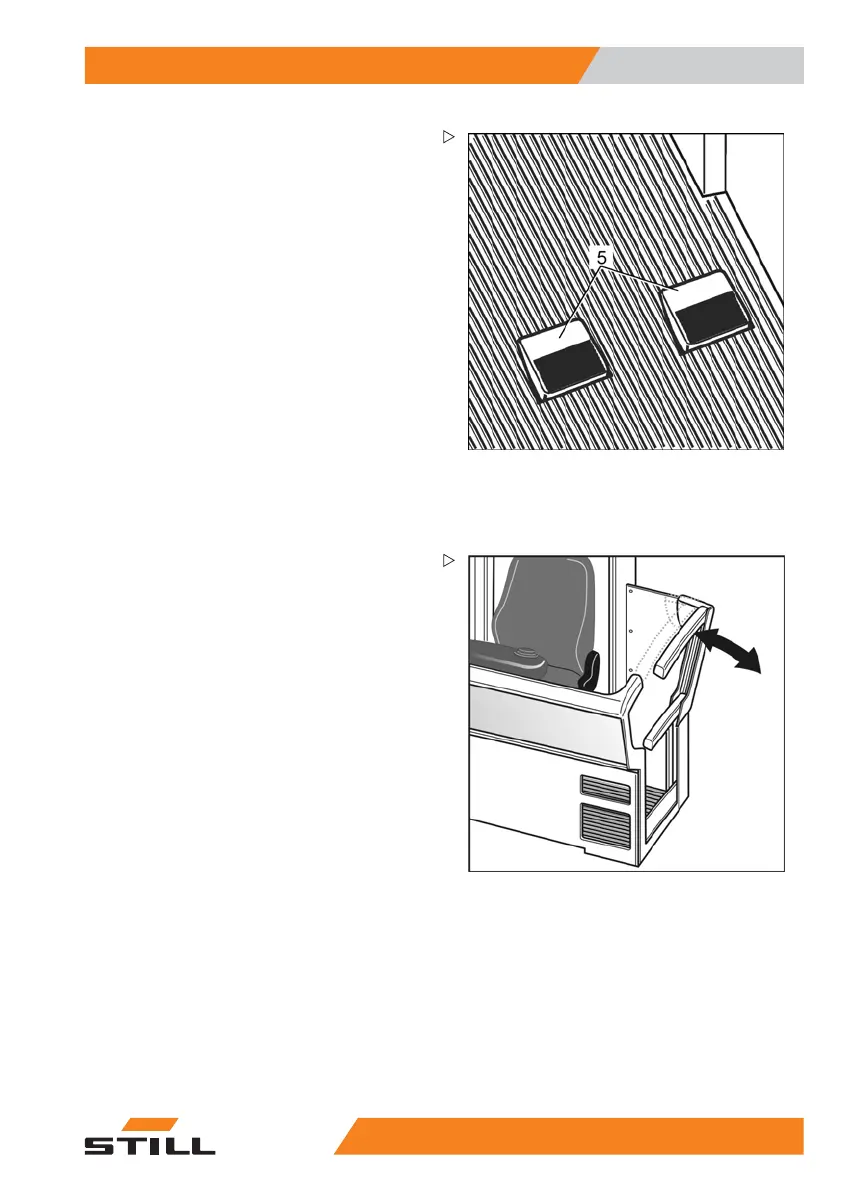

Foot switch
One or two additional foot switches (5) force
the passenger to adopt a safe position. If the
passenger releases one of the foot switches
during travel, the truck will stop immediately.
Further equipment
Depending on lift mast desi
gn and the cab
dimensions, protection ag
ainst contact can be
installed for the lift cyli
nder situated behind the
cab.
Protection against leaning out towards the
rack at the side may also be required. This
protection system can be installed on the
barrier and is moved with the barrier when it is
being opened.
Tilt barrier
Description
When in a reclined position, the tilt barrier
opens out to the side towards the racking.
This means that the distance to the racking
is reduced, which facilitates order picking.
If the operator releases the tilt barrier, it is
automatically returned to the initial position by
spring force.
The tilt barrier c
onsists essentially of a mobile
upper part, a fixed
bottom part and a hinge
connecting the up
per and bottom parts. For
safety reasons, t
he tilt barrier is unlocked only
under certain con
ditions.
Function
The barrier can only be opened if:
• The truck is in an aisle
• The barriers are closed
• The two-hand sensors are not actuated
• The operating levers for driving/hydraulics
are in the neutral position
• The foot switch is not actuated
• The driving speed is v < 0.1 km/h
The barrier will be locked if:
523
1 804 2502 EN - 11/2017 117
