Still MX-X Original Instructions

4 Operation
Picking up a load
Picking up a load

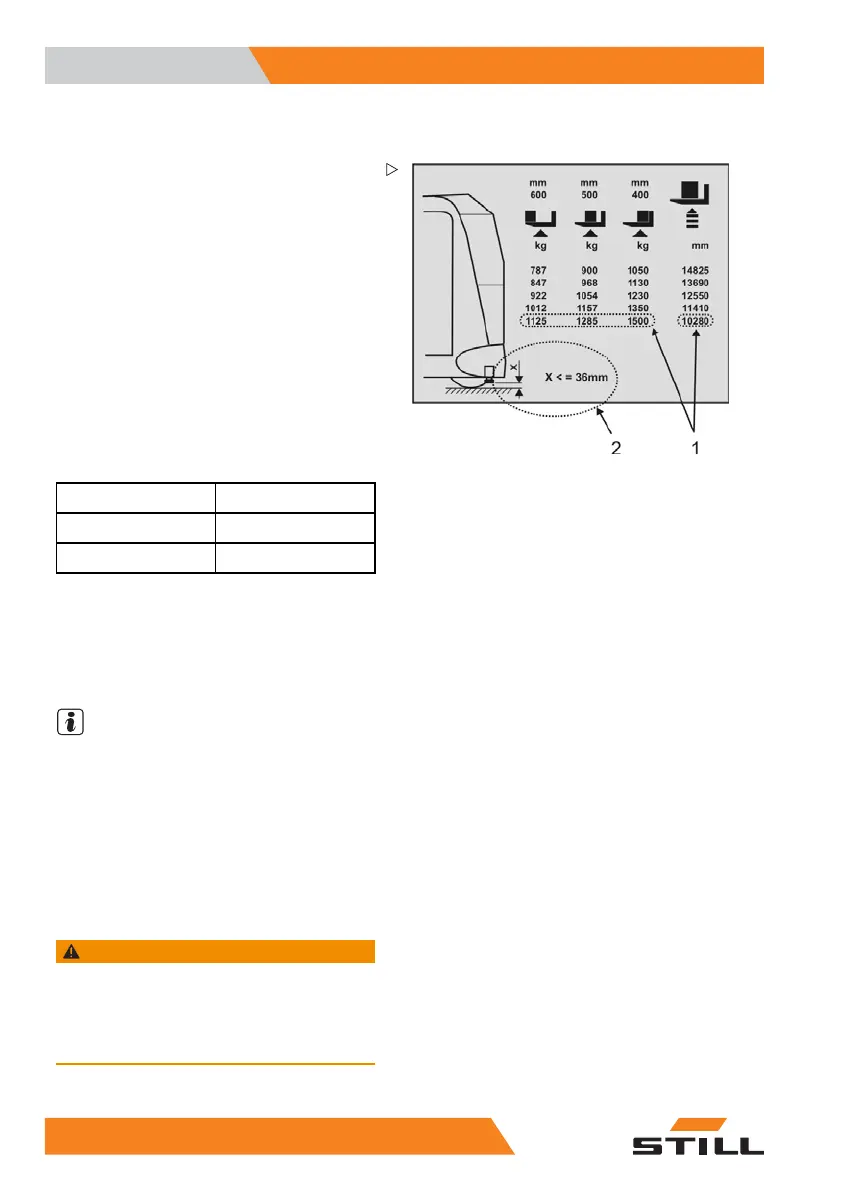

Load capacity diagram
Depending on the job, a load capacity diagram
may be generated and mounted in the cab. To
ensure that the stability of the industrial truck
is not jeopardised in any way, the load capac-
ity diagram and the load capacity restrictions
specified on this diagram for certain applica-
tion conditions must be observed.
This also applies to the increasing weight of
the commissioned goods.
Example for an industrial t
ruck with a lift height
of 10280 mm (1)
Distance between the load centre of gravity
and the fork back
400 mm
Max. load: 1500 kg
500 mm
Max. load: 1285 kg
600 mm
Max. load: 1125 kg
The load capacity of the truck decreases as
the lift height increases and the load centre of
gravity distance grows larger.
Thedataforthecurrentsituationmustbe
taken from the load capacity diagram.
NOTE
This industrial truck can also be equipped
with the intelligent load capacity diagram
as an option. Descriptions of this option
can be found in the chapter entitled Special
equipment.
The support screws may only be adjusted by
authorised service personnel. The setting
dimension X on the load capacity diagram
must be observed.
WARNING
Risk of accident
The specified setting dimension X (2) for the sup-
port screws must be checked every 6 months by
authorised service personnel and adjusted if ne-
cessary
70 5
231 804 2502 EN - 11/2017
