Operation 4
Operating devices
*Option

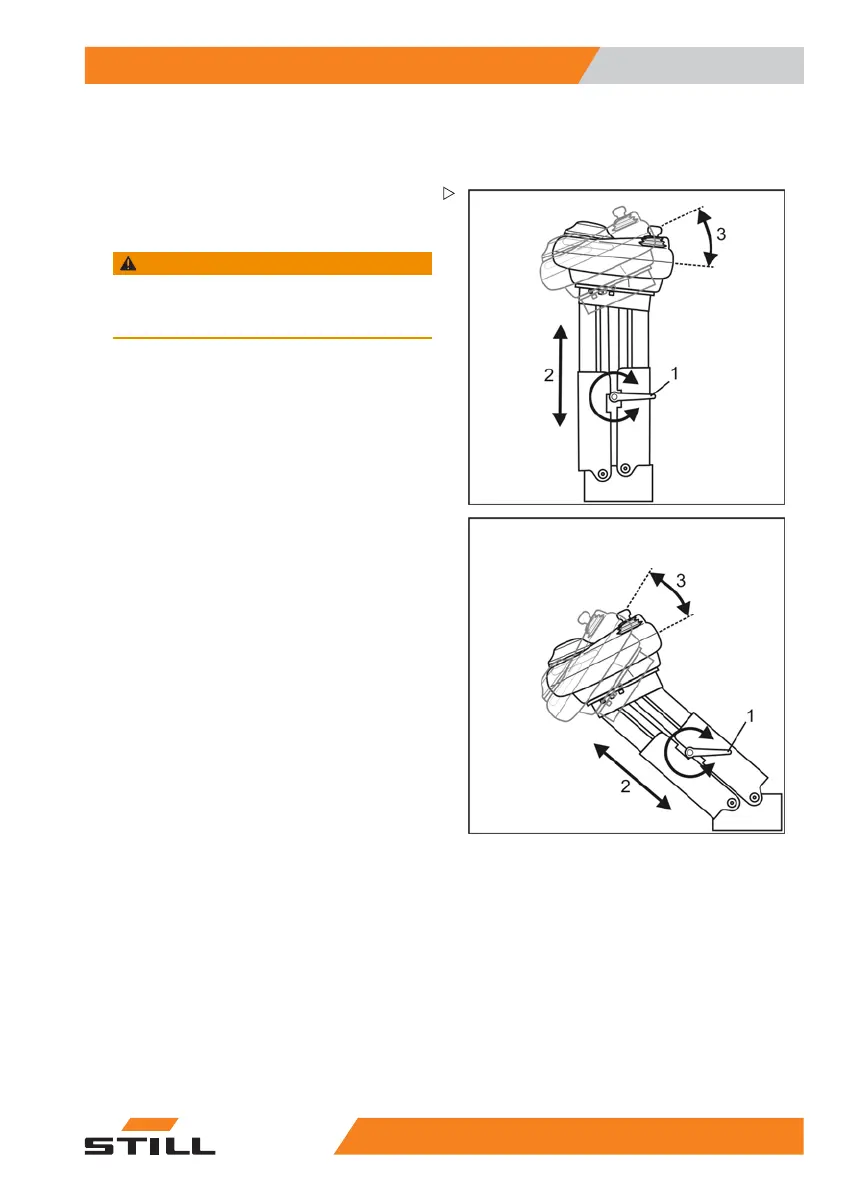

Adjusting the position of the operat-
ing panel
WARNING
The clamping device that is released for the set-
tings described below must be retightened before
starting work.
In order to be able to optimally adapt the
operating panel to driver requirements, the
panel can be adjusted by height, by tilting the
console and by tilting the operating panel. The
position of the clamp lever can be changed by
means of an integrated latching mechanism.
To do this, pull out the handle of the clamp
lever (1) on its axle, turn it to the required
position and allow it to engage again.
Adjustment
Release the clamp lever (1) by turning it to
the left. Keep hold of the operating panel with
the other hand while doing this. If the clamping
device comes loose, move the operating panel
into the required position with both hands
and hold it there. The setting is continuously
variable. Retighten the clamp lever.
– Adjust height (2).
– Adjust tilt (3).
523
1 804 2502 EN - 11/2017 59
