General information about fuses
General information about
fuses
If a fuse needs to be replaced:
• Disconnect the system by pulling out the
battery male connector
• Only use fuses that are ide
ntical in size and
type
• The correct fuse values can be found in the
truck-specific circuitry documents

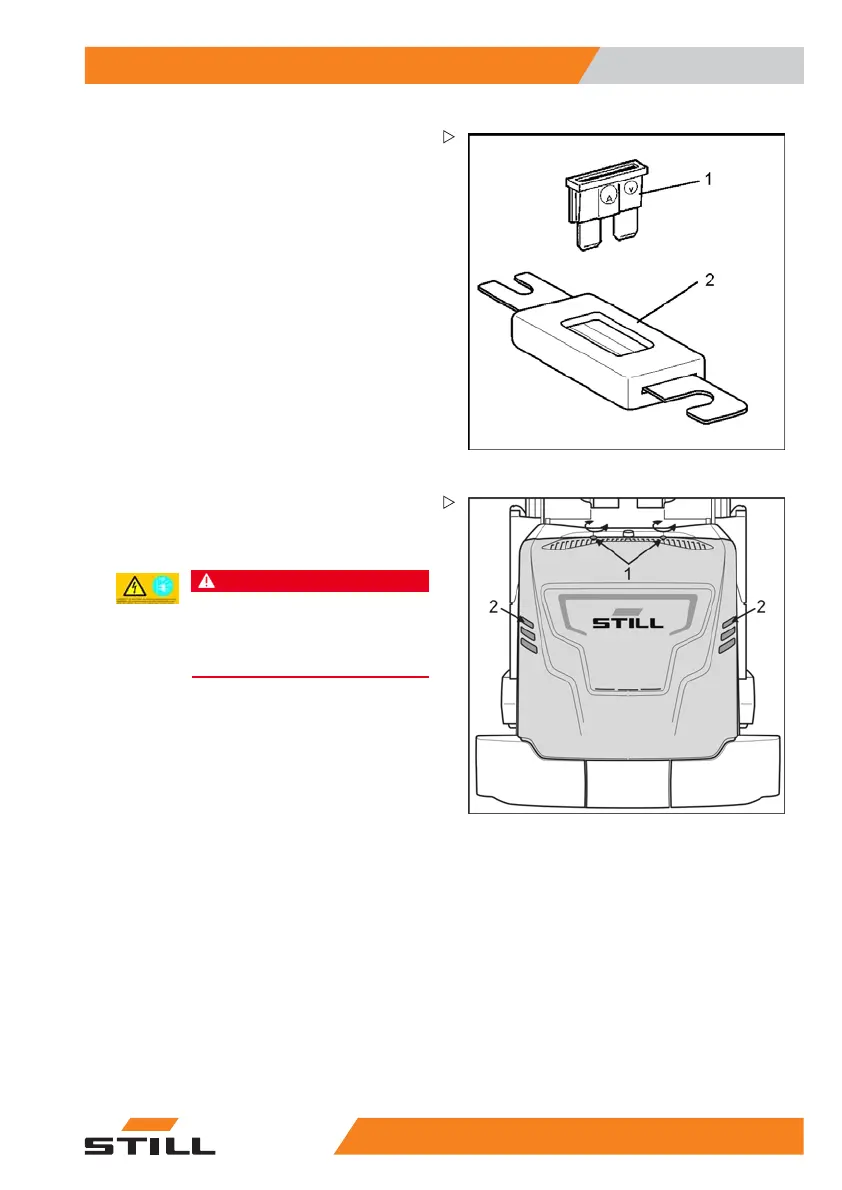

(1) Control current fuse
(2) Primary current fuse
Removing the control
compartment hood
DANGER
Risk of electric shock
Before the control compartment
hood is removed, the battery male
connector must be disconnected.
The fuses are installed in the control compart-
ment.
To gain access to the control compartment,
thehoodmustberemoved.
– Open the two screw plugs (1).
– Hold the hood at the ventilation openings
(2), lift it off and then place it to one side. The
hood is very lightweight and can therefore
be removed by hand without using any
tools.
Proceed in the reverse sequence to fit the
hood. Place the hood carefully in its guide and
latch and tighten the plastic screws until they
are hand-tight only.
