Operation 4
General commissioning
Replacing the battery
Battery replacement using forklift truck

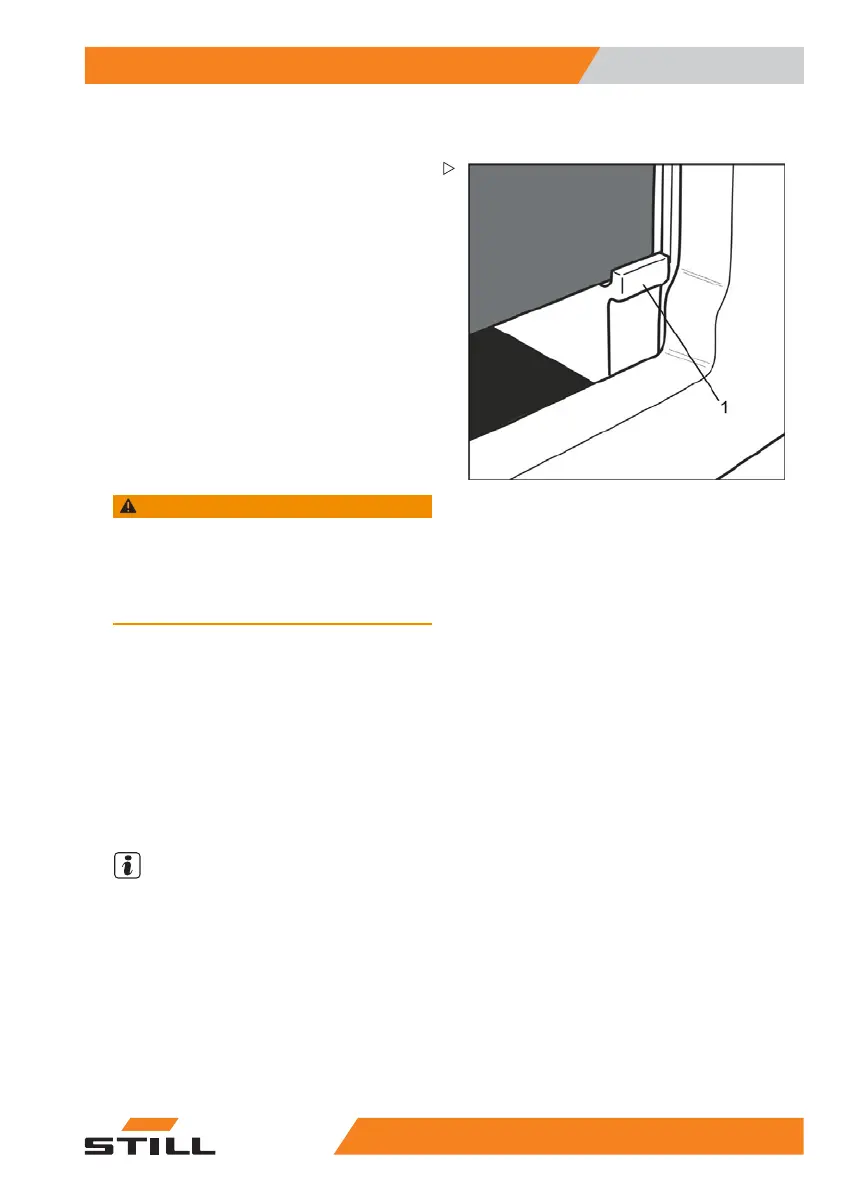

The battery rests in a recess (1) as standard.
The battery is intended to be replaced using a
truck. The truck used must be suitable for this
purpose.
• The fork must be of sufficien
t length for the
prevailing load centre of g
ravity.
• The load capacity must correspond to the
weight of the battery fitted.
• The external width of the fork must be
adjusted to the insertion opening.
• Adjust the fork tilt such t
hat the battery does
not come into contact with
the industrial
truck when the battery is r
emoved.
• The battery is not provided with a latch.
WARNING
Risk of accident, risk of crushing
Observe the information in the section entitled Safe
handling of the traction battery.
Make sure that all four corners of the battery are
within the recess.
Battery replacement with change frame
The industrial truck can be optionally equipped
with roller channels so that the battery can be
replaced using a crane or battery change
frame.
When using a battery change frame, observe
the corresponding operating instructions for
the change frame.
NOTE
If your industrial truck is equipped with roller
channels, the battery is secured in position
with a battery lock. Observe the information in
the section entitled Battery lock in particular.
