3 Overview
Operating panel
favourable deposit height when carrying out
order picking work. The auxiliary lift must
always remain in the lowest position when
travelling.
Outside the aisles (transfer aisle), the indus-
trial trucks can be driven freely with the load
lowered (transportation mode). The load must
be lifted only sufficiently high (clear of the
ground) that no part of the load touches the
ground.
Within the aisles, the narro
w aisle trucks are
guided mechanically or indu
ctively*.
The steering of the truck is realized by a freely
programmable controller (CAN BUS). All
movements (driving, lifting/lowering the cab
lift, lifting/lowering the auxiliary lift, swivelling
the fork, pushing the fork) are infinitely ad-
justable. Operating errors can be prevented to
a large extent by means of safety circuits.
*Option

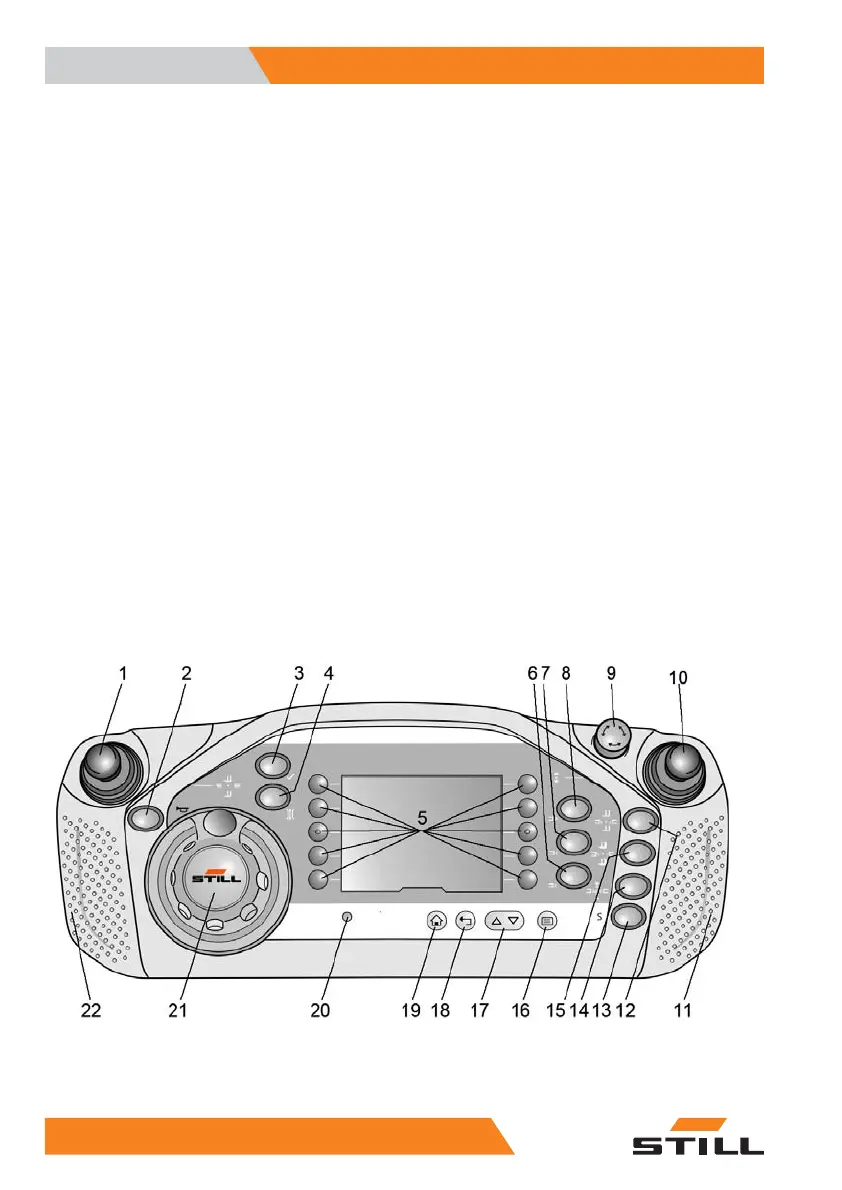

Operating panel
(1) Hydraulic operating lever (in conjunction
with the selection keys)
(2) Horn
28 5
231 804 2502 EN - 11/2017
