5.1.7 Dimensions
h4
h3
h1
a
w
d
b h2

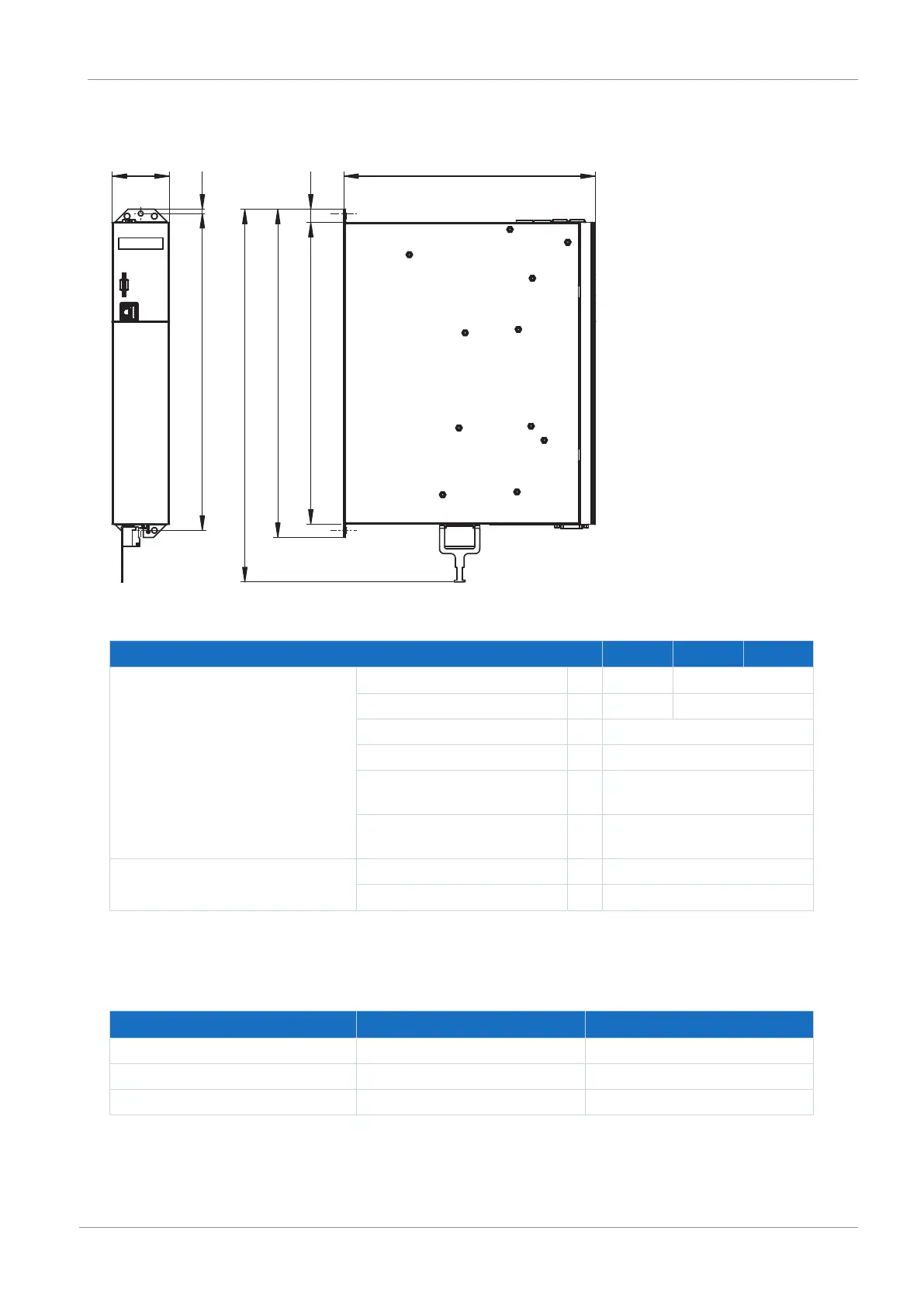

Fig.3: SC6 dimensional drawing
Dimension Size 0 Size 1 Size 2
Drive controller Width w 45 65
Depth d 265 286
Body height h1 343
Fastening clip height h2 15
Height incl.
fastening clips
h3 373
Total height incl.
shield connection
h4 423
Fastening holes (M5) Vertical distance a 360+2
Vertical distance to the upper edge b 5
Tab. 28: SC6 dimensions [mm]
5.1.8 Weight
Type Weight without packaging [g] Weight with packaging [g]
SC6A062 3600 5200
SC6A162 5300 6700
SC6A261 5200 6400
Tab. 29: SC6 weight [g]
