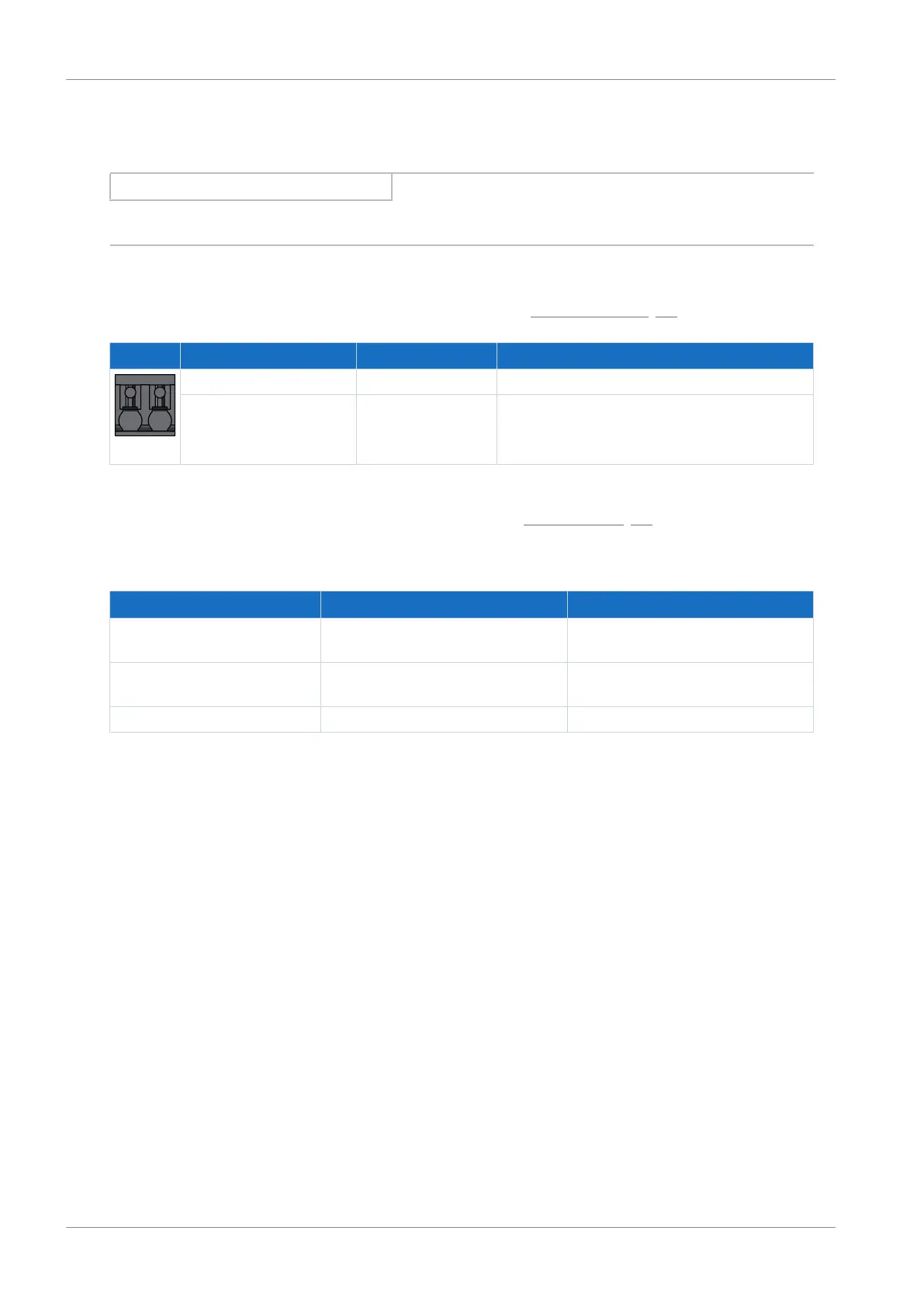

Page #52 background image
8 | Connection STOBER
52
03/2020 | ID 442793.03
8.4.2 X2A: Brake A
The brake of axis A is connected to X2A. All device types of the SC6 drive controller can control a 24V
DC
brake as standard.
Information
Note that brakes from other manufacturers may be connected only after consultation with STOBER.
Controllable brakes
Note the technical data of the brakes controllable at X2A; see the chapter Controllable brakes [}30].
Pin Designation Function
5 | 6
5 1BD1 Brake actuation
6 1BD2 Reference potential
Tab. 46: X2A connection description, brake A
For connecting wiring, observe the terminal specifications in the chapter BCF 3,81 180 SN [}85].
Cable requirements
Motor type Connection Size 0 to 2
Synchronous servo motor,
asynchronous motor
Without output choke 50m, shielded
Synchronous servo motor,
asynchronous motor
With output choke 100m, shielded
Lean motor Without output choke 50m, shielded
Tab. 47: Maximum cable length of the power cable [m]
