Stober SC6A062 Commissioning Instructions

STOBER 5 | Technical data
03/2020 | ID 442793.03
29
5.2.3 Dimensions
w
d2
d1
h2h1
h3
a1
a2 b2
b1

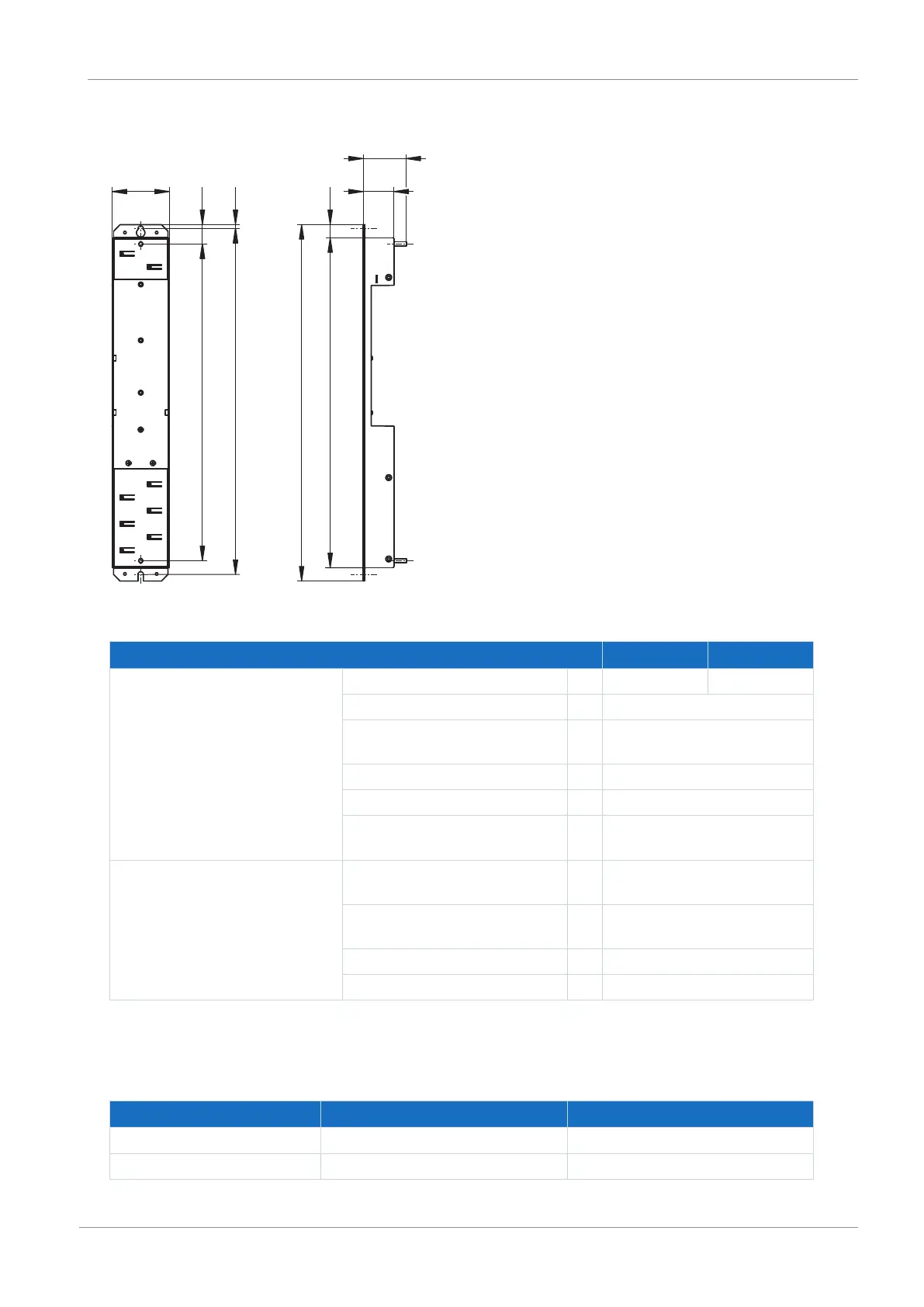

Fig.4: DL6B dimensional drawing
Dimension DL6B10 DL6B11
Quick DC-Link Width w 45 65
Depth d1 35
Depth incl.
attachment bolts
d2 49
Height h1 375
Fastening clip height h2 15
Height incl.
fastening clips
h3 405
Fastening holes Vertical distance
(wall mounting)
a1 393+2
Vertical distance
(module mounting)
a2 360
Vertical distance to the upper edge b1 4.5
Vertical distance to the upper edge b2 22
Tab. 34: DL6B dimensions [mm]
5.2.4 Weight
Type Weight without packaging [g] Weight with packaging [g]
DL6B10 440 480
DL6B11 560 600
Tab. 35: DL6B weight [g]
