7.3 Minimum clearances
Note the minimum clearances for installation below.
Drive controller
A
C C
B
D
35

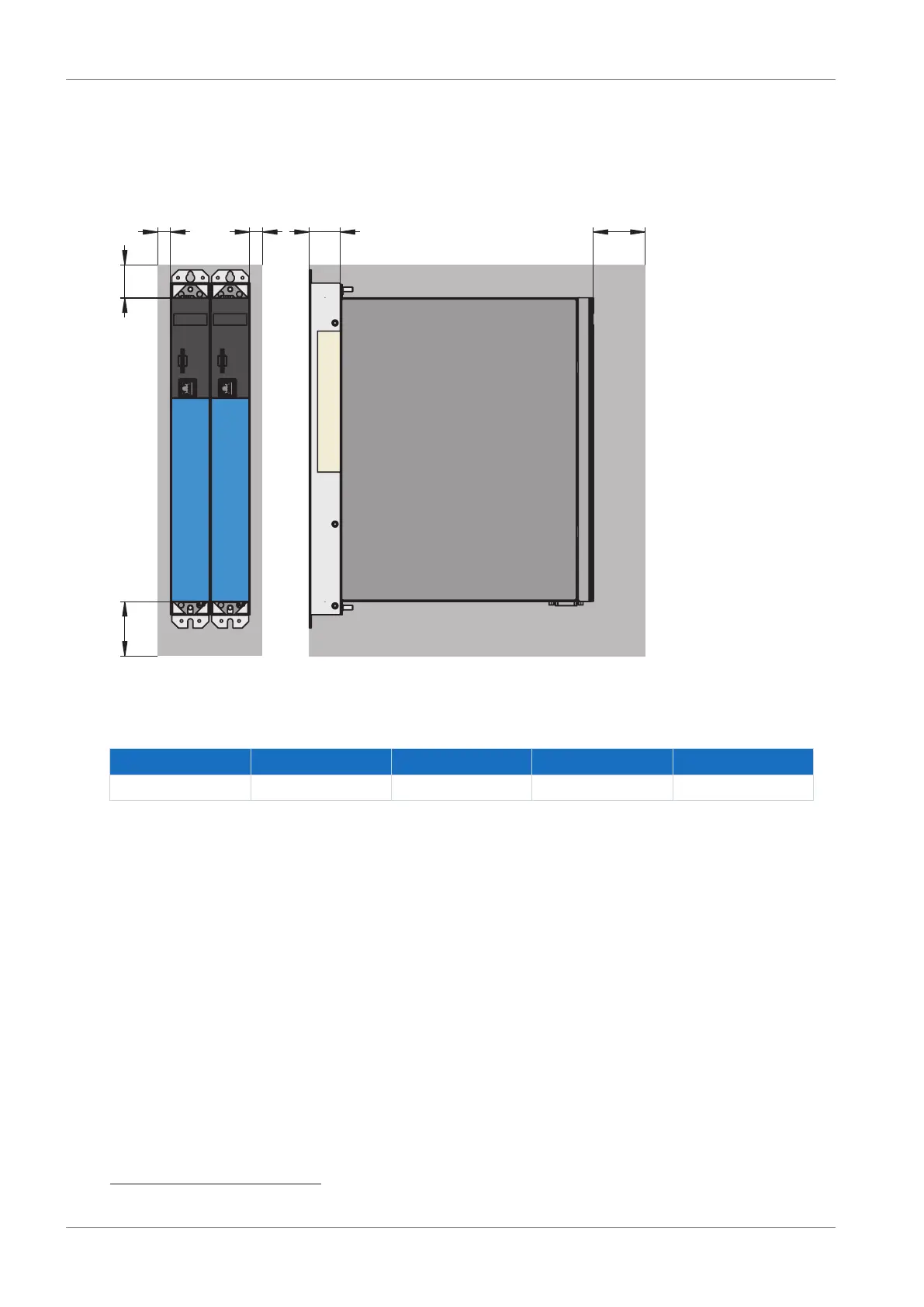

Fig.7: Minimum clearances
The specified dimensions relate to the outer edges of the drive controller.
Minimum clearance A (above) B (below) C (on the side) D (in front)
All sizes 100 200 5 50
3
Tab. 38: Minimum clearances [mm]
Chokes and filters
Avoid installation below drive controllers or supply modules. For installation in a control cabinet, a distance of
approximately 100mm to other neighboring components is recommended. This distance ensures proper heat dissipation
for chokes and filters.
Braking resistors
Avoid installation below drive controllers or supply modules. In order for heated air to flow out unimpeded, a minimum
clearance of approximately 200mm must be maintained in relation to neighboring components or walls and approximately
300mm must be maintained to components above or ceilings.
3
Minimum clearance to be taken into account for permanent connection of the X9 service interface
