STOBER 8 | Connection
03/2020 | ID 442793.03
53

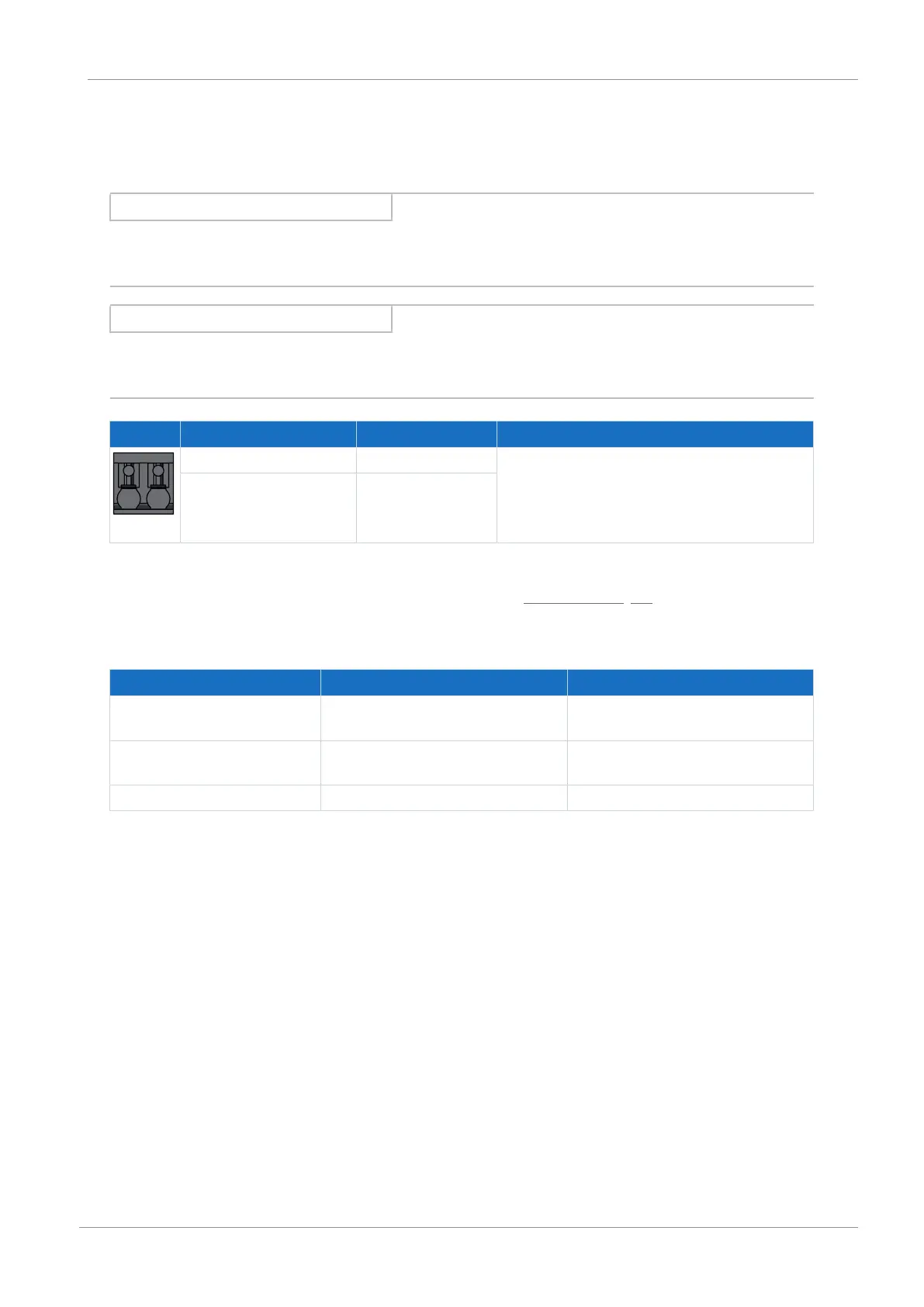

8.4.3 X2A: Motor temperature sensor A
The motor temperature sensor of axis A is connected to terminal X2A. All device types of the SC6 drive controller have
connections for PTC thermistors. You can connect a maximum of two PTC triplets to X2A.
Information
Note that the evaluation of the temperature sensor is always active. If operation without a temperature sensor is
permitted, the connections must be bridged on X2. Otherwise a fault is triggered when switching on the device.
Information
Note that a temperature sensor does not have to be connected to terminal X2 for a HIPERFACE DSL encoder. In this case,
the temperature sensor signal is transferred together with the encoder signal over connector X4.
Pin Designation Function
7 | 8
7 1TP1+ PTC connection
8 1TP2−
Tab. 48: X2A connection description, motor temperature sensor A
For connecting wiring, observe the terminal specifications in the chapter BCF 3,81 180 SN [}85].
Cable requirements
Motor type Connection Size 0 to 2
Synchronous servo motor,
asynchronous motor
Without output choke 50m, shielded
Synchronous servo motor,
asynchronous motor
With output choke 100m, shielded
Lean motor Without output choke 50m, shielded
Tab. 49: Maximum cable length of the power cable [m]
8.4.4 X2B: Brake B
The brake of axis B is connected to X2B for double-axis controllers. Only X2A is available for single-axis controllers. The
connection description of X2B matches the X2A description.
8.4.5 X2B: Motor temperature sensor B
The motor temperature sensor of axis B is connected to X2B for double-axis controllers. Only X2A is available for single-axis
controllers. The connection description of X2B matches the X2A description.
