SERVICING
8.2.2 Service instructions for front loader mountings
⚠ WARNING
Risk of serious injury due to the front loader breaking off!
In cases of strong wear of the catch hook, the front loader can break off of the mounting part and thus
cause serious injury to the driver or persons standing nearby.
Check the catch hooks regularly for wear.
Only mount the front loader on supports that are not worn or damaged.
Worn or damaged mounting parts must be repaired or replaced by an authorised specialised
workshop.
To check the wear of the catch hooks, use
the following wear dimensions:

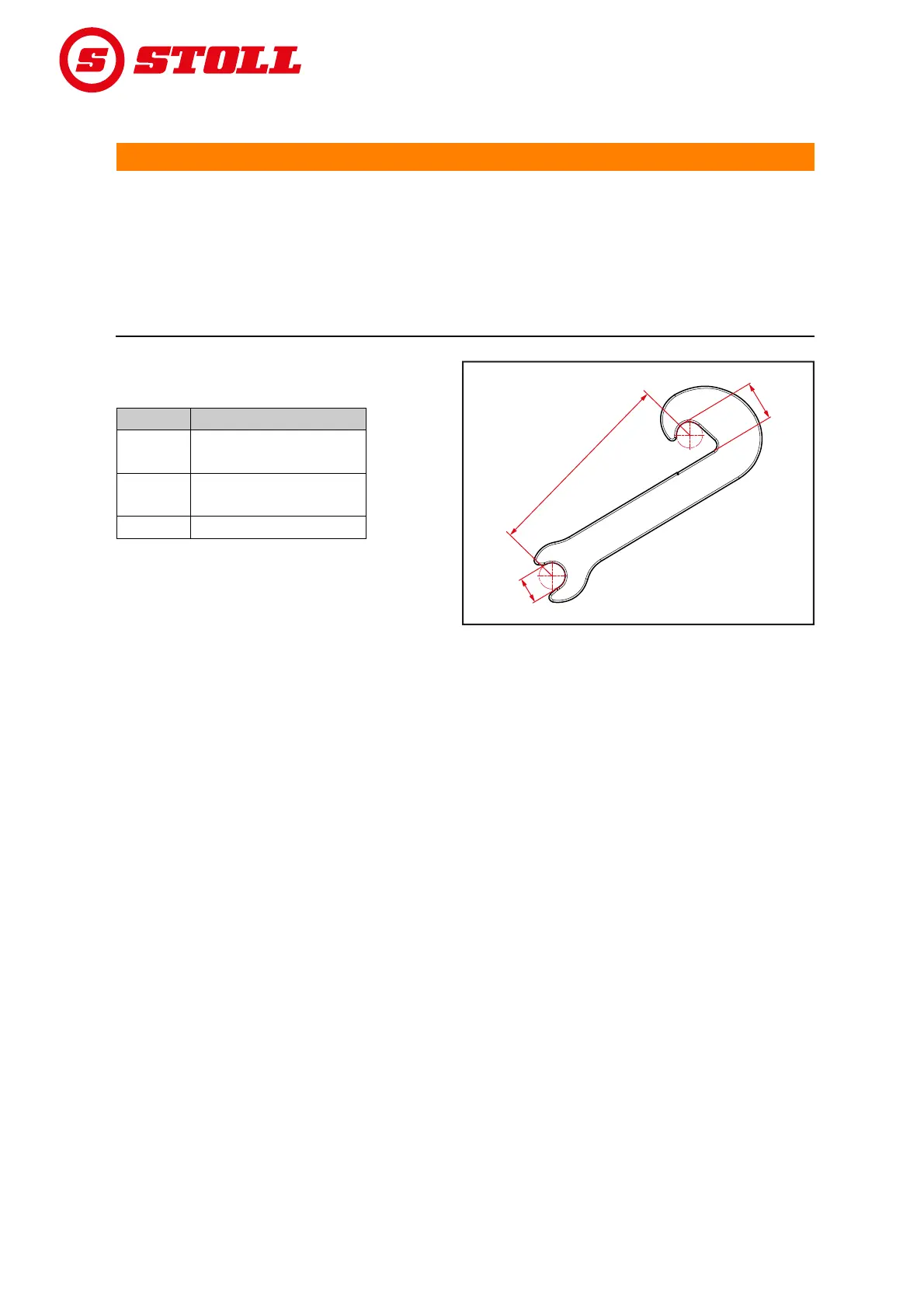

Fig. 93 Wear dimensions of the catch hook
X
L
D
B04B
Variable Dimension
L 300 mm
475 mm (FZ 100)
X Wear limit: 61 mm
Nominal size: 60 ±0.2 mm
D40mm
