OPERATION
6.4 Operating the implement locking mechanism
6.4.1 Operating the mechanical implement locking mechanism on Euro, SMS and Combi change
frames
⚠ WARNING
Risk of injury due to implements falling down!
The implement may fall down if the implement locking mechanism is open or not locked correctly.
This can cause serious injury to persons standing in the surrounding area.
Only actuate the implement locking mechanism when the implement is set down on the ground or
on a secure rack.
Always check that the implement is correctly locked.
⚠ CAUTION
Risk of crushing due to spring tension!
There is spring tension on the handle of the implement locking mechanism, which closes the locking
mechanism when the handle is lifted. Improper use can lead to injury to hands and fingers.
Always operate the handle with one hand and grab it in the middle.
Opening the implement locking mechanism:
(1) Lift the handle and pull out.
(2) Move the handle downwards until the nose
hooks onto the change frame.
The implement locking mechanism is open.
Closing the implement locking mechanism:
(1) Actuating the scooping function. To do this,
the front loader may not be lifted to a height
of more than 1.5 m.
The implement locking mechanism closes
automatically.

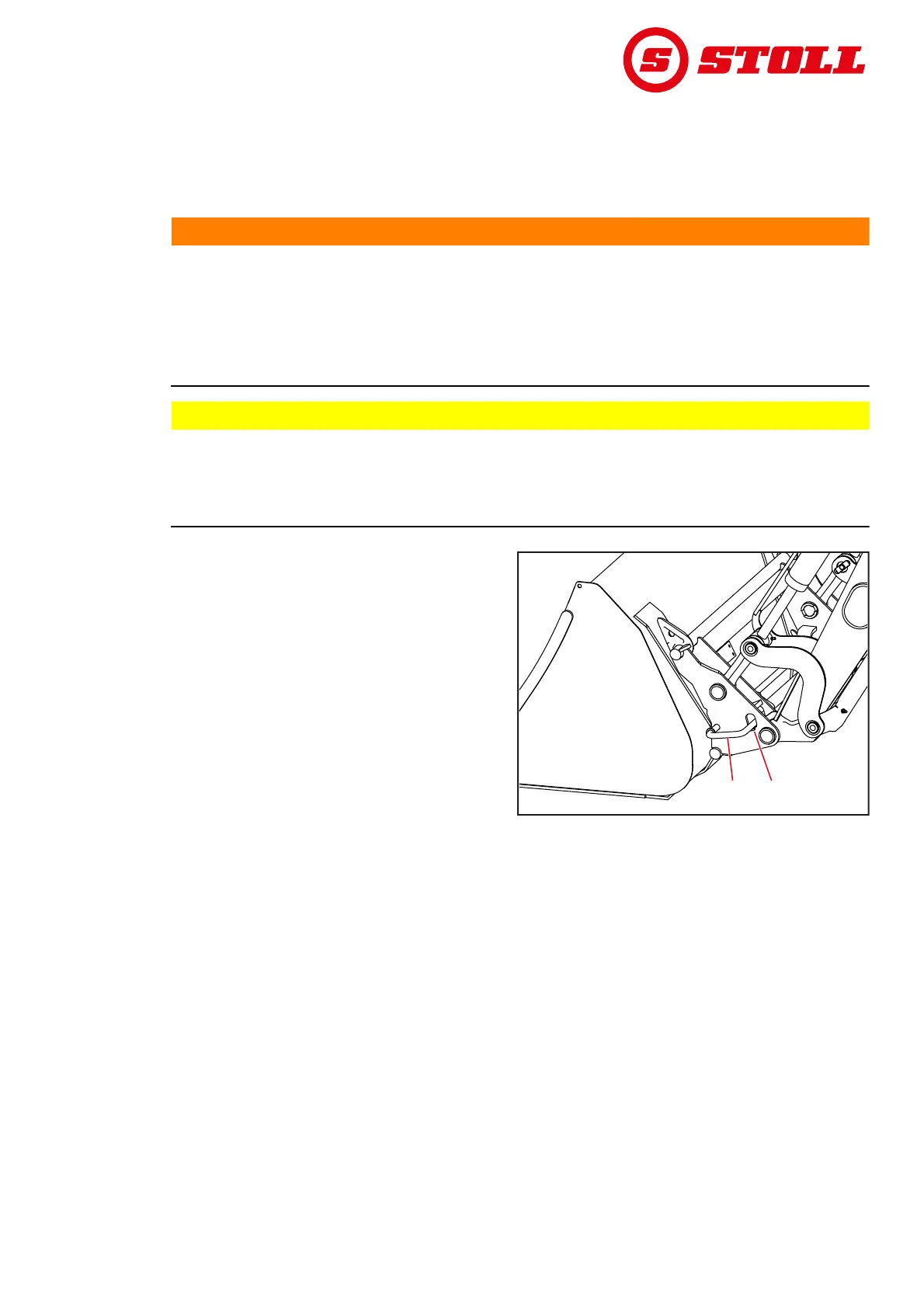

Fig. 66 Mechanical implement locking mechanism
Legend
1 Handle
2Nose
