START-UP
5.4.2 Adjusting the "Double locking mechanism" FZ 50 to 100 front loader locking mechanism
On the FZ 50 front loader, the double locking mechanism is installed as an option.
Adjusting the front loader locking mechanism:
Open-ended spanner 30 mm WAF
Ratchet ½" with extension, joint and socket
wrench (nut) 30 mm
(1) Open the front loader locking mechanism.
Move the lever upwards.
(2) Loosen the locknut with the open-ended
spanner.

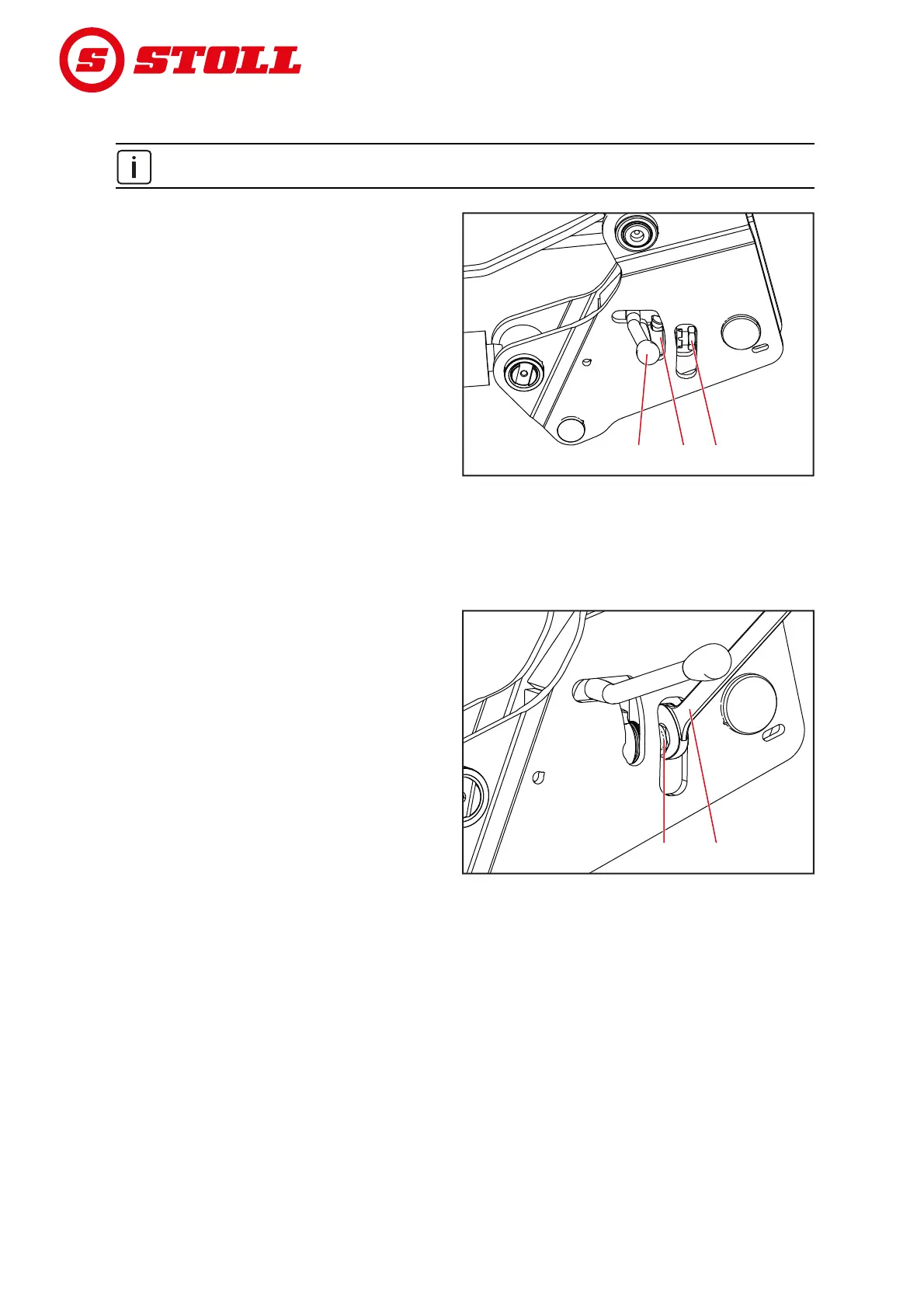

Fig. 45 Opening the front loader locking mechanism
Legend
1Lever
2 Turning lock
3Locknut
332211
B07Y
Fig. 46 Attaching the implement
Legend
1Locknut
2 Open-ended spanner
2211
B07Z
