START-UP
(2) Guide the open-ended spanner through the
guide slot of the lever.
(3) Loosen the locknut.
(4) Adjust the clamping wedge with the screw.
(5) Tighten the locknut.
(6) Check the front loader locking mechanism.
 Close and open the front loader locking
mechanism.
 Use the required manual force.
 If necessary, readjust the front loader
locking mechanism.
 The front loader locking mechanism is
adjusted.

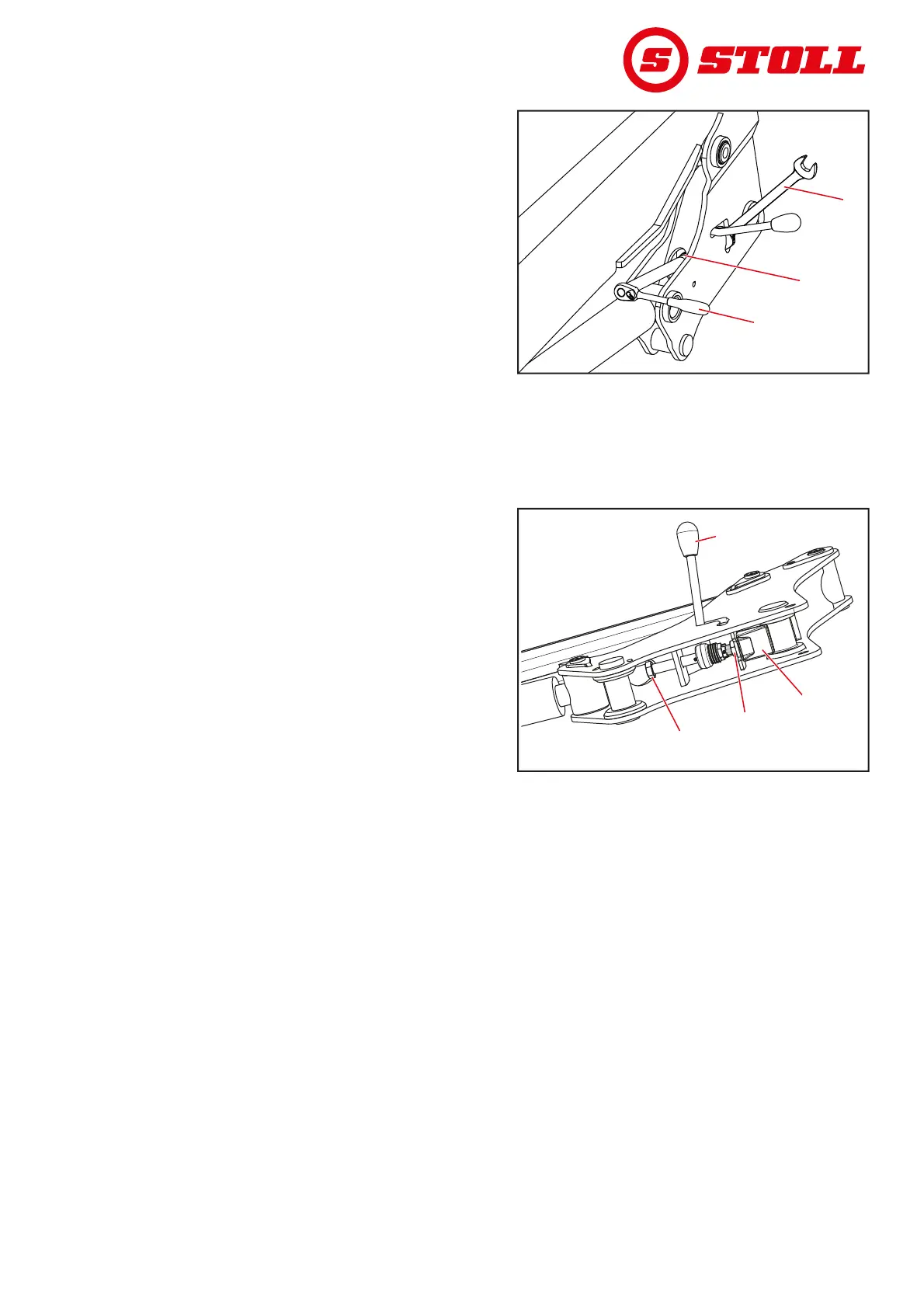

Fig. 43 Attaching the implement
Legend
1 Open-ended spanner
2 Guide slot
3 Ratchet
11
33
22
B06C
Fig. 44 View of the front loader locking mechanism
from below
Legend
1 Lever
2 Clamping wedge
3 Locknut
4Screw
44
3
3
2
2
1
1
B06D
