OPERATION
6.1.4 STOLL Pro Control
⚠ WARNING
Possible risk of injury due to the implement tipping over!
On FS front loaders, the float position for the implement may not be activated for the scooping and
dumping functions. This could cause the implement to tip over unintentionally to the rear. This may
result in serious accidents.
The activation of the float position must be ruled out through the assembly on FS front loaders.
If this is not the case, work with the front loader must be stopped immediately and the specialist
workshop must be contacted, to have the float position deactivated for the scooping and dumping
functions. The front loader may only be used again when the float position has been deactivated for
the scooping and dumping functions.
This single-lever control unit may only be
used on tractors with a cab.
The STOLL "Pro Control" operating lever is a
single-lever control unit with integrated buttons
as well as an integrated membrane keyboard.
The control of the operating lever is the same as
the basic controls in section 6.1.1 Basic controls
with levers except for the float position.
The assignment of the buttons is shown in the following table:
Buttons on the joystick for optional functions
Membrane keys

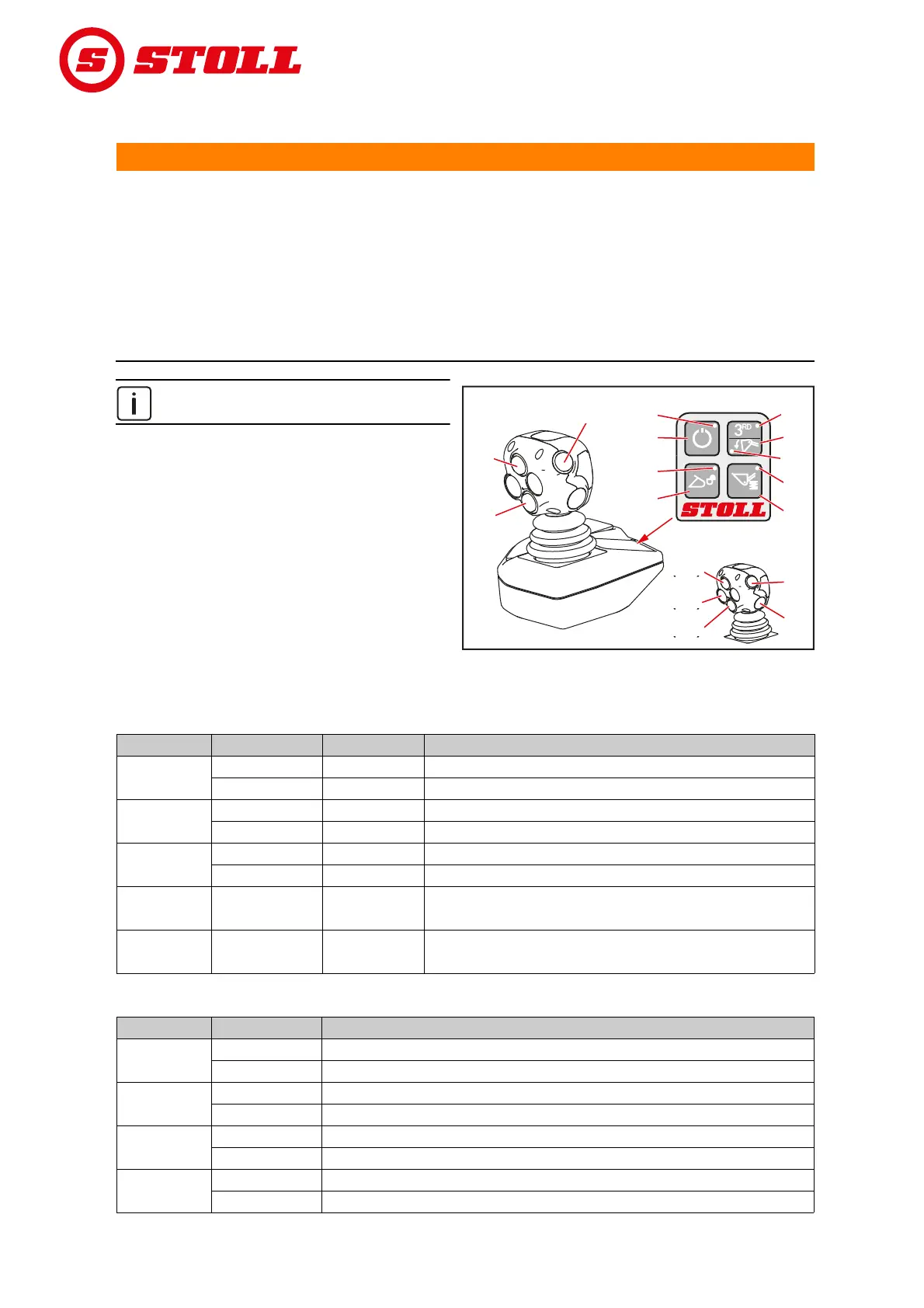

Fig. 59 STOLL Pro Control
B06A
T1T1
T3
T3
T2
T2
L1
L1
S1
S1
L3
L3
S3
S3
S2
S2
L2b
L2b
L4
L4
S4
S4
L2a
L2a
(T1)(T1)
T5
T5
(T2)
(T2)
T4
T4
(T3)(T3)
Button Operating lever LED Front loader option
T1
Yellow
To the right L2b on Quick emptying
Right/left L2a on 3rd control circuit
T2
Green
To the front Return-to-Level
To the right Implement float position
T3
Blue
To the front Lifting arm float position
Right/left 4th control circuit
T4
Red
Optional for functions
T5
Red
Optional for functions
Button LED Function
S1 L1 on Standby
L1 off Work mode
S2 L2a on 3rd control circuit
L2b on Quick emptying
S3 L3 flashing Implement locking mechanism activated
L3 off Implement locking mechanism closed
S4 L4 on Comfort Drive activated
L4 off Comfort Drive deactivated
