OPERATION
Operating lever with 3 buttons
Buttons D and E are intended for the additional tractor functions and therefore have a different
assignment depending on the model and the customer requirements.
Locking and unlocking the operating lever in
zero position
Lock the operating lever:
(1) Move the operating lever to the zero setting.
(2) Push in the locking bolt.
The red mark on the bolt is no longer visible.
The operating lever cannot be moved. The
road operation lock is activated.
Unlock the operating lever:
Pull out the locking bolt until the red mark is
visible.
The operating lever can be moved. The road
operation lock is deactivated.
Lock the operating lever in the zero
position when driving on roads to prevent
accidental actuation of the front loader!
Button Front loader Function Additional function with
changeover switch
A FS, FZ 3rd control circuit
FS-rapid
emptying
Rapid emptying 3rd control circuit 4.6 Rapid traverse
emptying (FS) and quick
emptying (FZ-L)
FZ-L Quick emptying 3rd control circuit
B FZ-L Return-To-Level -
C All 4th control circuit -

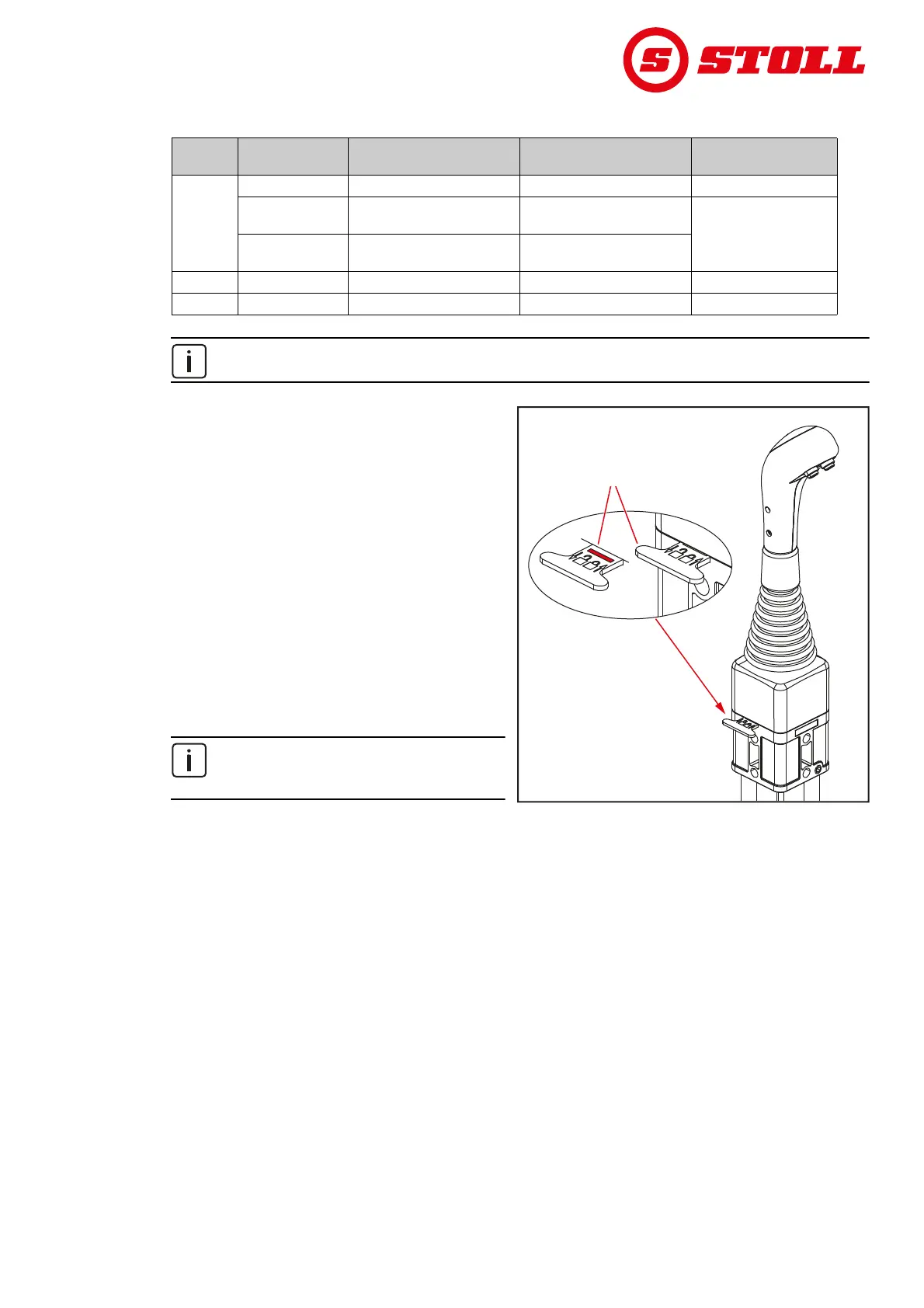

Fig. 58 Locking the operating lever
Legend
1 Locking bolt
