FUNCTIONS
4.9 Additional functions
4.9.1 Additional control circuits
⚠ WARNING
Risk of injury due to unexpected movement of the front loader or implement!
If there is an electrical malfunction, operating elements can be temporarily or permanently out of
function. As a result, it is possible that an unintended function is triggered instead of the selected
implement functions (see 3rd control circuit and 4th control circuit). The triggering of unwanted
functions can lead to unexpected movement of the front loader or implement and cause serious injuries.
Before use, check all of the front loader functions without a load.
In case of malfunction, stop working with the front loader immediately and contact the specialist
workshop.
For hydraulic functions of the implement, additional control circuits must be installed. The
corresponding hydraulic couplings are located on the change frame and are available as plug-in, screw-
in or multiple couplings.
3rd control circuit
With a switch valve for the 3rd control circuit,
hydraulic implement functions are enabled, e.g.
the actuation of a top loading grip.
To operate the 3rd control circuit,
see 6.1.6 Switch/changeover switch.

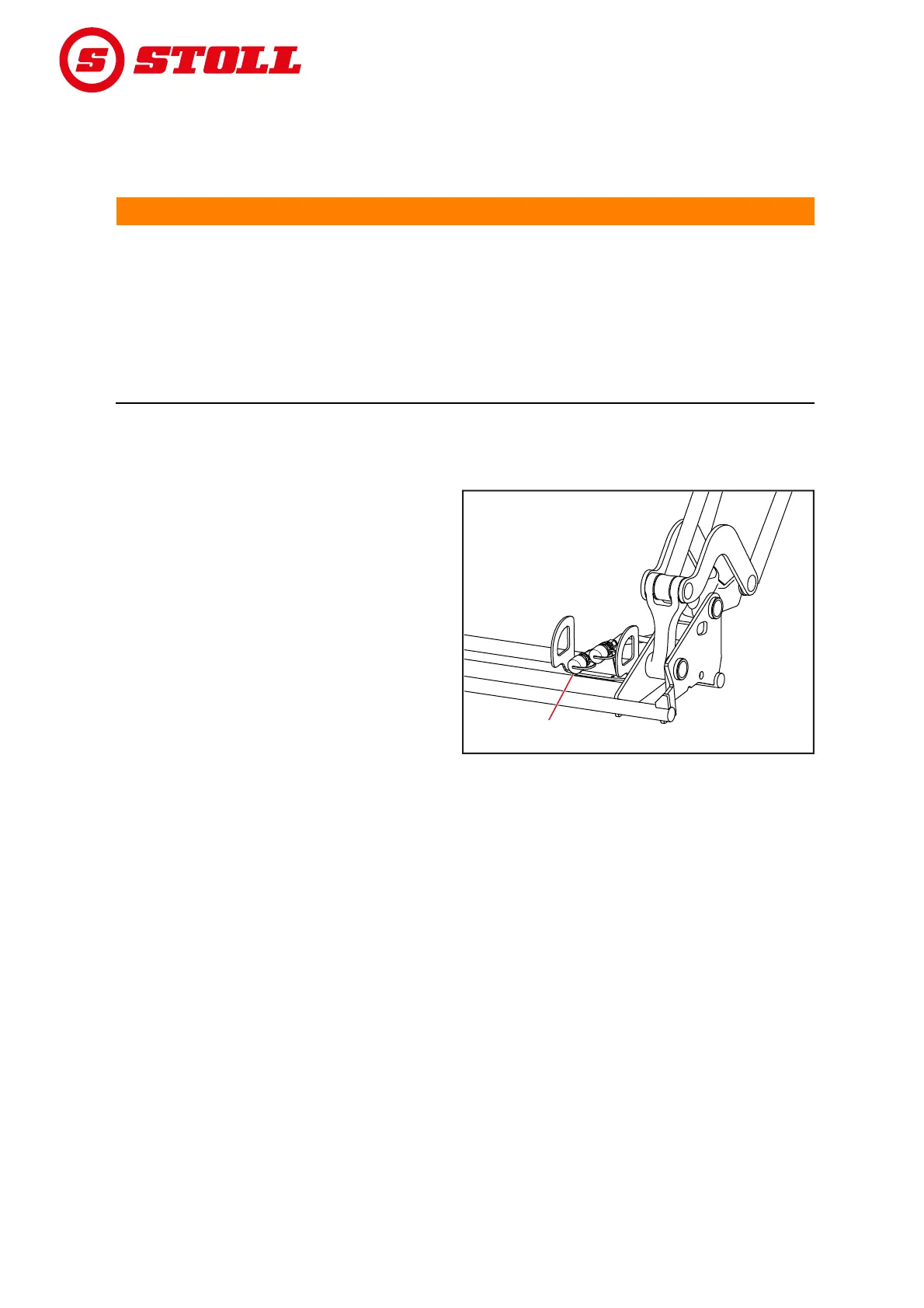

Fig. 33 Additional 3rd control circuit
Legend
1 Screw or plug-in coupling for the 3rd control circuit
