OPERATION
6.1.5 STOLL Trac Control
The STOLL "Trac Control" operating lever is a
handle with integrated buttons. It can replace the
tractor's own operating lever if it does not have
enough integrated buttons.
The control of the operating lever is the same as
the basic controls in section 6.1.1 Basic controls
with levers except for the float position.
The assignment of the buttons is shown in the following table:
Buttons on the joystick for optional functions

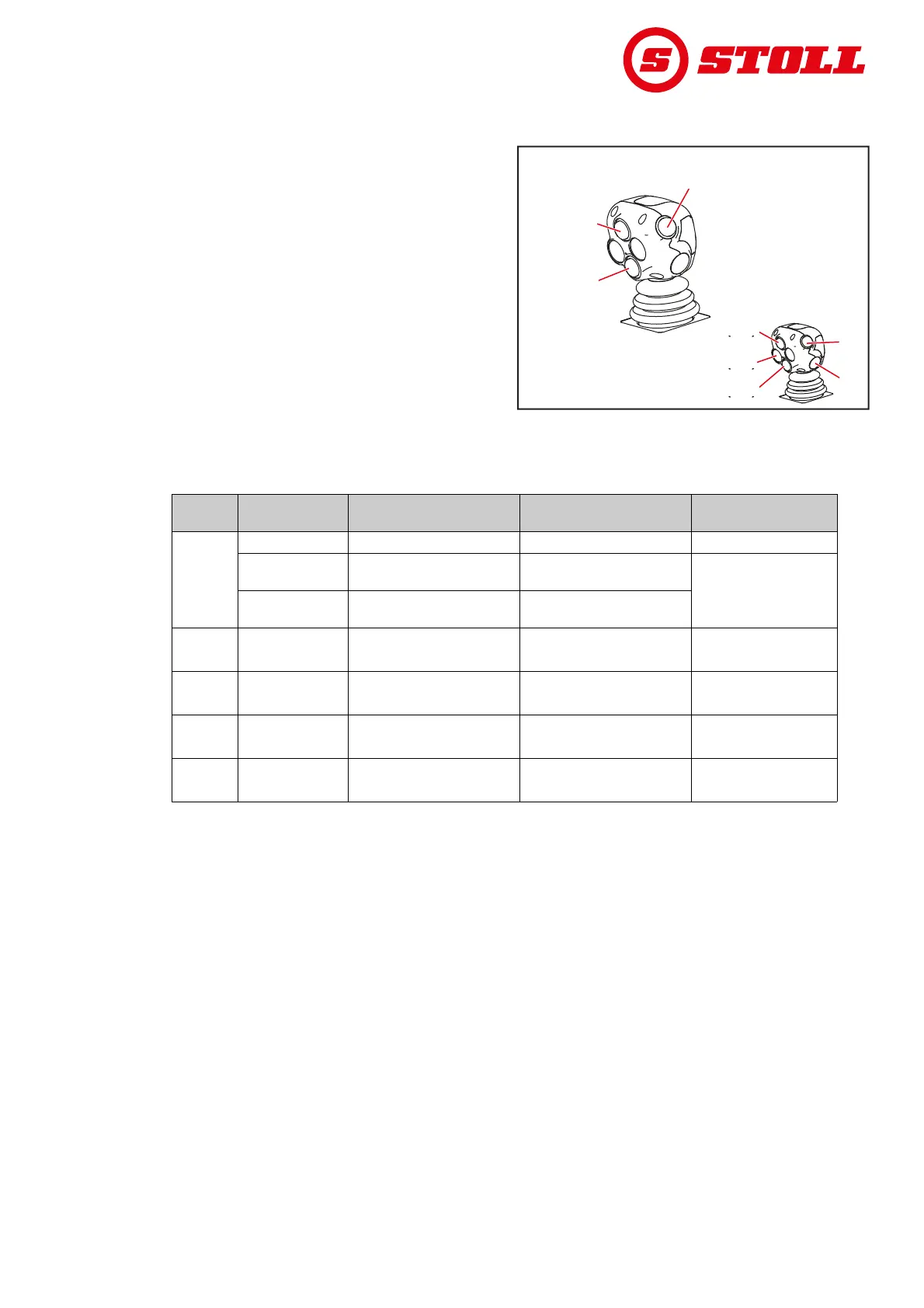

Fig. 60 STOLL Trac Control (3 buttons)
B069
T1T1
T3
T3
T2
T2
(T1)(T1)
T5
T5
(T2)
(T2)
T4
T4
(T3)(T3)
Button Front loader Function Additional function with
changeover switch
T1
Yell ow
FS, FZ 3rd control circuit
FS-rapid
emptying
Rapid emptying 3rd control circuit 4.6 Rapid traverse
emptying (FS) and quick
emptying (FZ-L)
FZ-L Quick emptying 3rd control circuit
T2
Green
FZ-L Return-to-Level -
T3
Blue
All 4th control circuit -
T4
Red
Optional for functions -
T5
Red
Optional for functions -
