OPERATION
6.5.1 Picking up implements with mechanical implement locking mechanism on Euro, SMS and
Combi change frames
⚠ WARNING
Risk of injury and material damage due to implements falling down!
The automatic locking mechanism only works up to a height of about 1.5 m. Implements not locked
correctly may fall down and cause damage to the surroundings as well as injuries.
 Always check that the implement is correctly locked.
⚠ CAUTION
Risk of crushing due to spring tension!
There is spring tension on the handle of the implement locking mechanism, which closes the locking
mechanism when the handle is lifted. Improper use can lead to injury to hands and fingers.
 Always operate the handle with one hand and grab it in the middle.
Mounting the implement:
(1) Open the implement locking mechanism
(see 6.4.1 Operating the mechanical
implement locking mechanism on Euro,
SMS and Combi change frames).
(2) Use the dumping function until the upper
cross bar of the change frame is positioned
under the hook of the implement.
(3) Drive up close to the implement.

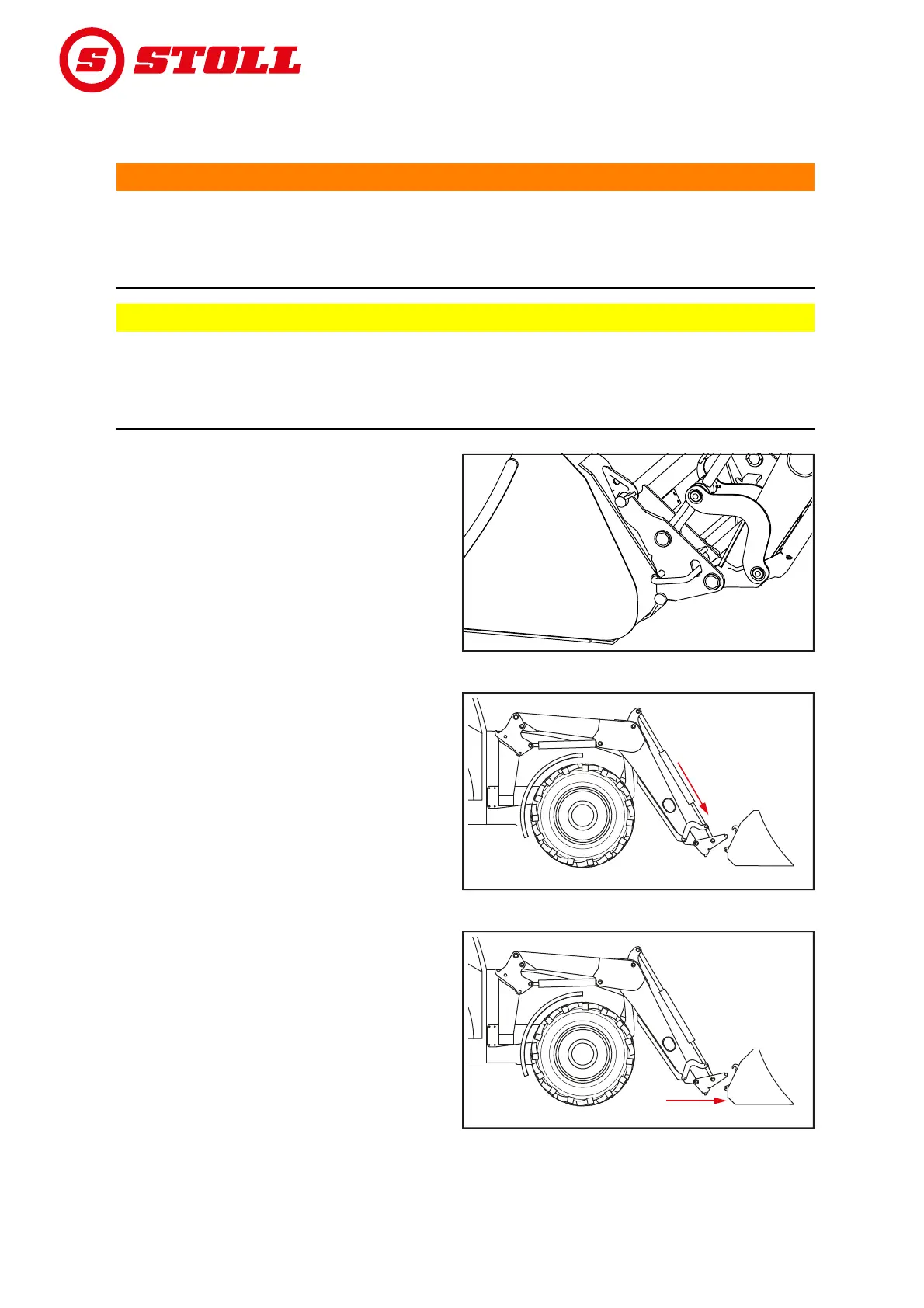

Fig. 73 Opening the implement locking mechanism
B08M
Fig. 74 Position the lifting arm
B086
Fig. 75 Driving up
B07O
