STRUCTURE
3.5 Change frame
The change frame is a fixed component of the front loader. The different types are designed and
adapted for the mounting of standardised implements of this type.
As a matter of principle, the following change frames are available for FS and FZ 8 to 80.1 front loaders:
 Euro change frame
 SMS change frame
 Euro-SMS Combi change frame
 Euro-Alö
3
Combi change frame
 Euro-FR Combi change frame
 Skid-steer change frame
The basic equipment of the change frames includes a mechanical implement locking mechanism,
however, a hydraulic implement locking mechanism can be installed as an option (see 4.1 Implement
locking mechanism).
For FZ 100 front loaders, there is a reinforced Euro change frame, which is always equipped with
hydraulic implement locking.
The change frames will be presented without implements in the following.
3.5.1 Euro change frame
These change frames are installed on FS and
FZ 8 to 80.1 front loaders.
They are intended for mounting implements
complying with the Euro standard.
The implement cylinder serves to swivel the
change frame around its pivot point.
On the support, the couplings for a 3rd and
4th control circuit can be installed as an option
(see 4.9.1 Additional control circuits).

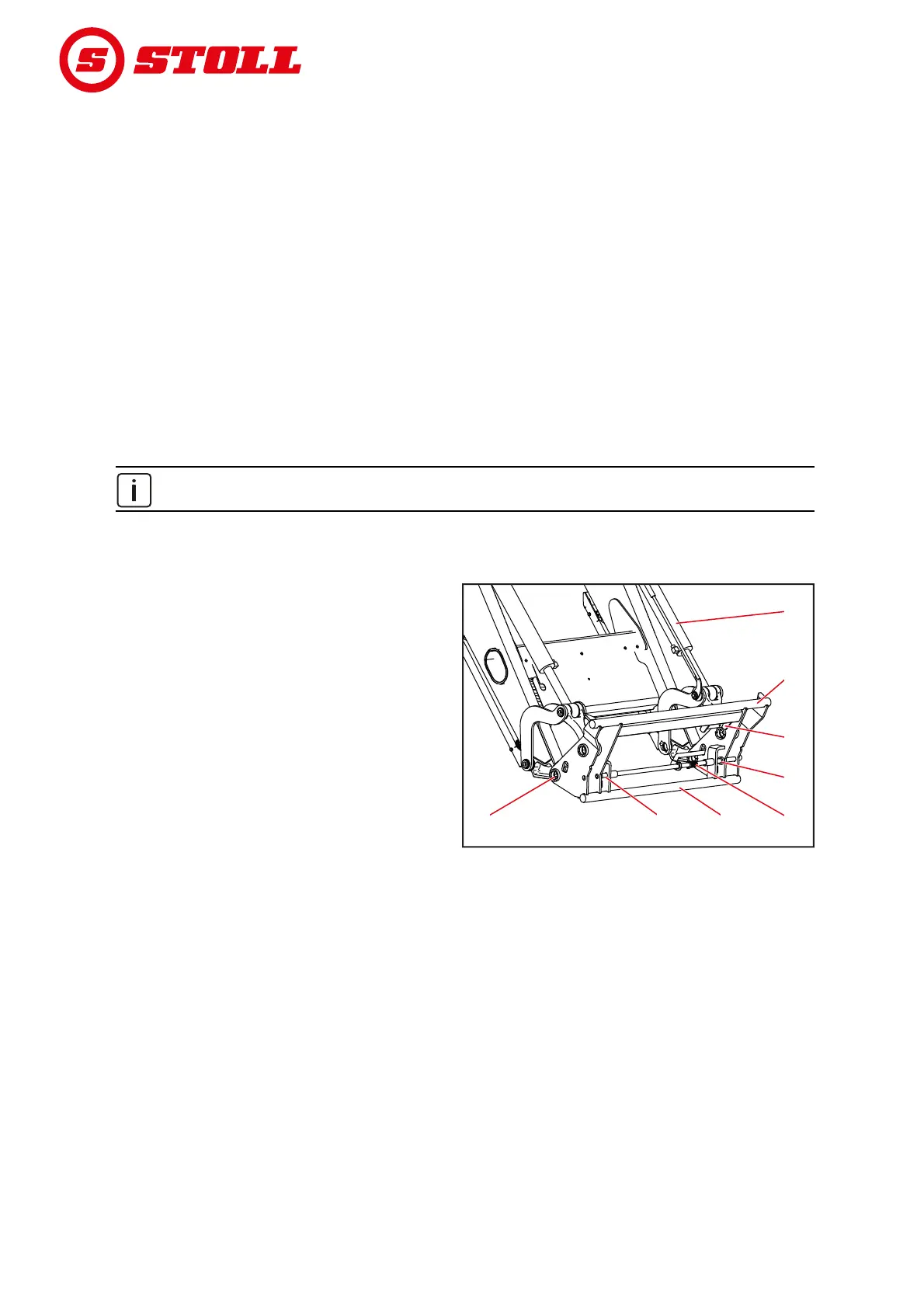

Fig. 10 Euro change frame
Legend
1 Implement cylinder
2 Upper cross bar
3 Support with hydraulic couplings for the
3rd/4th control circuit
4 Mounting on the left
5Spring
6 Lower cross bar
7 Mounting on the right
8 Pivot point
B06T
11
22
33
44
55667788
