OPERATION
6.5.3 Picking up implements with a hydraulic implement locking mechanism
⚠ WARNING
Risk of injury due to implements falling down!
The implement may fall down if the implement locking mechanism is open or not locked correctly. This
can cause serious injury to persons standing in the surrounding area.
 Only actuate the implement locking mechanism when the implement is set down on the ground or
on a secure rack.
 Always check that the implement is correctly locked.
Mounting the implement:
(1) Drive up close to the implement.
(2) Open the implement locking mechanism
(see 6.4.3 Operating the hydraulic
implement locking mechanism).
(3) Use the dumping function until the upper
cross bar of the change frame is positioned
under the hook of the implement.
(4) Carefully drive the tractor forwards until the
cross bar of the change frame touches the
implement.
(5) Closing the implement locking mechanism
(see 6.4.3 Operating the hydraulic
implement locking mechanism).
(6) Checking the implement locking mechanism
(see 6.4.3 Operating the hydraulic
implement locking mechanism).
(7) If applicable, connect the hydraulic lines of
the implement with the front loader
couplings.
 Lower the front loader until the implement
is level on the ground.
 Switch off the engine and apply the
parking brake.
 Depressurize the hydraulic system.
or
With the implement function actuated,
move the operating lever in the lateral
end positions in order to depressurize the
implement hydraulic system
(see 6.1 Operating elements).
 Connect the hydraulic lines of the
implement to the couplings on the
change frame.
 The implement is mounted and ready for
operation.

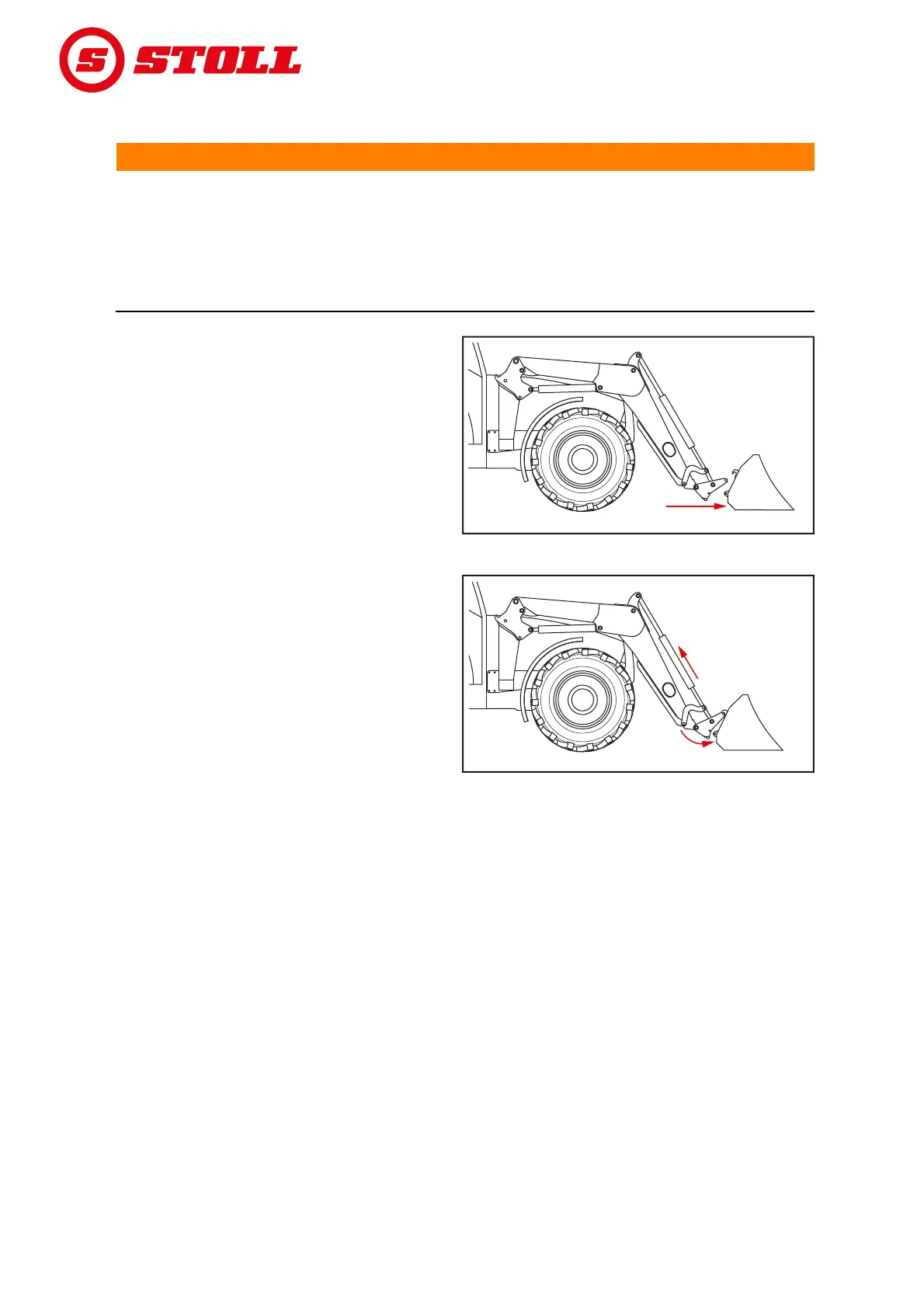

Fig. 83 Driving up
B07O
Fig. 84 Hooking in
B07P
