OPERATION
(5) Switch off the tractor.
 Switch off the engine.
 Apply the parking brake.
(6) Close the implement locking mechanism
manually (see 6.4.2 Operating the
mechanical implement locking mechanism
on skid-steer change frames).
(7) If applicable, connect the hydraulic lines of
the implement with the front loader
couplings.
 Lower the front loader until the implement
is level on the ground.
 Depressurize the hydraulic system.
or
With the implement function actuated,
move the operating lever in the lateral
end positions in order to depressurize the
implement hydraulic system
(see 6.1 Operating elements).
 Connect the hydraulic lines of the
implement to the couplings on the
change frame.
 The implement is mounted and ready for
operation.

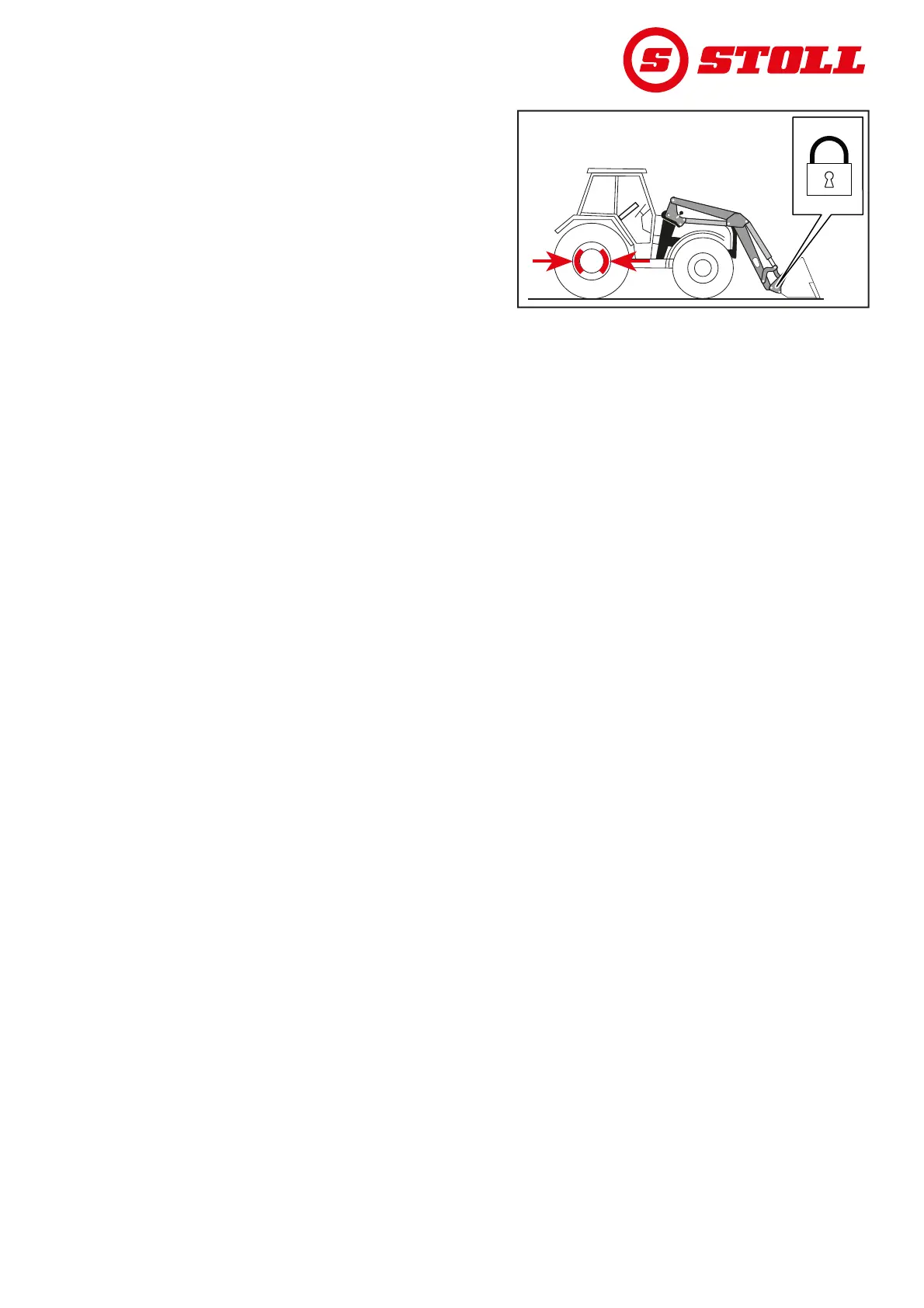

Fig. 82 Closing the implement locking mechanism
B089
