61 B58FZS 0000000078 EN 002
START-UP
5.5 Mounting the front loader
⚠ WARNING
Risk of injury due to uncontrolled movements!
Uncontrolled movements of the front loader can cause injury to persons assisting in the surrounding
area.
Only mount the front loader when nobody is standing the the danger area (see 2.8 Danger zones).
Before exiting the driver's cab, switch off the tractor and depressurize the hydraulic system.
⚠ WARNING
Risk of injury and accident when the front loader is not locked correctly!
When the front loader locking mechanism is not adjusted correctly, the front loader can slip out of the
mounting and cause accidents or personal injury.
Make sure that the front loader locking mechanism is adjusted correctly.
Mounting the front loader:
(1) Open the front loader locking mechanism.
Push both locking levers up.
(2) Slowly drive the tractor centrally in the lifting
arm.
Ensure that the two locking pins touch the
slide rails and the catch hooks.
If it is not possible to fully drive the tractor up to the lifting arm, the front loader must be aligned
for mounting (see 5.6 Aligning the front loader for mounting).

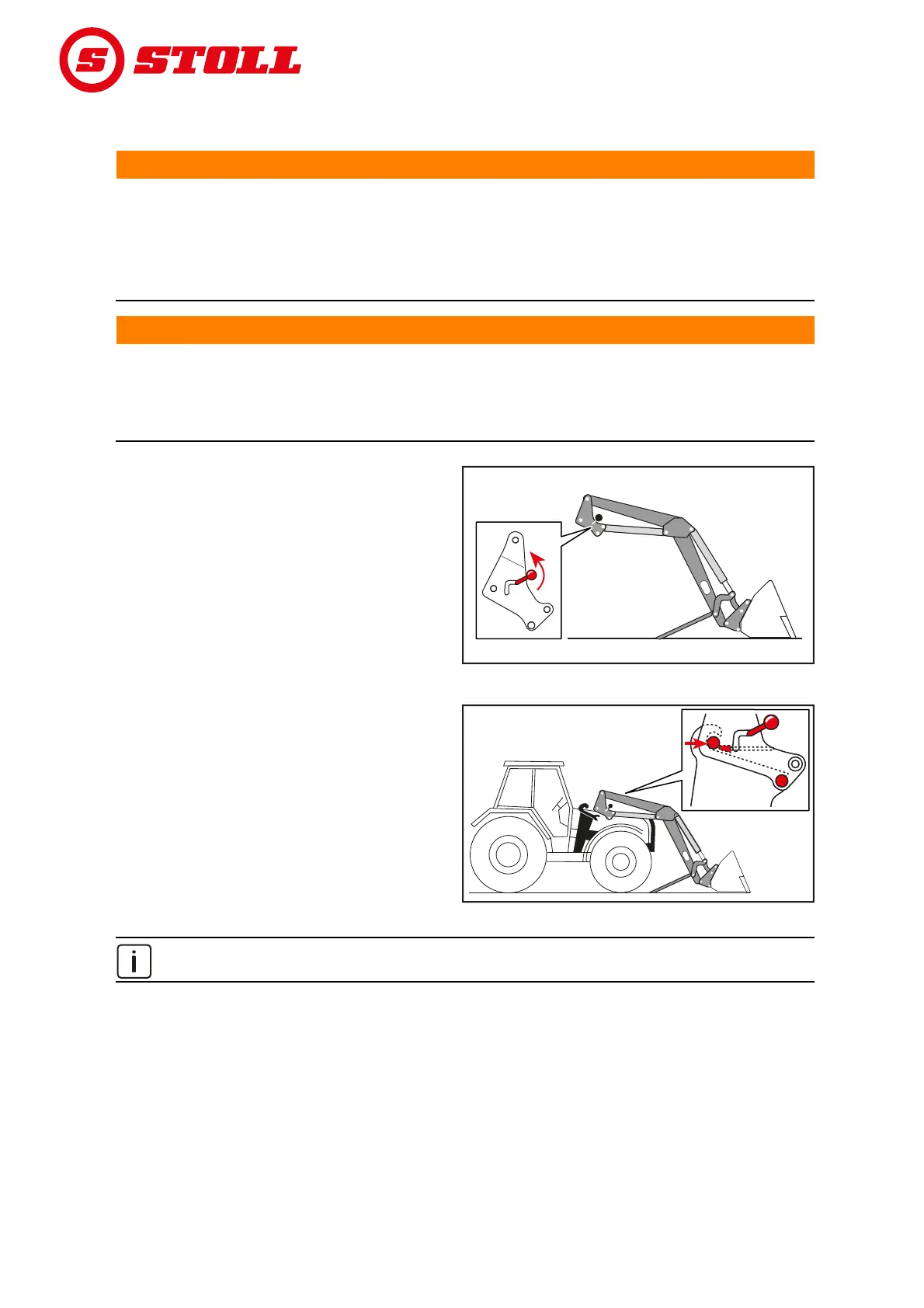

Fig. 50 Opening the front loader locking mechanism
B07D
Fig. 51 Driving the tractor into the lifting arm
B07E
