B58FZS 0000000078 EN 002 60
START-UP
(3) Close the front loader locking mechanism.
Push the lever down.
(4) Guide the socket wrench through the
grommet to the screw.
(5) Unscrew the screw.
Observe the disc spring.
(6) When the disc spring is at maximum tension
(no more gap to the turning lock), turn it back
by ¼ turn to relieve the tension.
(7) Open the front loader locking mechanism.
(8) Tighten the locknut.
(9) Close the front loader locking mechanism.
The front loader locking mechanism is
adjusted.

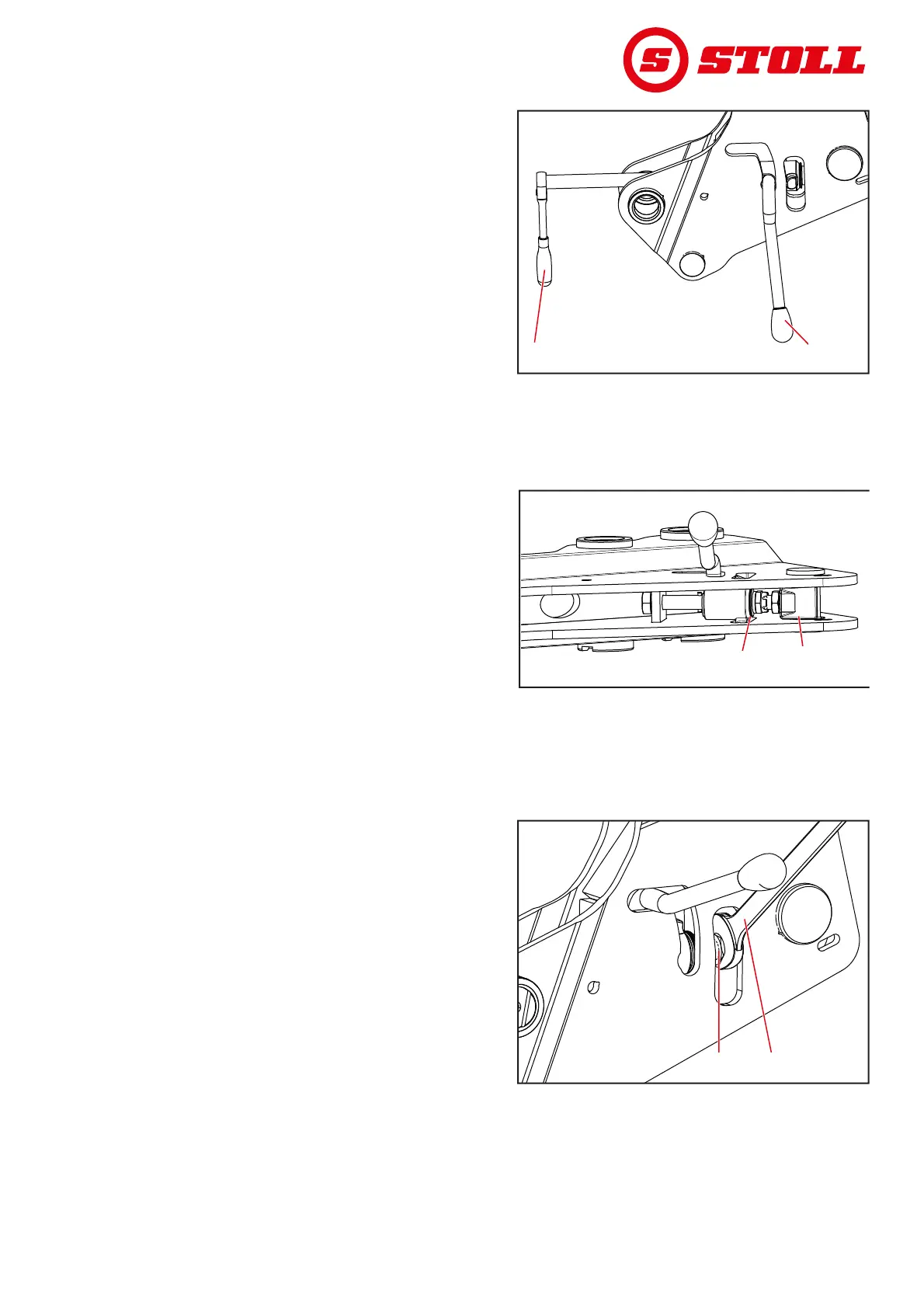

Fig. 47 Guiding the socket wrench through to the screw
Legend
1 Socket wrench
2 Lever
Fig. 48 View of the front loader locking mechanism
from below
Legend
1 Turning lock
2Screw
Fig. 49
Legend
1 Locknut
2 Open-ended spanner
