FUNCTIONS
Lowering
The 2 lifting cylinders are retracted and thus
lower the lifting arm and the implement.
Without parallel motion, the angle between the
lifting arm and the implement remains constant
so that the implement changes its orientation.
With parallel motion, the angle between the lifting
arm and the implement changes so that the
implement maintains its original orientation.
To move the implement, see 4.5 Parallel
motion (FZ, FZ-L).
Scooping
The 2 implement cylinders are retracted and thus
swivel the implement upwards. The implement
scoops.

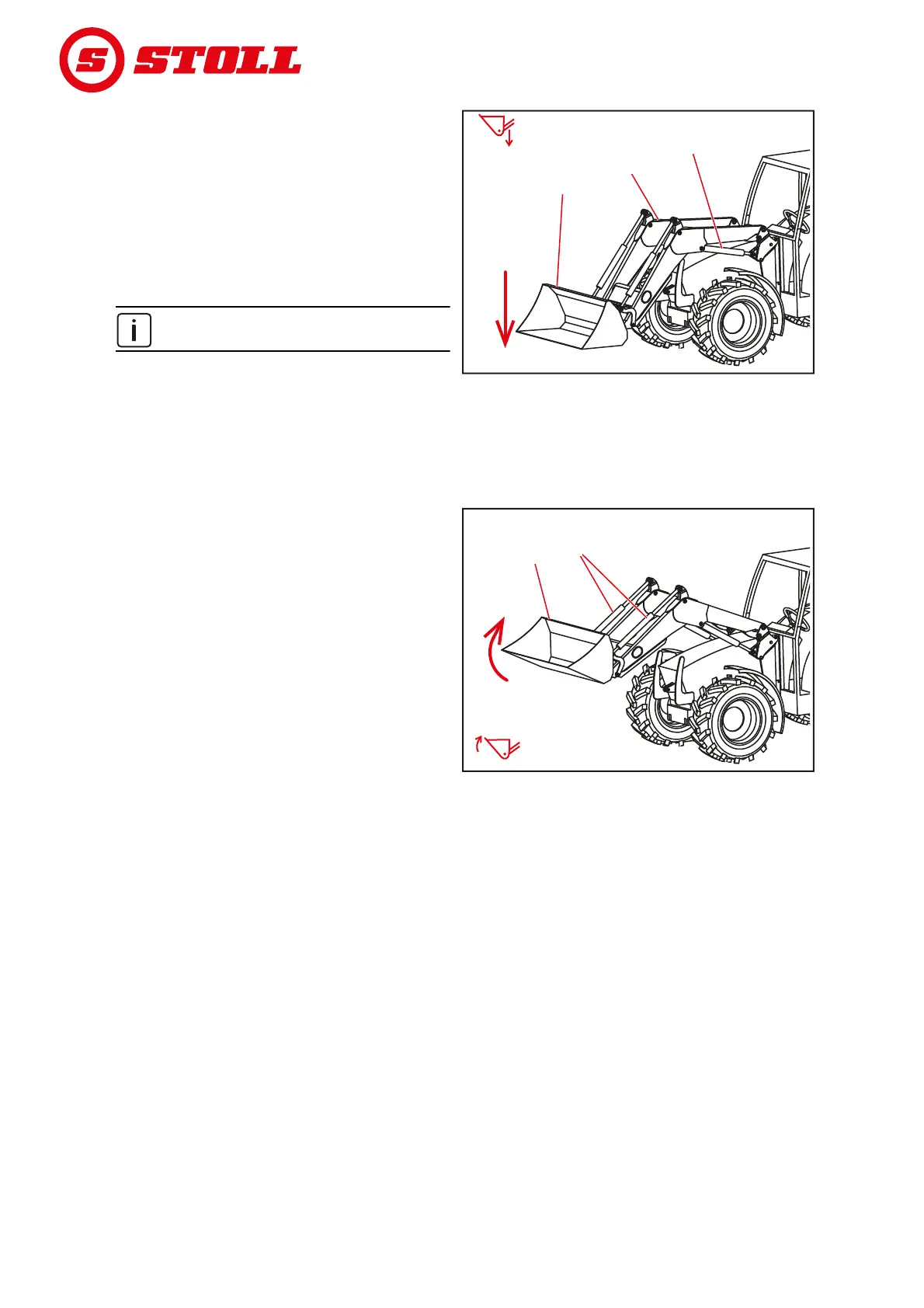

Fig. 24 Lowering function
Legend
1 Lifting cylinders on the left and right
2Lifting arm
3Implement
B01K
11
2
2
3
3
Fig. 25 Scooping function
Legend
1 Implement cylinders on the left and right
2Implement
B01L
22
1
1
