FUNCTIONS
Gas-hydraulic Comfort Drive
The gas-hydraulic Comfort Drive is operated by
hand. The shut-off valve is located on the cross
tube of the front loader for this purpose.
Electro-hydraulic Comfort Drive
⚠ WARNING
Possible risk of crushing!
Comfort Drive is also activated by switching off the ignition or disconnecting the electrical supply. The
front loader can lower slightly in the process and cause personal injury.
Completely lower the front loader before switching off the ignition or disconnecting the electrical
supply of the front loader.
⚠ WARNING
Risk of injury and accident due to the front loader lowering!
Accidental actuation of the Comfort Drive switch while driving can cause the front loader to lower, and
if the lifting height is too low (less than 1 m) the front loader can touch down on the ground. This can
cause accidents and people can be severely injured.
Make sure that the front loader is raised high enough while driving (at least 1 m).
The electro-hydraulic Comfort Drive is actuated
with a switch in the driver's cab.
As a standard, the electro-hydraulic valve is open
here, i.e. it is active when there is no voltage at
the valve.
The electro-hydraulic Comfort Drive can
also be operated with STOLL Pro Control
(see 6.1.4 STOLL Pro Control).

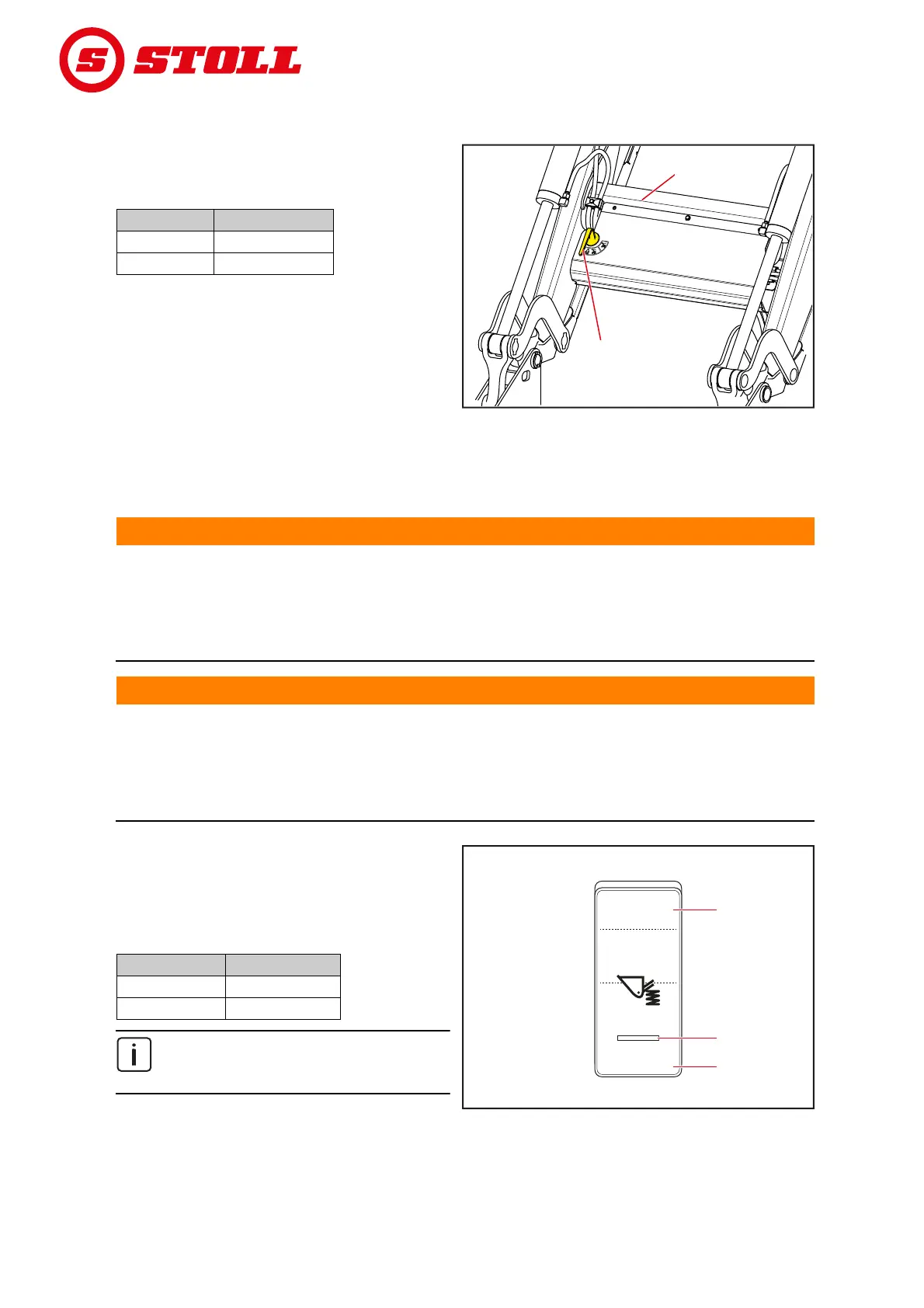

Fig. 35 Manually actuated Comfort Drive
1 Cross tube
2 Shut-off valve on the valve
11
2
2
B06X
Lever position Function
Vertical Comfort Drive on
Horizontal Comfort Drive off
Fig. 36 Switch-operated Comfort Drive
Legend
1 Switch position ON
2 Indicator light
3 Switch position OFF
11
33
22
B06Y
Indicator light Description
ON Comfort Drive on
OFF Comfort Drive off
