Stonex R25/R25LR Total Station - User Manual 74

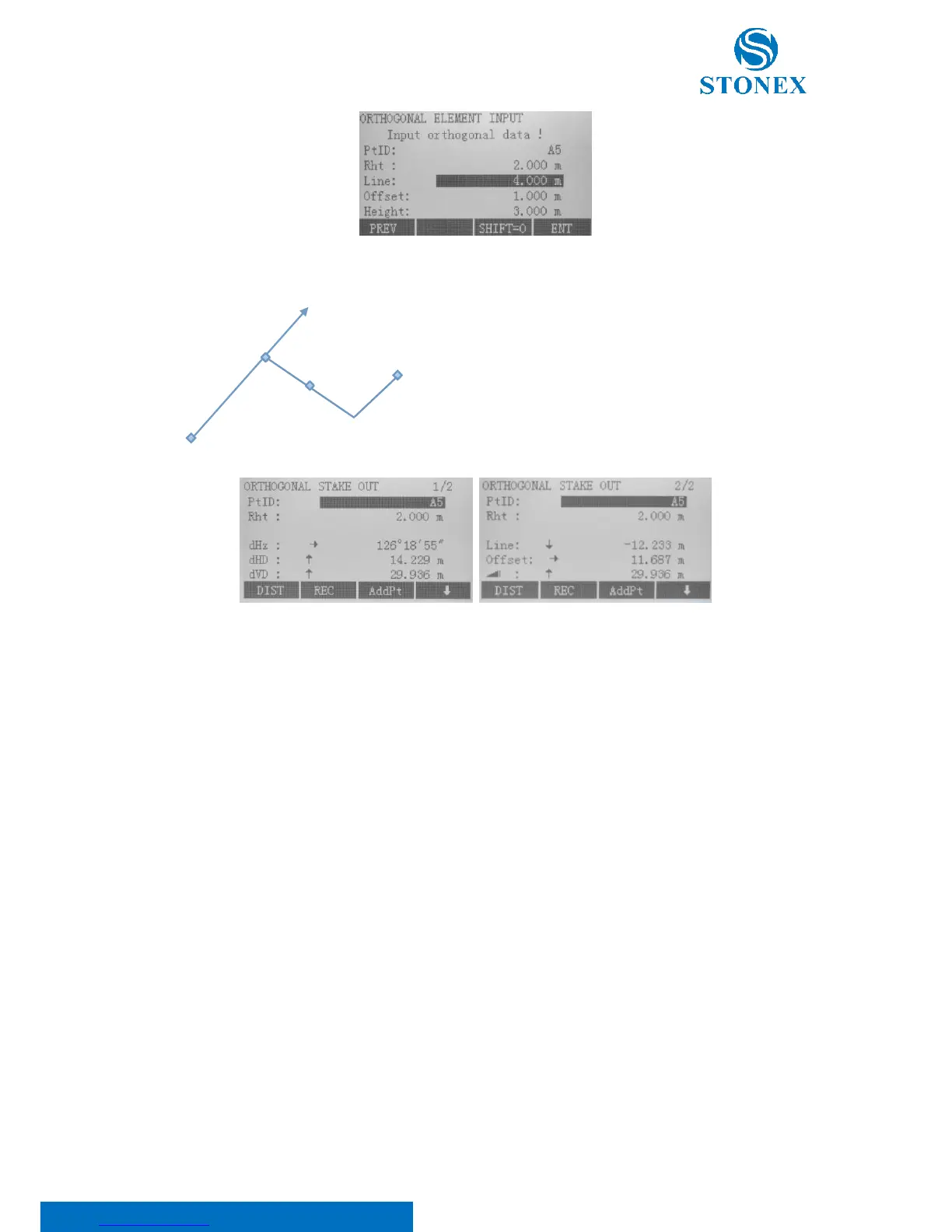

Press [ENT] to confirm data entry and start calculation. The orthogonal stakeout menu will be shown.
1RP: 1st reference point
MP: Measured point
SP: Stake out point
RL: Reference line
Line: Longitudinal offset
Offset: Parallel offset
Here:
dHz is the angular distance from the reference point. If it is positive (arrow right) turn telescope clockwise to
the stake out point;
dHD is the distance from the reference point. If it is positive (arrow up), the stake out point is further away
than the reference point;
dVD is the height difference. If it is positive (arrow up), the stake out point is higher than the reference point;
Line is the longitudinal offset. If it is positive (arrow up), the stake out point is further away than the reference
point;
Offset is the transversal offset. If it is positive (arrow right), the stake out point is on the right of the reference
point.
MP
RL
SP
Offset
Line
1RP
