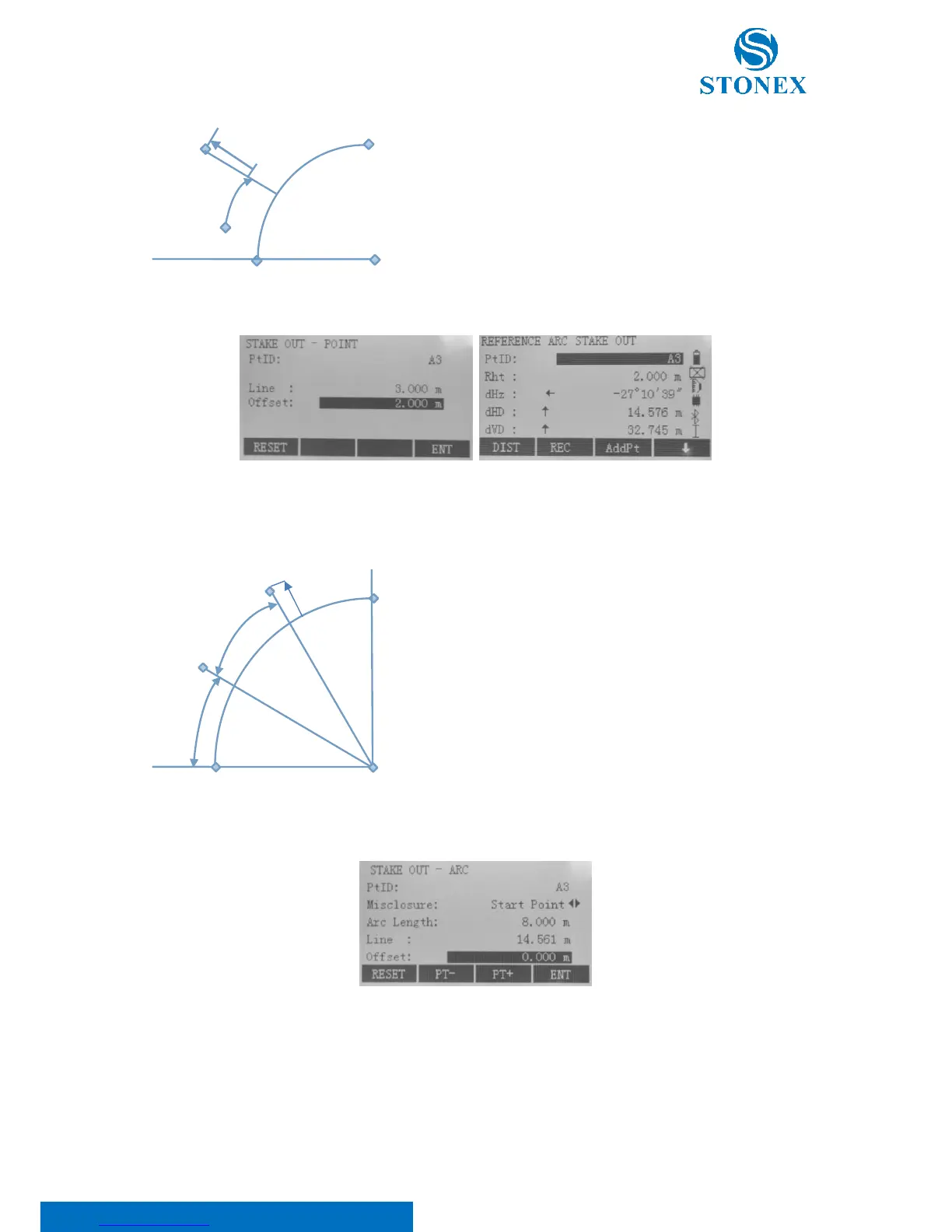

Stonex R25/R25LR Total Station - User Manual 77
SP: Start point of arc
EP: End point of arc
CP: Centre point of circle
P: Point to stake out
MP: Measured point
R: Radius of circle
Line: Distance from start of arc along with the curve
Offset: Vertical distance from arc
2. Stake Out Arc
This gives possibility to stake out a series of equidistant points along with the arc.
SP: Start point of arc
EP: End point of arc
CP: Centre point of circle
P: Point(s) to stake out
AL: Arc length
Offset: Vertical distance from arc
Here:
Misclosure: if the input arc length is not an integer of the whole arc, there will be a closure. And three
distribution ways are provided: Start Point, End Point and Average.
P
Offset
Line
MP
EP
SP
CP
R
R
SP
CP
P
EP
P
AL
AL
Offset
