1.3 Description of the system
1. Transport handle
2. GPS mount (standard 5/8” fitting)
3. Laser window
4. Camera window
(Camera UP and Camera DOWN)
5. Power button
6. Led control bar
7. USB port
8. Smart port: Ethernet and external
power supply
9. GPS port
10. Battery handle
11. Battery pack

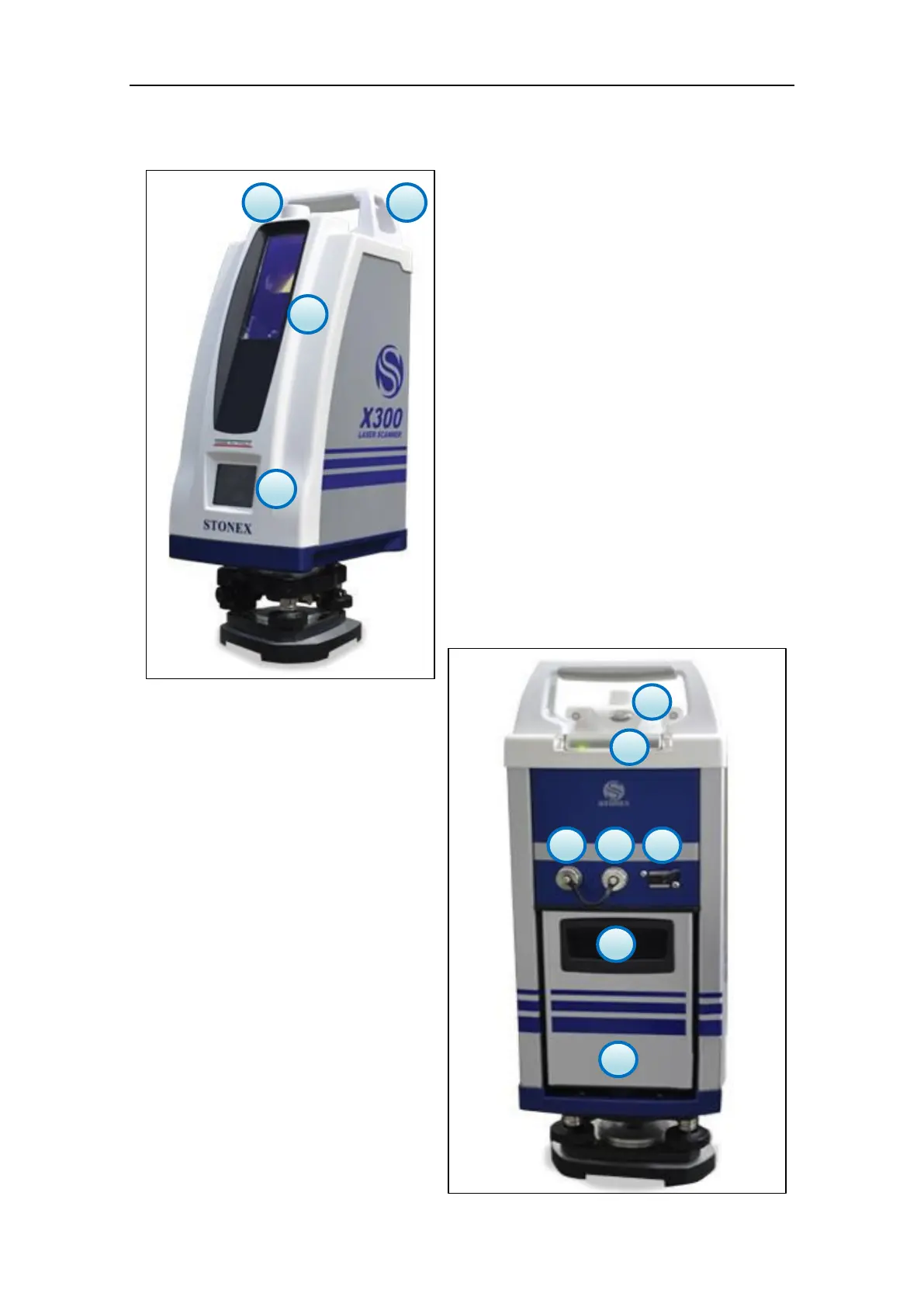

Figure 1: X300 Front-Right side
Figure 2: X300 Rear side
