3.3 Led indicators
There are 14 LED indicators placed on the top of the instrument.
Three LEDs on the left margin are dedicated to the X300 status. They are in different
colors. Starting from the left:
Red, Yellow, Green
Ten Blue LEDs in the middle are used to display the progress of long operations (such as
scan and saving)
Three LEDs on the right margin are dedicated to display the GPS status, if connected.
Starting from the left:
Green, Yellow, Red
Each LED can assume three different states:
Off
Blinking
Solid light

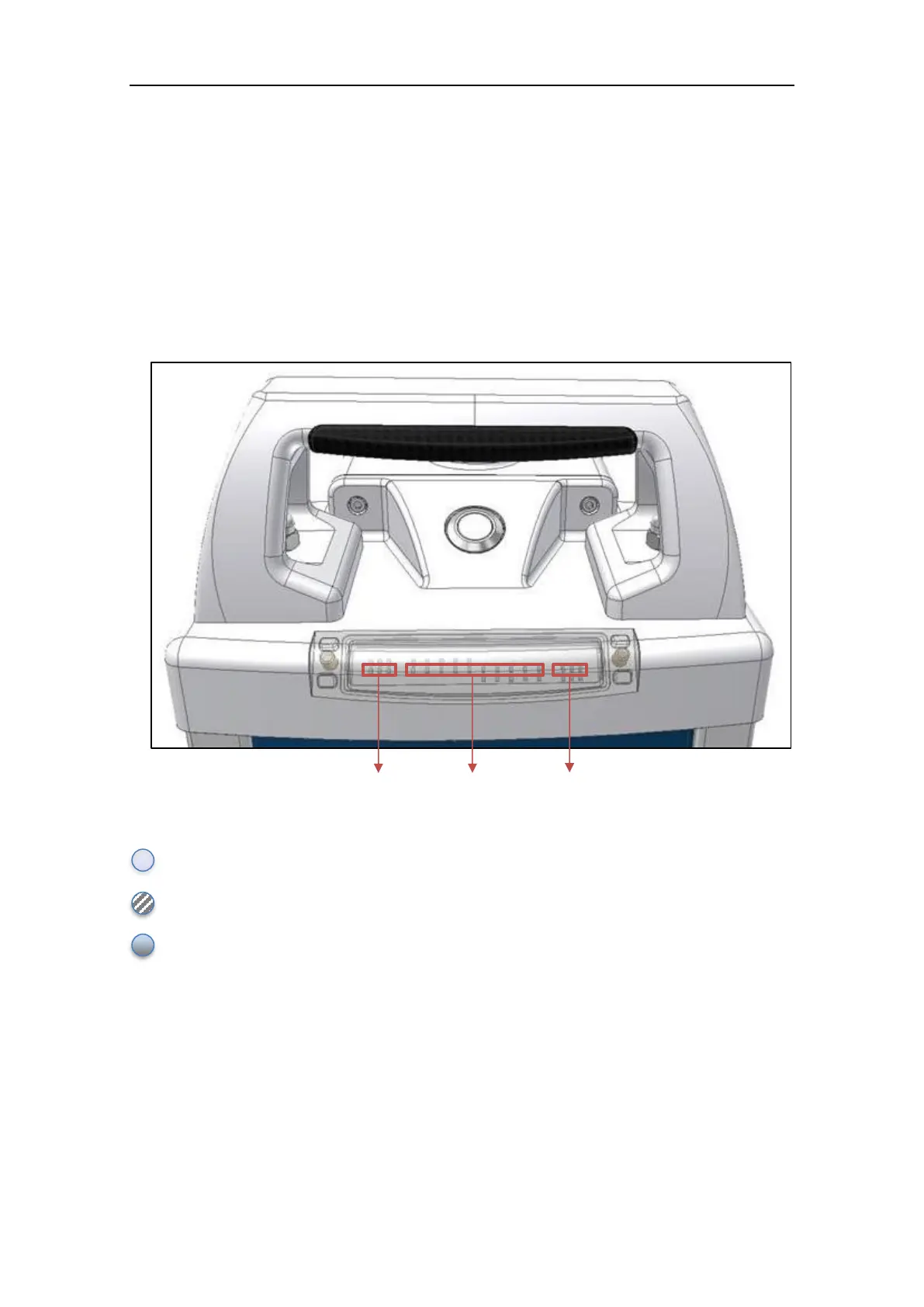

Figure 25: Led indicators
