Stryker 1069 - Page 101

page 6–62

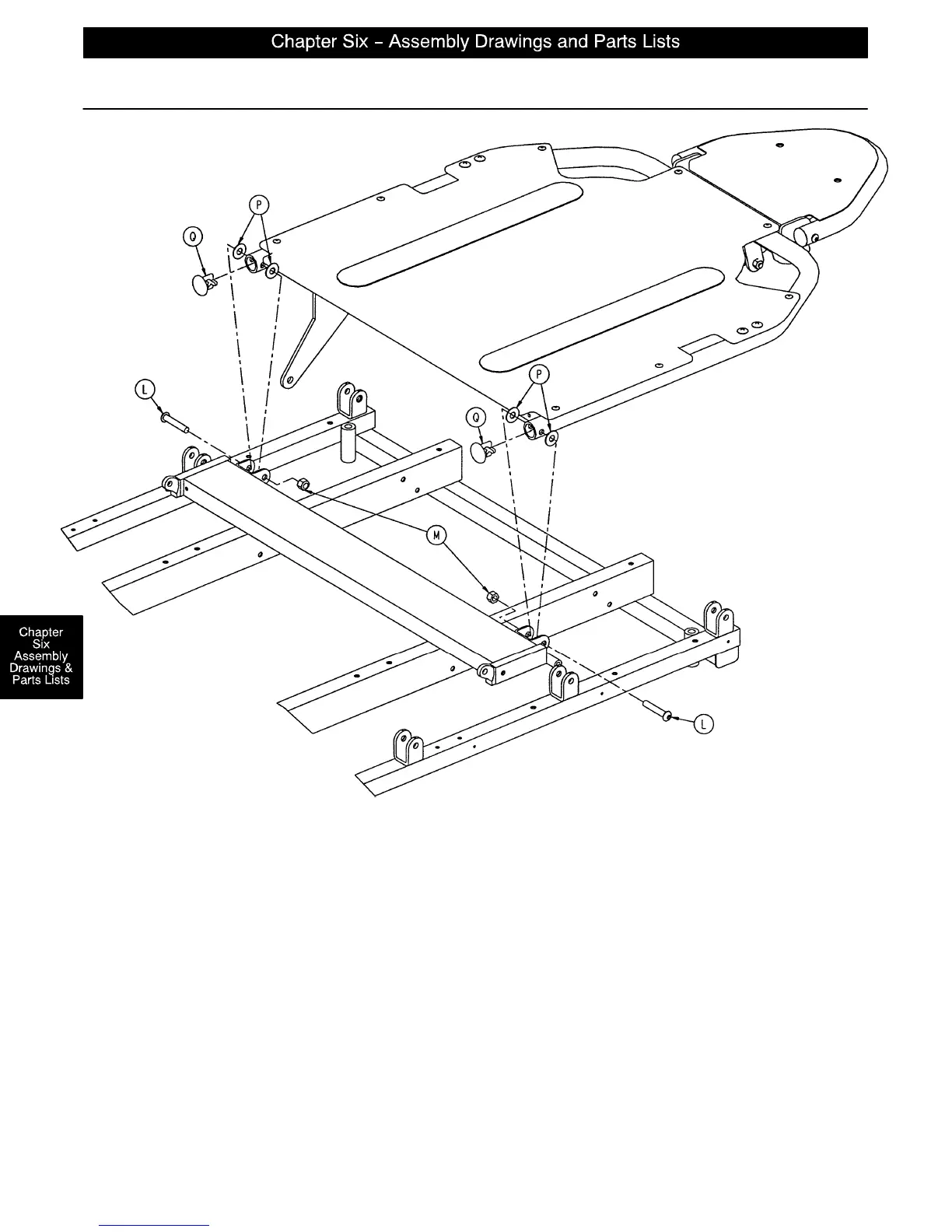

1069–42–55 Optional Single Articulating Crank Fowler Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1069–32–75 Fowler Skin 1 R 966–70–36 Spacer 2
B25–50 Pop Rivet 9 S 3–20 Hex Hd. Cap Screw 1
C7–42 Truss Hd. Screw 4 T 966–70–27 Bar Clamp 1
D 1069–32–70 Fowler Weldment 1 U 21–73 Set Screw 1
E 1069–31–12 Barrel Nut 4 V 3–5 Hex Hd. Cap Screw 1
F16–28 Nylock Nut 2 W 38–171 Compression Spring 1
G 1069–33–110 Head Piece Weldment 1 X 966–51–19 Modified Wedge Lock 1
H 1069–33–108 Head Pivot Shaft 1 Y 11–108 Steel Flat Washer 1
J 1069–33–107 Hole Plug 2 Z 966–51–18 Shaft 1
K4–74 Button Hd. Screw 2 AA 4–66 Soc. Hd. Cap Screw 1
L4–54 Button Hd. Screw 2 AB 966–51–24 Knob 1
M16–11 Nylock Nut 2 AC 966–1–65 Label 1
N 7900–1–102 Velcro Pile 2 AD 966–70–25 Slide Bar 1
P11–179 Nylon Washer 4 AE 966–70–37 Spacer 2
Q 1069–31–13 Hole Plug 2
