page 6–79

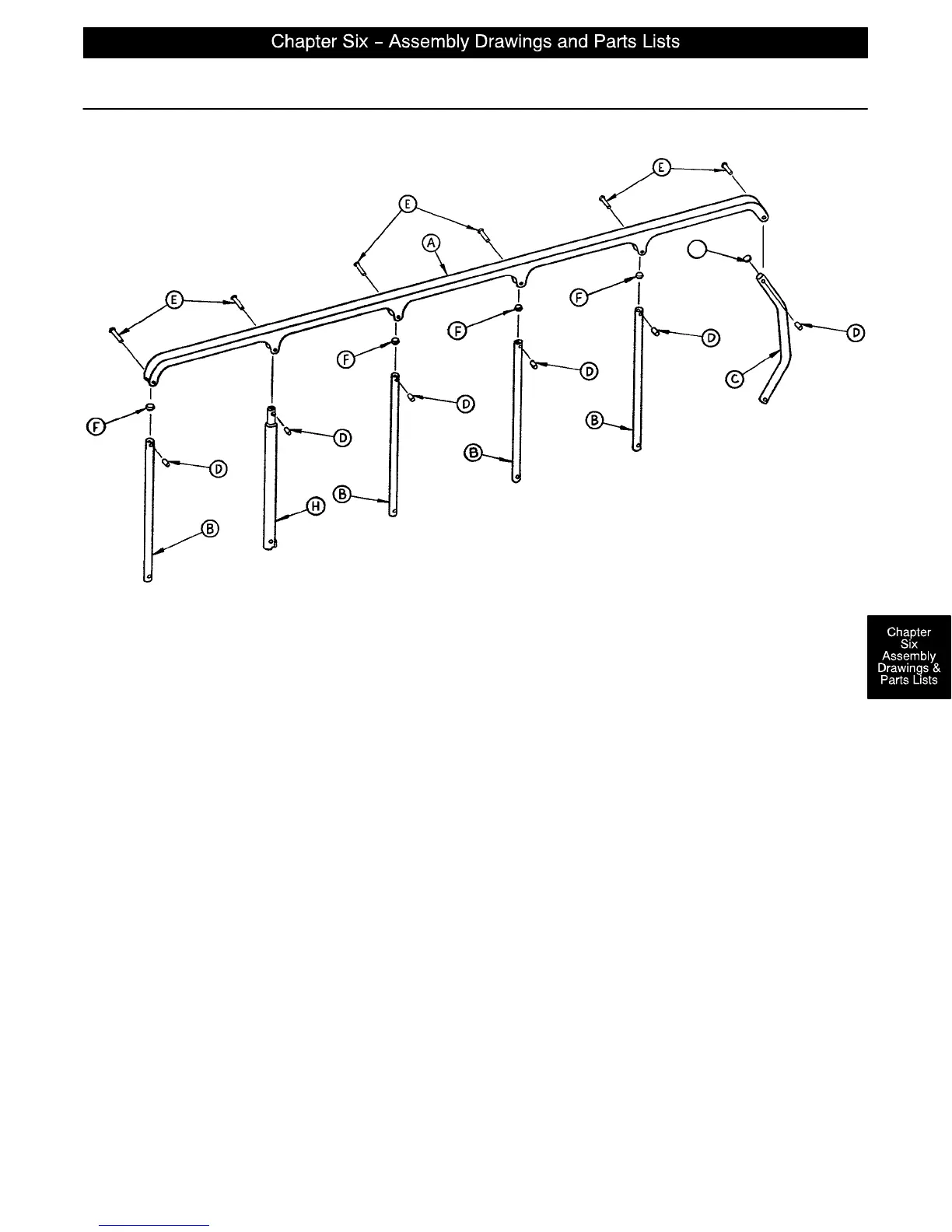

Two–Position Siderail Assembly, Right and Left
HEAD END
J
(Right Side is Shown)
Assembly part numbers
1068–26–15 (Right)
1068–26–17 (Left)
Item Part No. Part Name Qty.
A 1010–26–15 Top Rail 1
B 1010–26–83 Upright 4
C 1010–26–84 Upright, Bent 1
D 1010–26–82 Sleeve, Bearing 6
E25–106 Semi–Tubular Rivet 6
F 1010–26–10 Round Hole Plug 4
H 1010–26–85 Latch Upright Ass’y1
J 1010–26–12 Bent Spindle Rest 1
