page 6–22

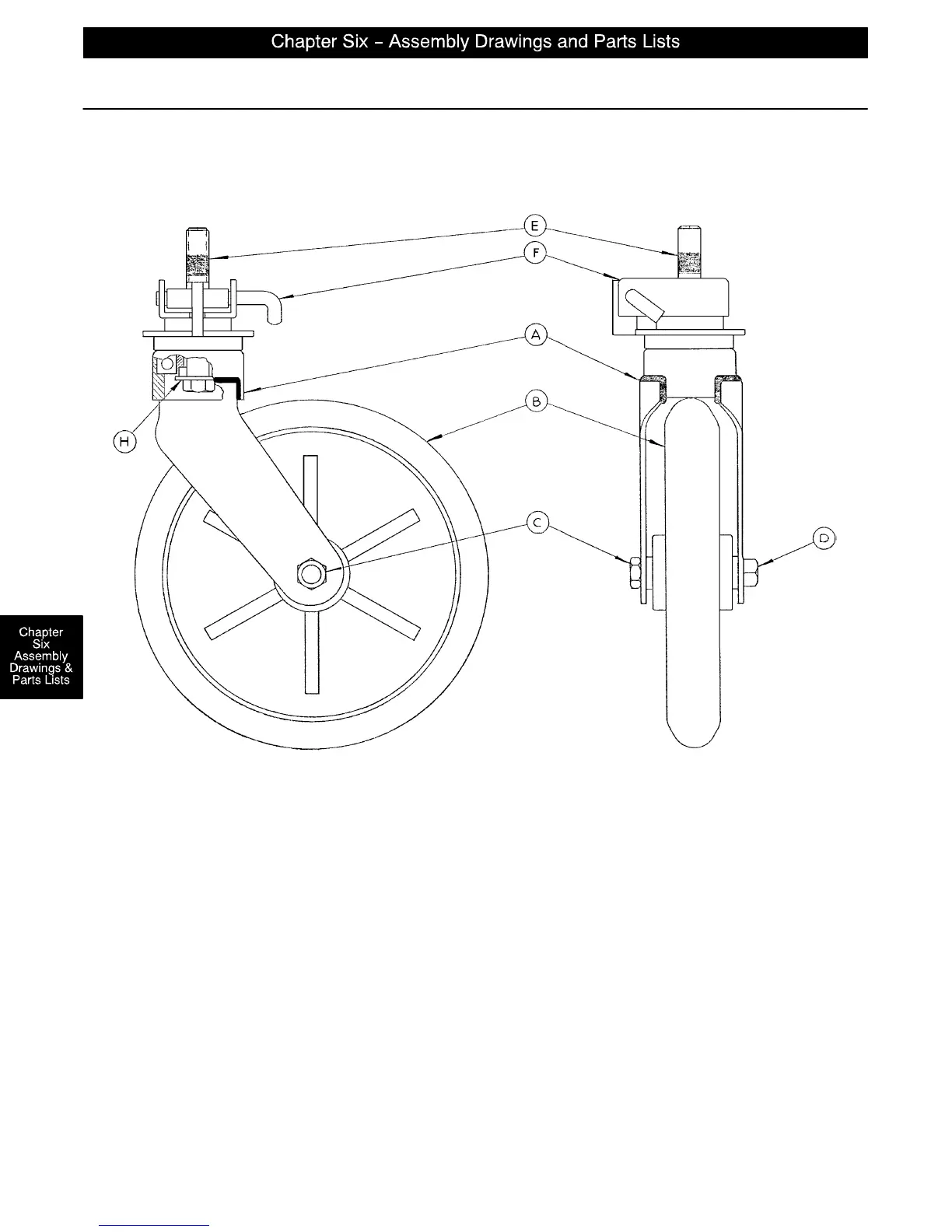

715–269–100 Caster Assembly with Steerlock
Assembly part number 715–2–21 (reference only)
Item Part No. Part Name Qty.
A 700–10–50 Steer Lock Caster Weldment 1
B 715–2–25 Caster Wheel 1
C16–60 Hex Nut 1
D3–99 Hex Bolt 1
E 715–3–96 Hex Bolt 1
F 1000–59–10 Latch Assembly 1
H11–310 Flat Washer 1
