page 6–30

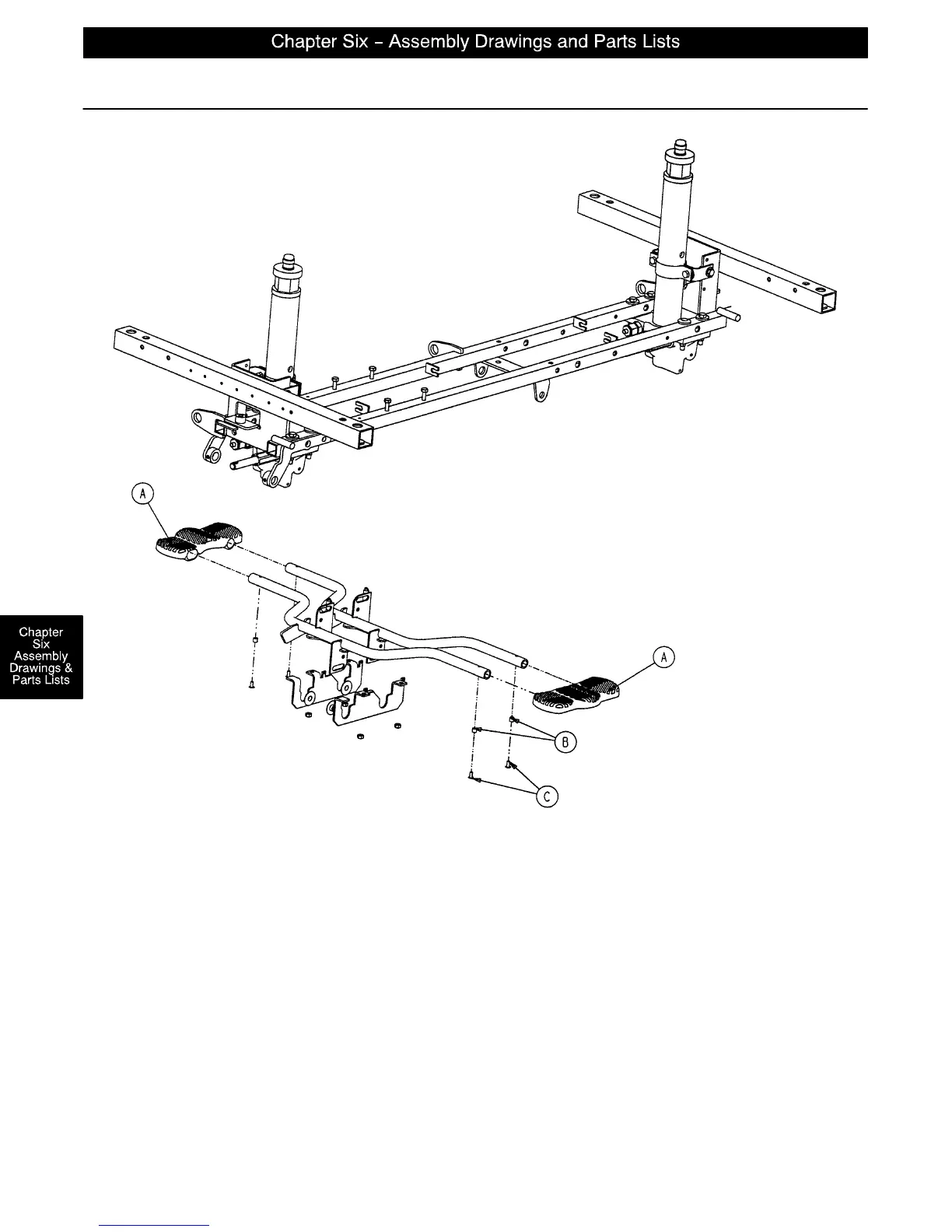

Optional Uni–Lower Pedal Assembly
Assembly part number 1210–500 (reference only)
FOOT END
HEAD END
Item Part No. Part Name Qty.
A 715–201–127 Uni–Lowering Pedal 2
B 715–1–333 Release Rod Stop Sleeve 4
C25–50 Pop Rivet 4
