Stryker 1069 - Head End Pump Pedal Assembly

page 6–15

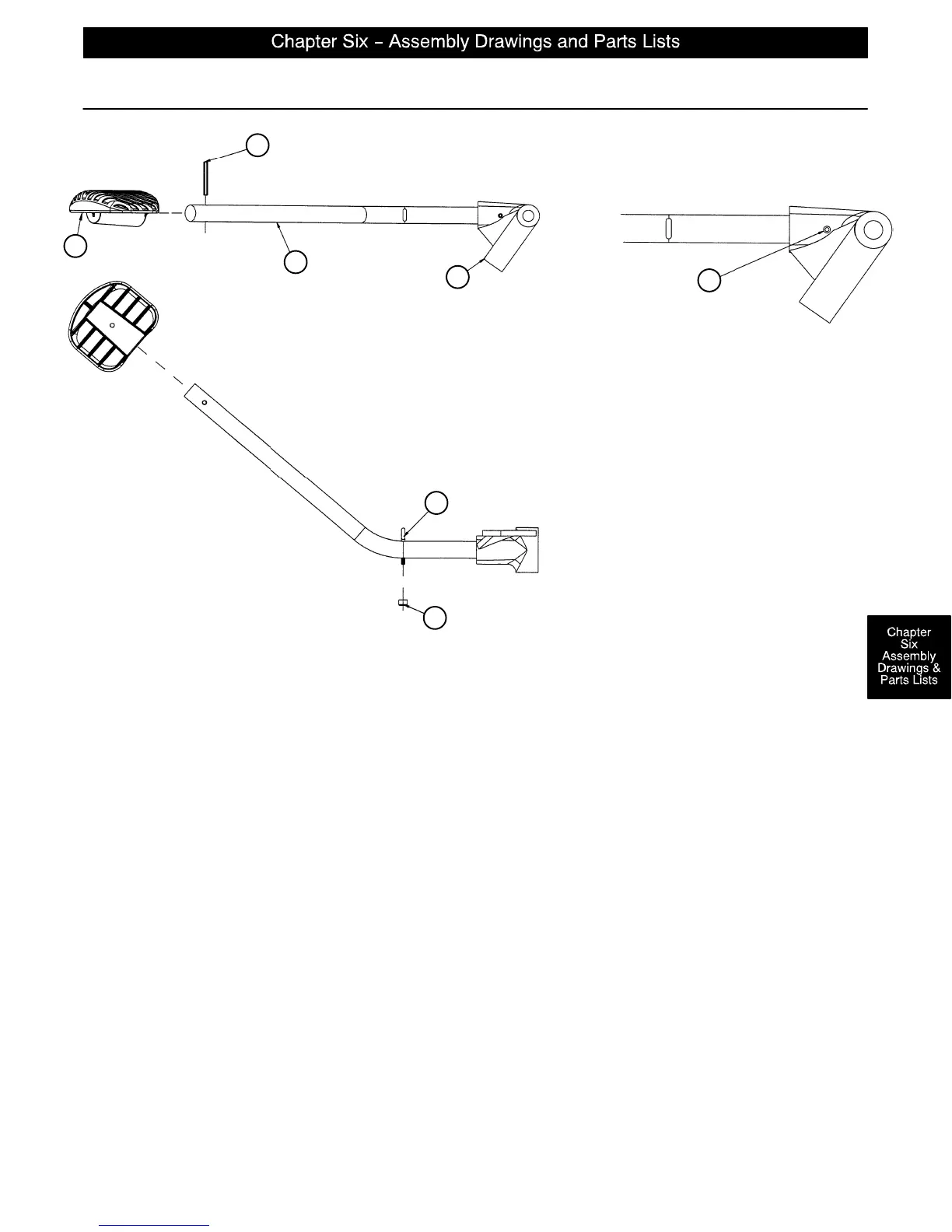

716–201–292 Head End Pump Pedal Assembly
G
D
B
C
A
F
E
Item Part No. Part Name Qty.
A26–145 Spring Pin 1
B 716–1–285 Pump Pivot Housing, Hd. End 1
C 716–201–14 Head End Pump Rod 1
D 715–201–126 Pedal 1
E 1210–201–551 Eye Bolt 1
F16–14 Nylock Nut 1
G26–261 Groove Pin 1
