page 6–15.1

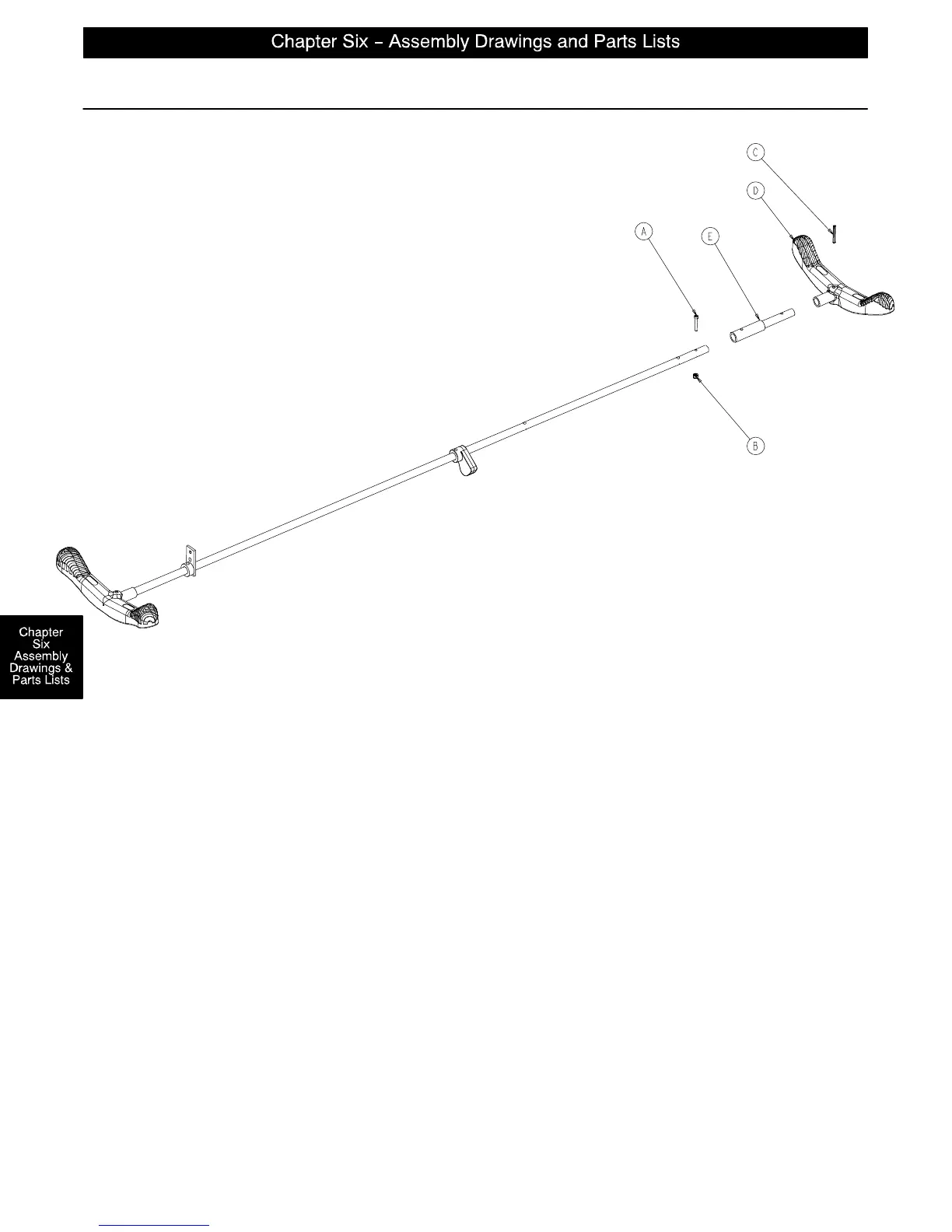

1069–70 Optional Removable Brake/Steer Pedal Assembly
Assembly part number 1069–70–10 (reference only)
Item Part No. Part Name Qty.
A4–160 Socket Hd. Cap Screw 1
B16–3 Fiberlock Nut 1
C26–143 Groove Pin 1
D 1210–201–153 Butterfly “V” Pedal 1
E 1068–300–000 Removable Pedal Adapter 1
