Stryker 1069 - Knee Gatch Assembly

page 6–75

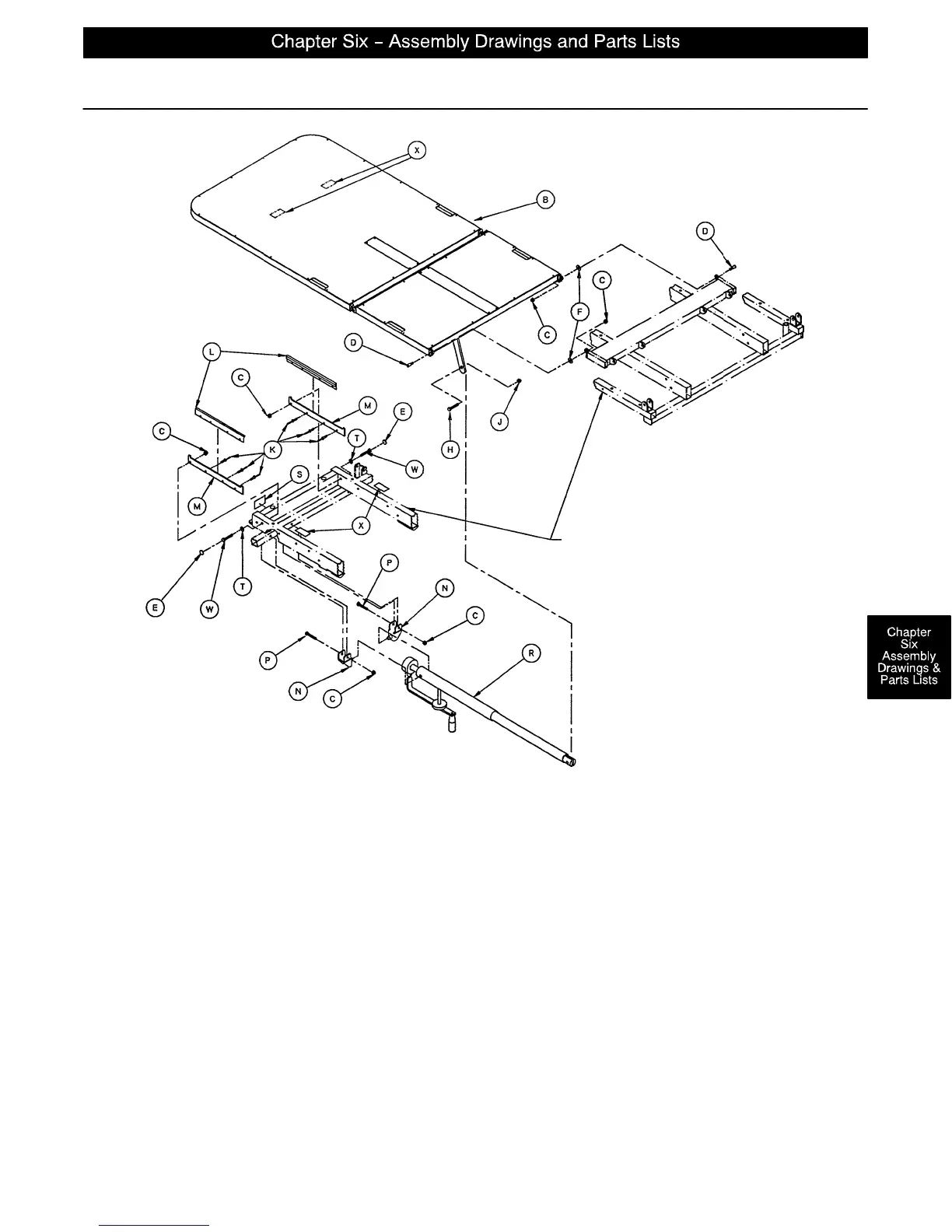

Optional Knee Gatch Assembly
P/N 1068–30–50 Litter Frame Weldment (Ref.)
Assembly part number 1068–40–10
(reference only)
Item Part No. Part Name Qty. Item Part No, Part Name Qty.
A 721–31–65 Hole Plug 2 L 1510–34–90 Slider Pad 2
B (page 6–76) Foot/Thigh Subassembly 1 M 1510–34–94 Calf Stand Rest 2
C16–28 Nylock Hex Nut 6 N 1010–34–15 Mounting Bracket Ass’y2
D 1010–32–60 Pivot Bolt 2 P 3–78 Hex Hd. Cap Screw 2
E37–55 Protective Cap 2 R (page 6–77) Knee Gatch Crankscrew 1
F14–3 Washer 2 S 946–1–65 Knee Gatch Label 1
H4–105 Soc Hd. Cap Screw 1 T 37–56 Retaining Washer 2
J16–12 Flexlock Nut 1 W 3–47 Hex Hd. Cap Screw 2
K25–79 Pop Rivet 6 X 7900–1–102 Velcro Pile .33’
