Stryker 1069 - Optional Transfer Board Assembly, Right

page 6–84

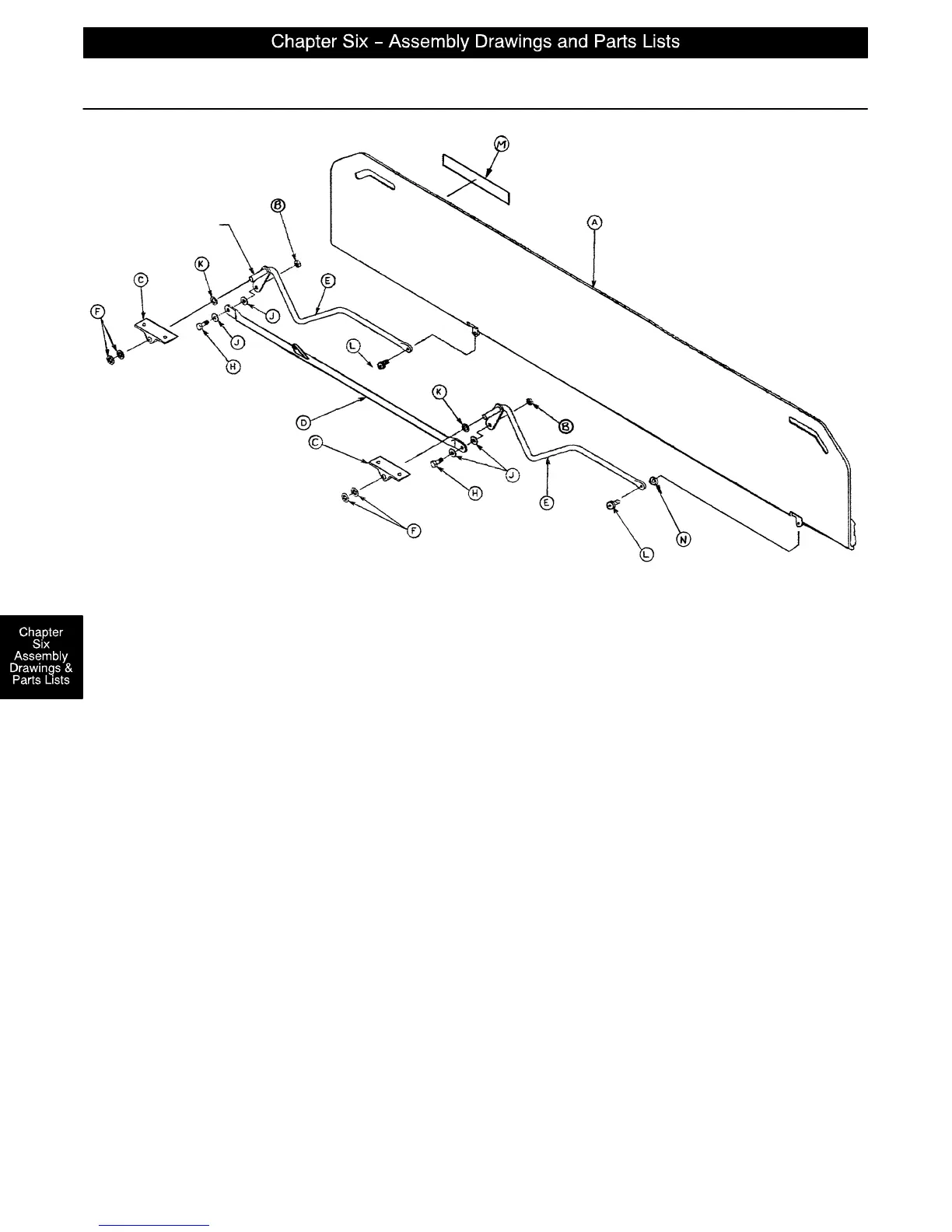

1060–1–115 Optional Transfer Board Assembly, Right
Shaft End (Ref.)
Item Part No. Part Name Qty.
A 1060–1–76 Arm Board Ass’y, Right 1
B16–28 Nylock Hex Nut 2
C 1010–32–98 Pivot 2
D 1060–1–74 Connecting Link Ass’y1
E 1010–32–96 Pivot Arm Ass’y, Right 2
F28–93 Retaining Ring 4
H3–50 Hex Hd. Cap Screw 2
J11–224 Nylon Flat Washer 4
K14–21 Nylon Flat Washer 2
L4–156 Soc. Hd. Cap Screw 2
M 721–24–46 Label 1
N14–2 Washer 1
