page 6–13

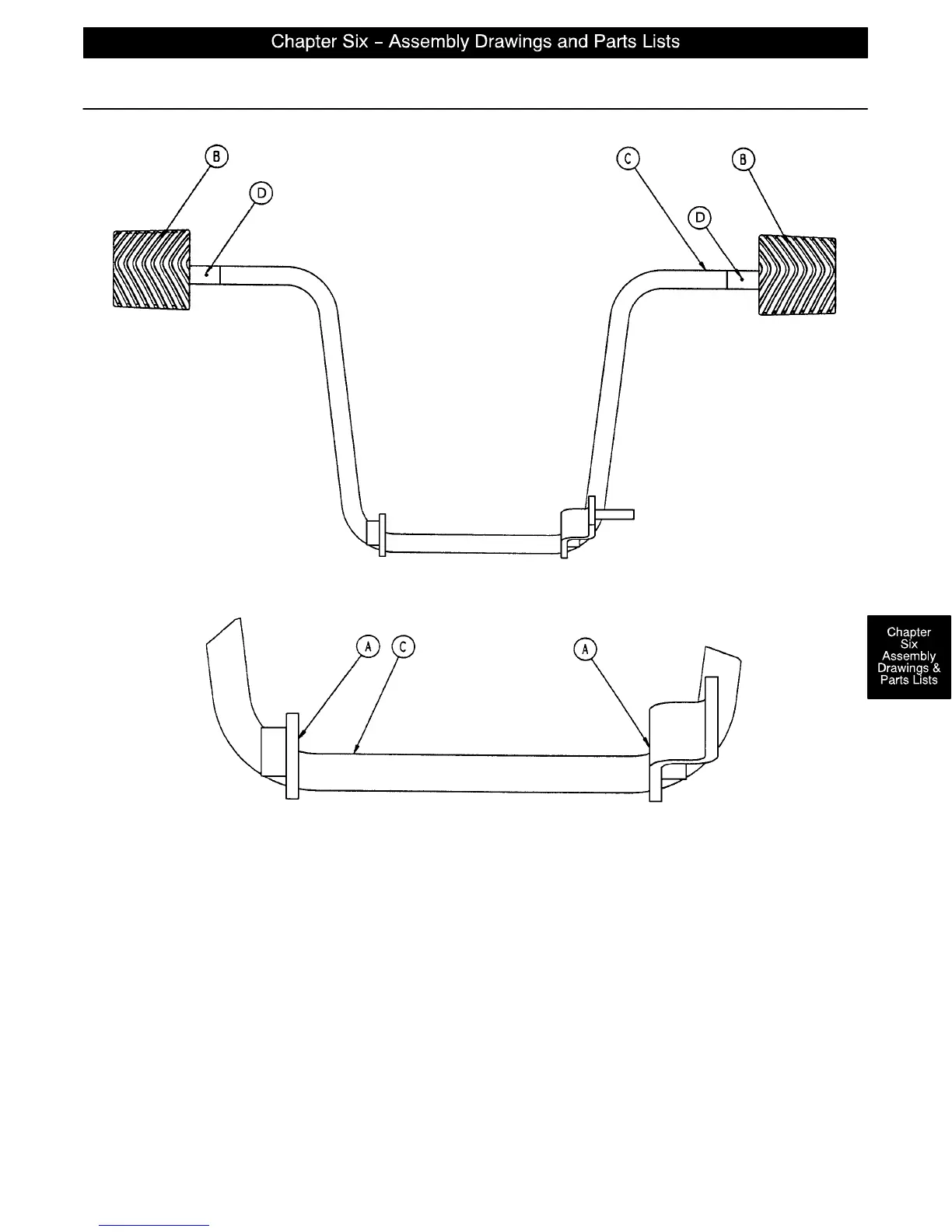

Side Control Pump Pedal Assembly
Item Part No. Part Name Qty.
A81–44 Bronze Bearing 2
B 715–201–126 Slip–On Pedal Pad 2
C 715–201–83 Pump Pedal Weldment 1
D26–143 Groove Pin 2
