page 6–12

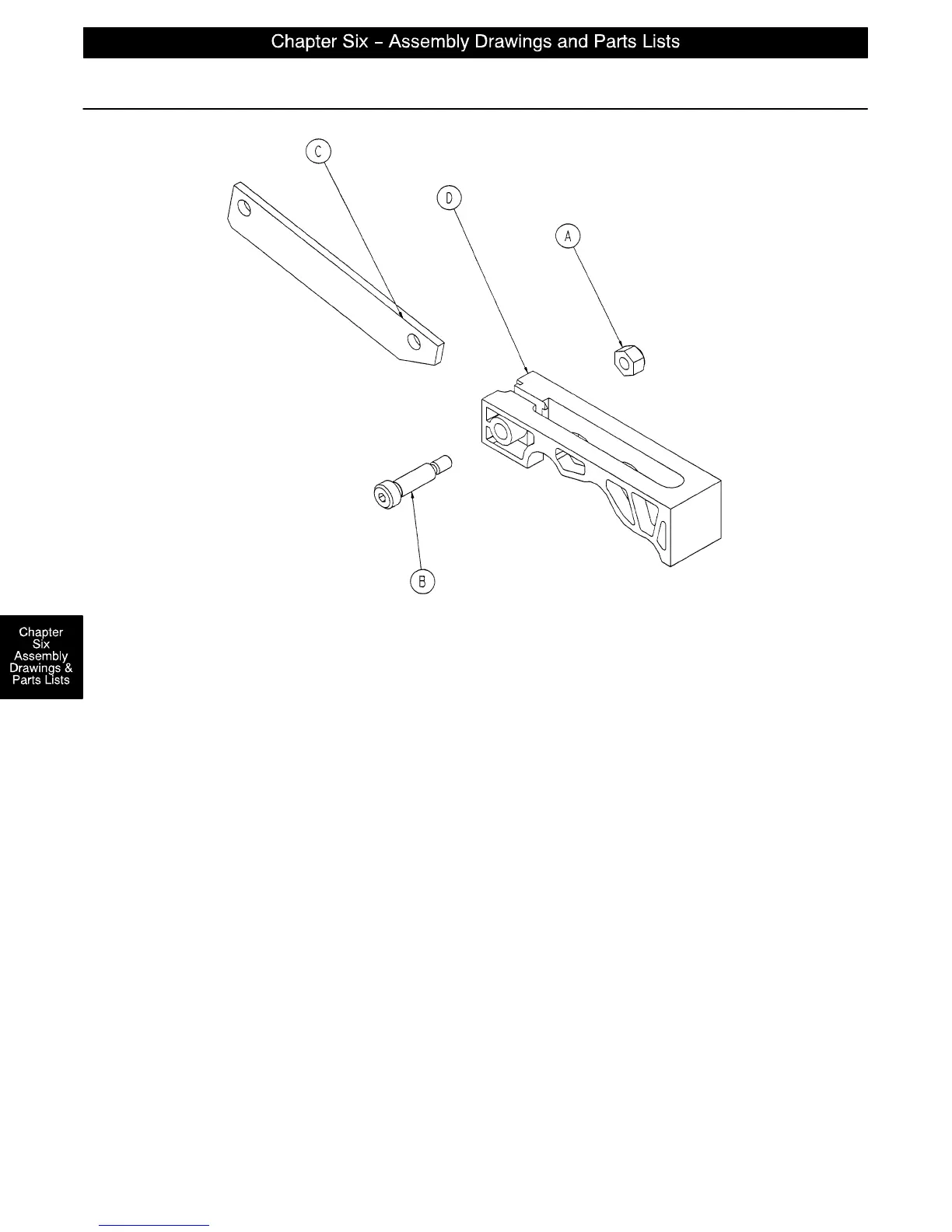

715–201–213 Brake Cam Assembly
Item Part No. Part Name Qty.
A16–59 Hex Nut 1
B8–21 Soc. Hd. Shoulder Screw 1
C 715–201–173 Brake Connecting Link 1
D 715–301–221 Brake Cam 1
