Stryker 1069 - Optional I.V. Pole Latch Assembly

page 6–96

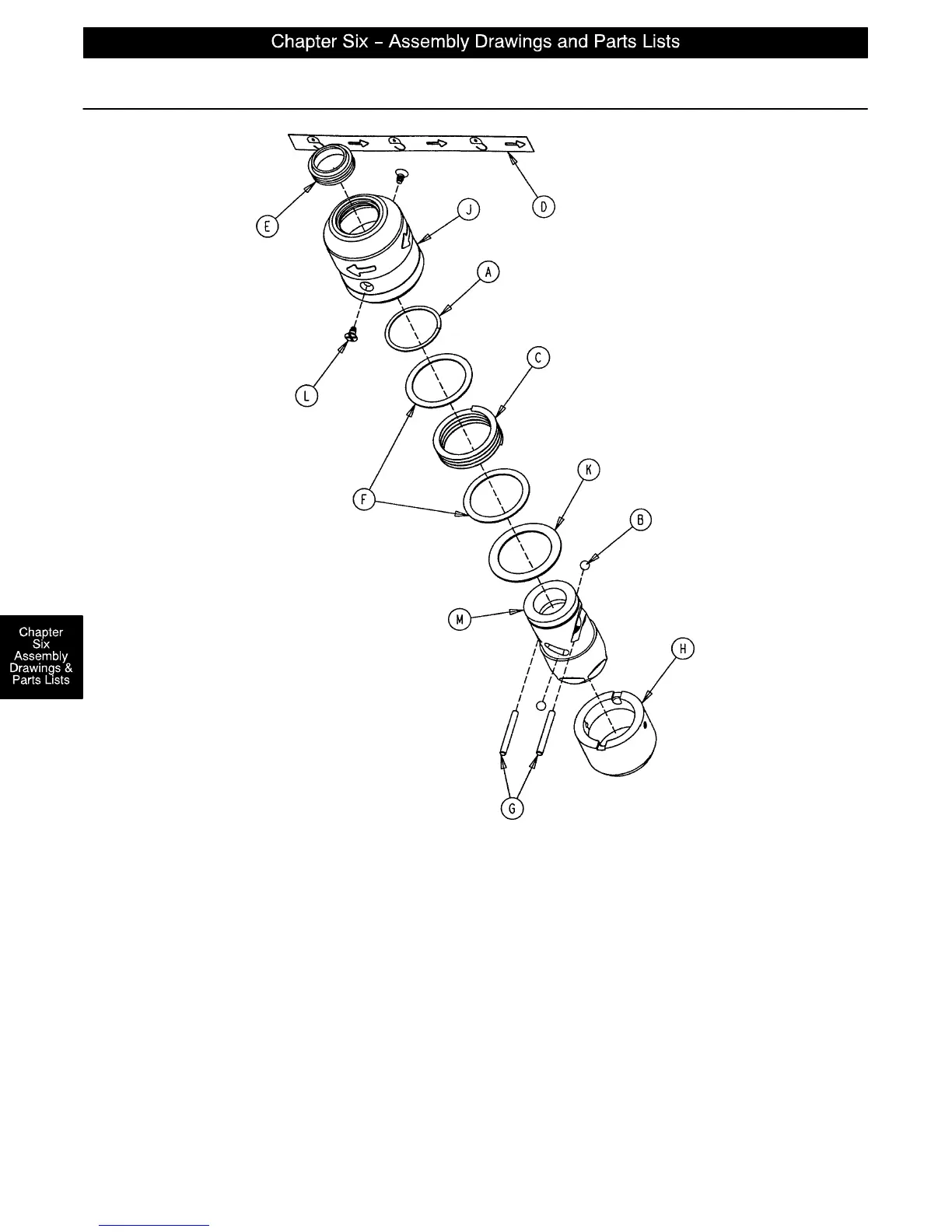

1211–210–26 Optional I.V. Pole Latch Assembly
Item Part No. Part Name Qty.
A28–167 Retaining Ring 1
B31–4 Steel Ball 2
C38–392 Crest–to–Crest Spring 1
D 1211–91–34 Release Label 1
E 1211–110–18 I.V. Latch Seal 1
F 1211–110–20 Washer 2
G 1211–110–21 I.V. Latch Locking Pin 2
H 1211–110–22 I.V. Latch Guide 1
J 1211–110–24 I.V. Latch O.D. Housing 1
K 1211–110–35 Washer 1
L 1211–110–36 Self–Tapping Screw 2
M 1211–210–23 I.V. Latch I.D. Housing 1
