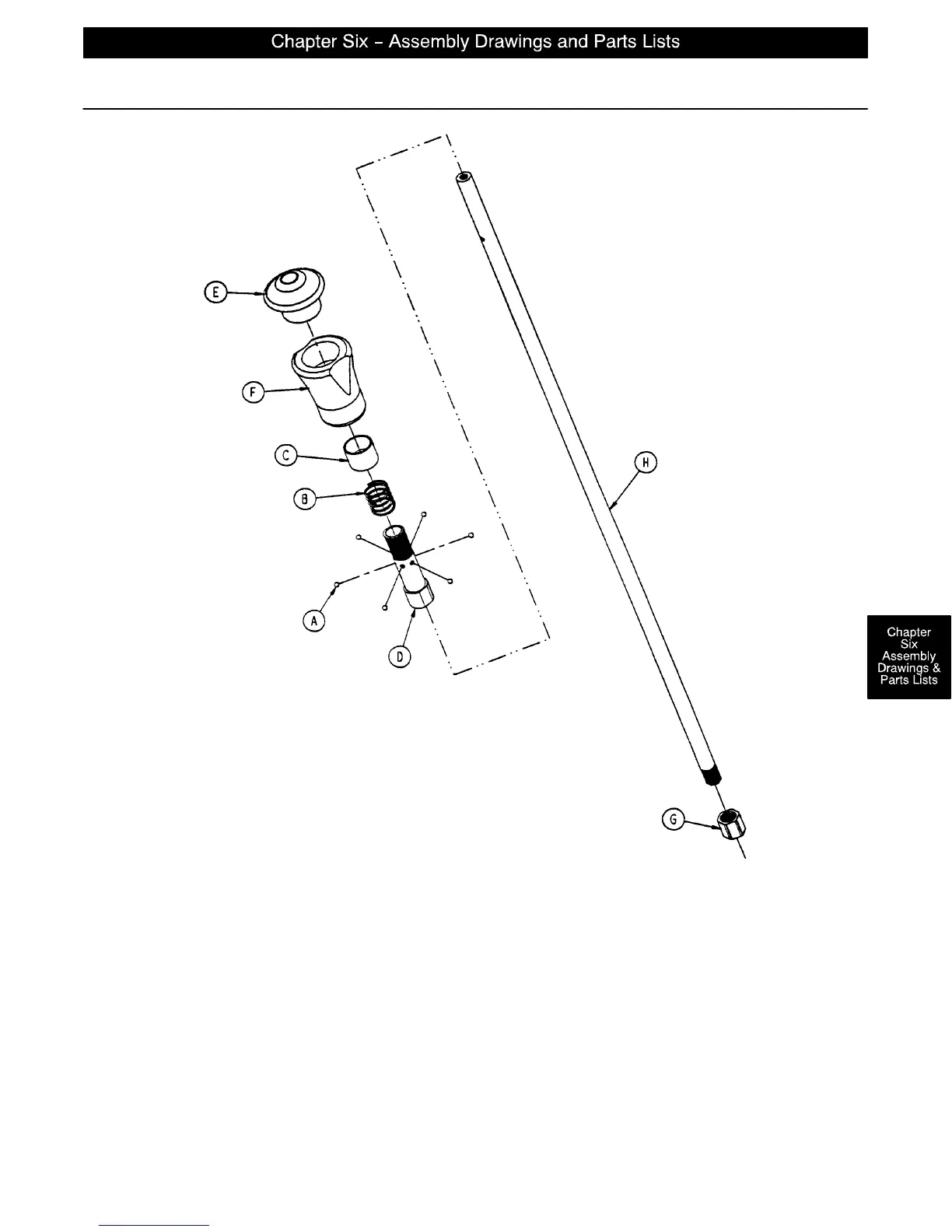

1211–110–32 Optional 3rd Stage Assembly
NOTE
Item F, part number 1010–61–18 is left hand thread.
When removing it, turn clockwise to loosen it.
Item Part No. Part Name Qty.
A31–21 Ball 6
B38–303 Compression Spring 1
C 1010–61–13 Ball Retainer 1
D 1010–61–16 Retaining Shaft 1
E 1010–61–17 Thumb Knob 1
F 1010–61–18 Hand Guard 1
G 1211–110–17 Nut 1
H 1211–110–33 3rd Extension Rod 1
