Stryker 1069 - Jack Assembly

page 6–16

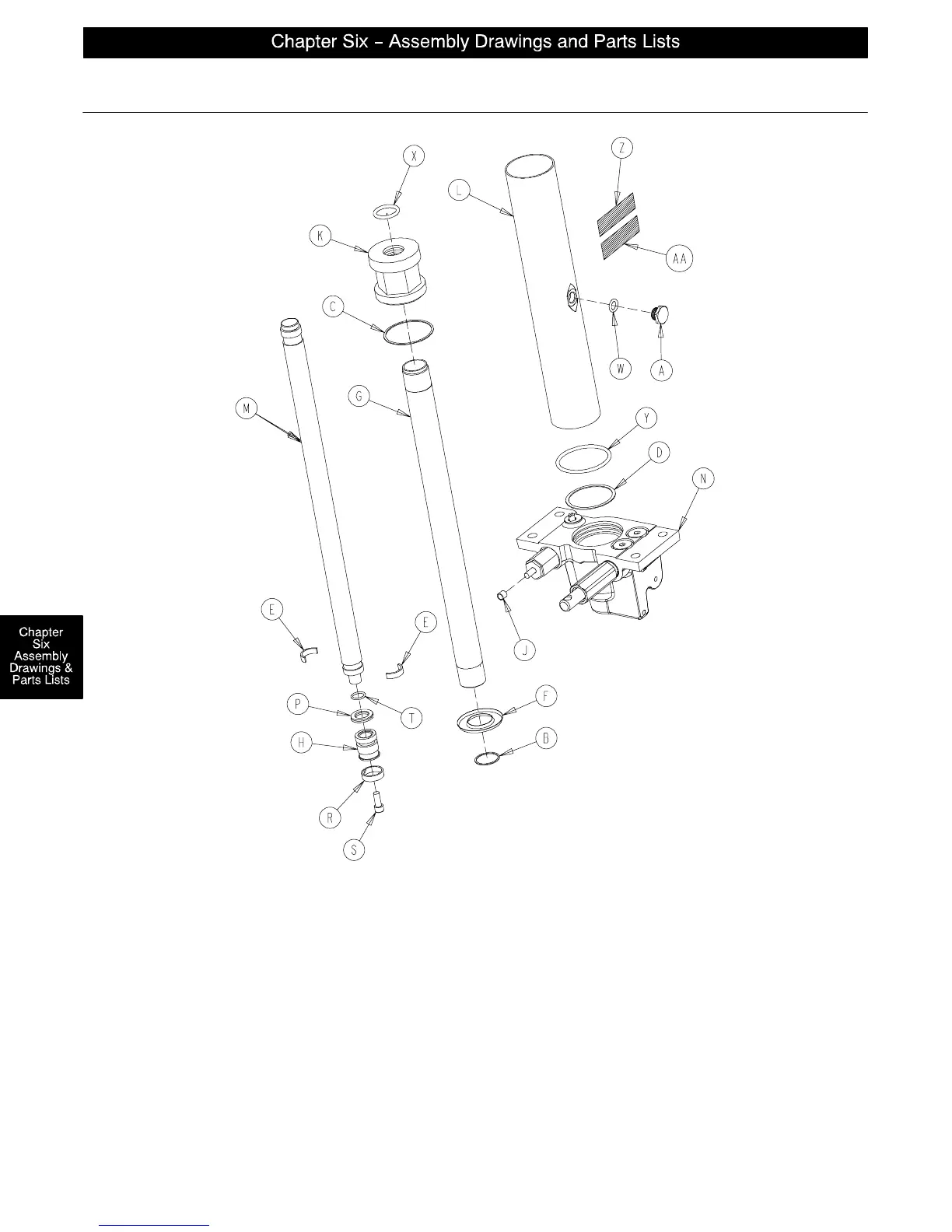

1231–70–10 Jack Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 388–100–38 Plug 1 M 715–1–325 Actuator Rod 1
B 390–1–238 Actuator Gasket 1 N (page 6–17) Jack Base Ass’y1
C 390–1–243 Gasket 1 P 926–20–161 Parker Packing 1
D 390–1–244 Base Gasket 1 R 926–20–162 Wear Ring 1
E 390–2–139 Retaining Ring 2 S 4–14 Soc. Hd. Cap Screw 1
F 715–1–320 Jack Screen 1 T 45–14 O–Ring 1
G 715–1–323 Actuator Cylinder 1 W 45–110 O–Ring 1
H 715–1–331 Piston End 1 X 45–904 O–Ring 1
J 715–1–333 Rel. Rod Stop Sleeve 1 Y 45–978 O–Ring 1
K 715–1–340 Jack Cap Assembly 1 Z 1231–70–110 Label 1
L 715–1–422 Reservoir 1 AA 921–1–252 Serial Number Label 1
