page 6–23

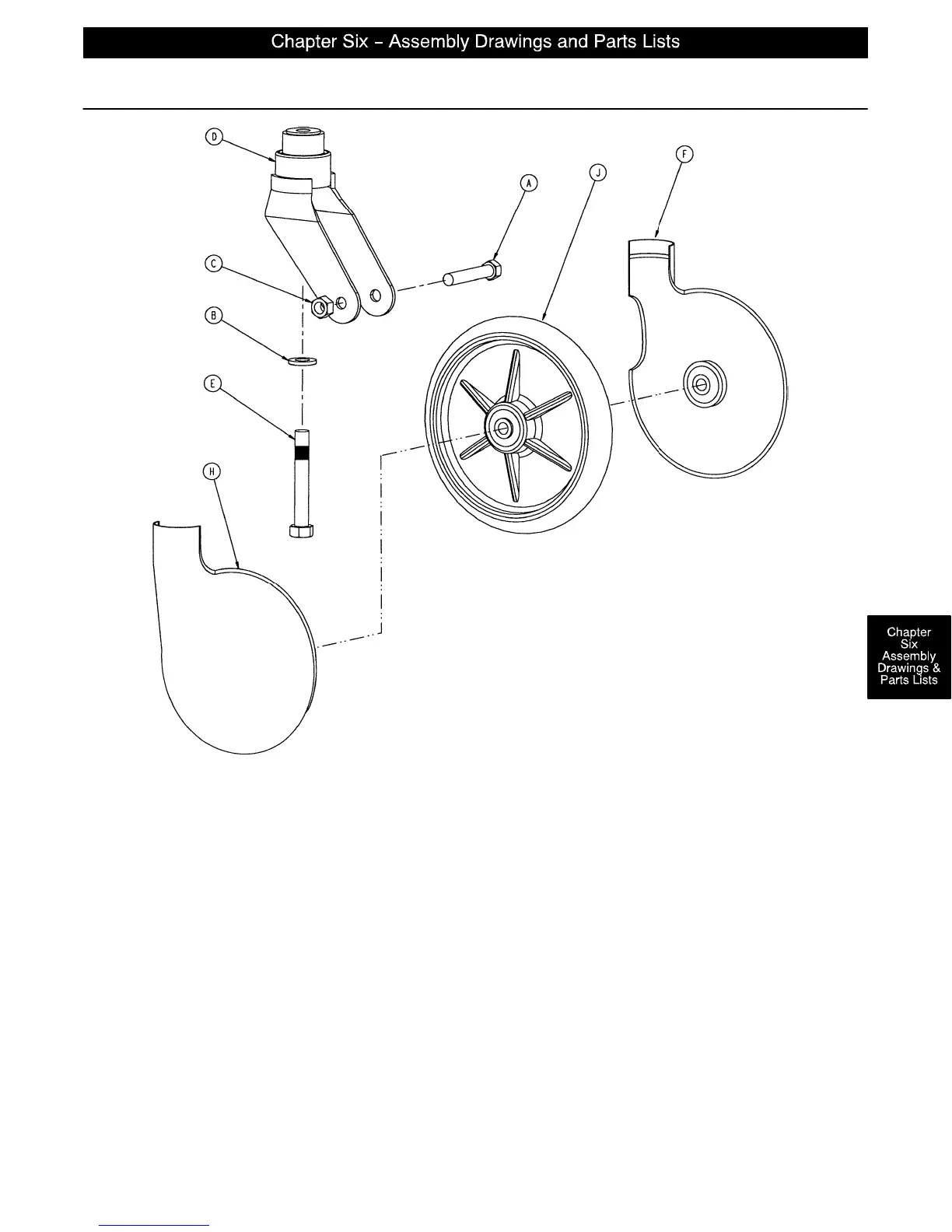

Standard Caster Assembly
Item Part No. Part Name Qty.
A3–99 Hex Hd. Cap Screw 1
B11–310 Washer 1
C16–60 Hex Nut 1
D 715–2–16 Horn Assembly 1
E 715–3–96 Hex Hd. Cap Screw 1
F 715–1–265 Wheel Cover, Right 1
H 715–1–266 Wheel Cover, Left 1
J 715–2–25 Wheel 1
715–1–158 Caster Nut (not shown) 1
p/n 715–259–400 – Kit to replace 4 standard caster assemblies with hardware – no caster covers.
p/n 715–269–400 – Kit to replace 3 standard caster assemblies and 1 steerlock caster with hardware – no
caster covers.
p/n 715–259–100 – Kit to replace 1 standard caster assembly with hardware – no caster covers.
p/n 1010–56–200 – Kit to replace both caster covers on all four wheels.
