page 6–68

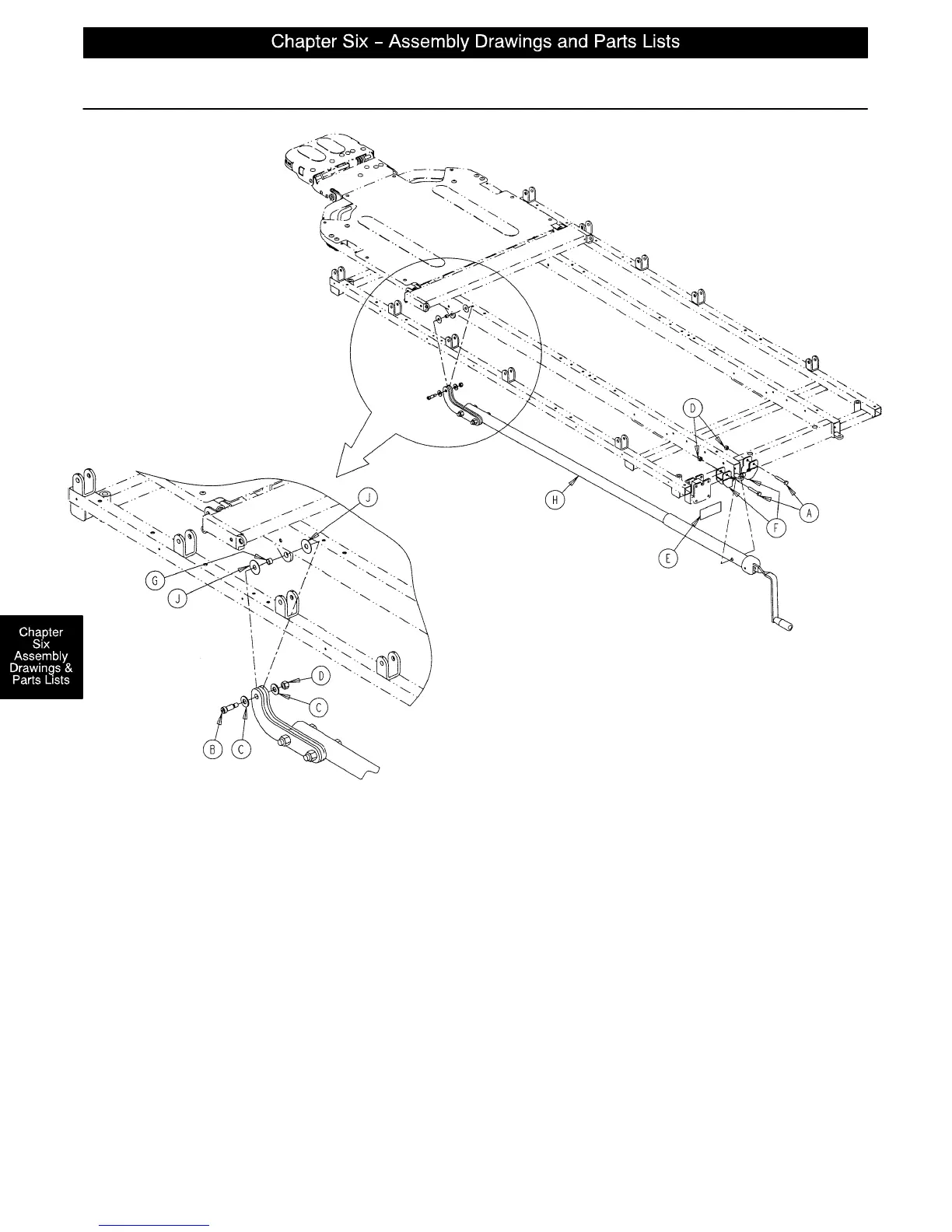

Optional Crank Fowler Assembly
Assembly part number 1069–42–20 (reference only)
Item Part No. Part Name Qty.
A3–78 Hex Hd. Cap Screw 2
B8–27 Shoulder Bolt 1
C11–3 Flat Washer 2
D16–28 Nylock Nut 3
E 946–1–64 Fowler Symbol Label 1
F 1010–34–15 Mounting Bracket Ass’y2
G 1066–33–68 Sleeve 1
H (page 6–69) Crankscrew Assembly 1
J14–19 Nylon Flat Washer 2
