page 6–102

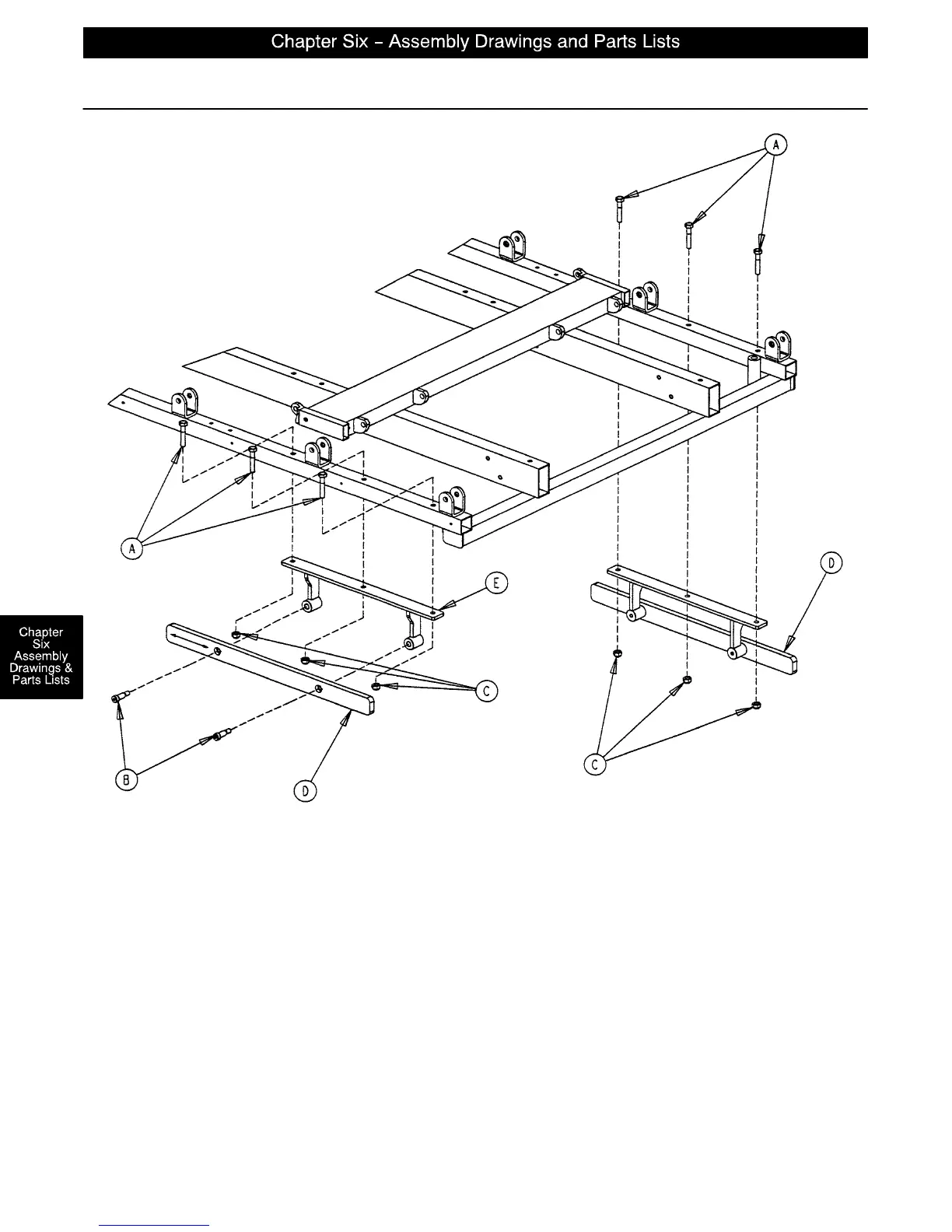

1068–266 Optional Accessory Rail Assembly
HEAD END
Item Part No. Part Name Qty.
A3–47 Hex Hd. Cap Screw 6
B8–15 Shoulder Bolt 4
C16–28 Nylock Hex Nut 6
D 1068–66–42 Option Bar Rail 2
E 1068–266–50 Mounting Bracket Weldment 2
