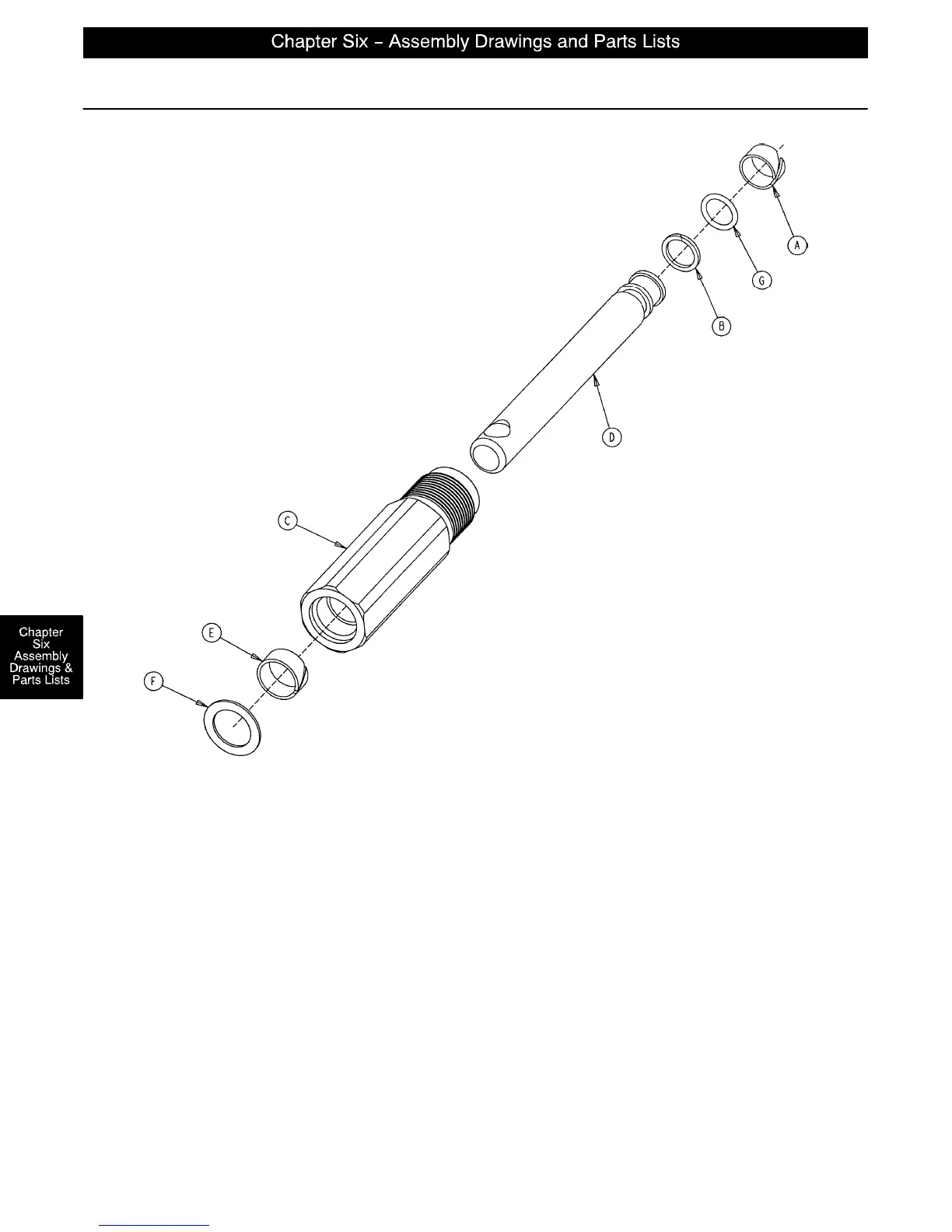

715–100–425 Jack Pump Piston Assembly
Assembly part number 715–201–325 (reference only)
Item Part No. Part Name Qty.
A 715–1–328 Piston Wear Ring 1
B 715–1–400 O–Ring Back Up 1
C 715–200–316 Pump Cylinder 1
D 715–201–318 Pump Piston 1
E 715–201–327 Cylinder Wear Ring 1
F14–50 Bearing Retainer 1
G45–110 O–Ring 1
715–1–329 Pump Seal (not shown) 1
